New to system dynamics?

Minsky is one of a family of “system dynamics” computer programs. These programs allow a dynamic model to be constructed, not by writing mathematical equations or numerous lines of computer code, but by laying out a model of a system in a block diagram, which can then simulate the system. These programs are now the main tool used by engineers to design complex products, ranging from small electrical components right up to passenger jets.

Minsky adds another means to create the dynamic equations that are needed to define monetary flows--the “Godley Table”--which is discussed in the next section for users who are experienced in system dynamics. In this section, we'll give you a quick overview of the generic system dynamics approach to building a model.

Though they differ in appearance, they all work the same way: variables in a set of equations are linked by wires to mathematical operators. What would otherwise be a long list of equations is converted into a block diagram, and the block diagram makes the causal chain in the equations explicit and visually obvious.

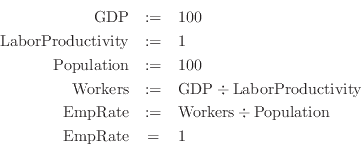

For example, say you wanted to define the rate of employment as depending on output (GDP), labor productivity and population. Then you could define a set of equations in a suitable program (like Mathcad):

$$\begin{eqnarray*} \mathrm{GDP}&:=&100\\ \mathrm{LaborProductivity}&:=&1\\ \mat... ...&\mathrm{Workers}\div\mathrm{Population}\\ \mathrm{EmpRate}&=&1 \end{eqnarray*}$$

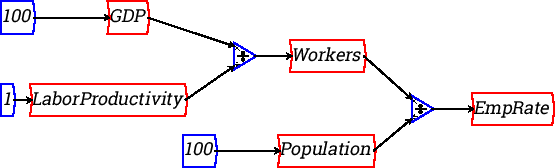

Or you could define it using a block diagram, such as Minsky:

For a simple algebraic equation like this, modern computer algebra programs like Mathcad are just as good as a block diagram programs like Vissim or Minsky. But the visual metaphor excels when you want to describe a complex causal chain.

These causal chains always involve a relationship between stocks and flows. Economists normally model stocks and flows by adding an increment to a stock. For example, the level of capital $K$ is defined as a difference equation, where capital in year $t$ is shown as being capital in year $t-1$ plus the investment that took place that year:

$$K_t=K_{t-1}+I_{t-1}$$

The problem with this approach is that in reality, capital is accumulating on a daily, or even hourly, basis. It is better to model stock as continuous quantities and for this reason, all stocks and flows in Minsky are handled instead as integral equations. The amount of capital at time $t$ is shown as the integral of net investment between time 0 and today:

$$K(t)=\int_0^t I(s)ds$$

However, rather than being shown as an equation, the relationship is shown as a diagram:

The advantages of the block diagram representation of dynamic equations over a list of equations are:

• They make the causal relationships in a complex model obvious. It takes a specialized mind to be able to see the causal relations in a large set of mathematical equations; the same equations laid out as diagrams can be read by anyone who can read a stock and flow diagram--and that's most of us;
• The block diagram paradigm makes it possible to store components of a complex block diagram in a group. For example, the fuel delivery system in a car can be treated as one group, the engine as another, the exhaust as yet another. This reduces visual complexity and also makes it possible for different components of a complex model to be designed by different groups and then “wired together” at a later stage.

For example, here's a model of a 4 cylinder engine car--one of the simple examples distributed with the program Vissim:

Programs like Vissim and Simulink have been in existence for almost 2 decades, and they are now mature products that provide everything their user-base of engineers want for modeling and analyzing complex dynamic systems. So why has Minsky been developed?
