civita::Scan Class Reference

#include <tensorOp.h>

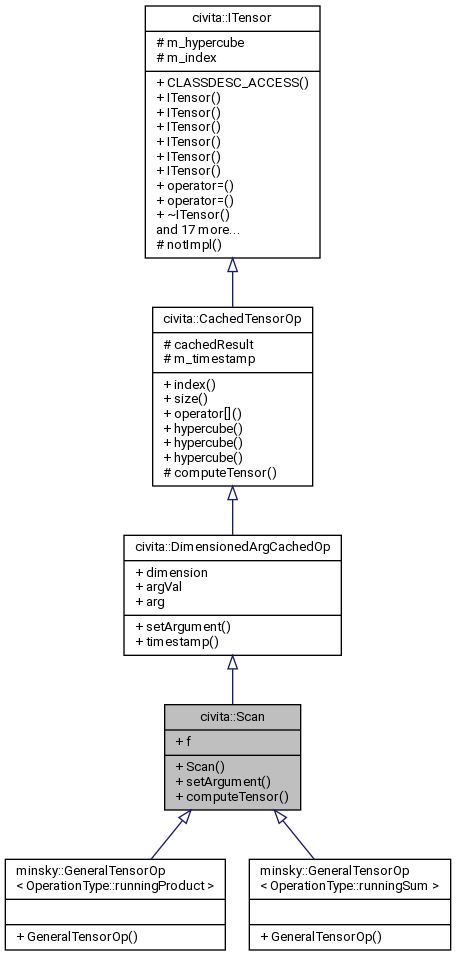

Inheritance diagram for civita::Scan:

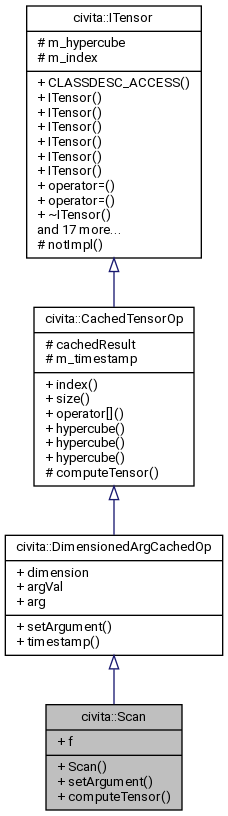

Collaboration diagram for civita::Scan:

Public Member Functions
template<class F >
	Scan (F f, const TensorPtr &arg={}, const std::string &dimName="", double av=0)
void	setArgument (const TensorPtr &arg, const ITensor::Args &args) override
void	computeTensor () const override
	computeTensor updates the above two mutable fields, but is logically const More...
Public Member Functions inherited from civita::DimensionedArgCachedOp
Timestamp	timestamp () const override
	timestamp indicating how old the dependendent data might be. Used in CachedTensorOp to determine when to invalidate the cache More...
Public Member Functions inherited from civita::CachedTensorOp
const Index &	index () const override
	the index vector - assumed to be ordered and unique More...
std::size_t	size () const override
	return number of elements in tensor - maybe less than hypercube.numElements if sparse More...
double	operator[] (std::size_t i) const override
	return or compute data at a location More...
const Hypercube &	hypercube () const override
	information describing the axes, types and labels of this tensor More...
const Hypercube &	hypercube (const Hypercube &hc) override
const Hypercube &	hypercube (Hypercube &&hc) override
Public Member Functions inherited from civita::ITensor
	CLASSDESC_ACCESS (ITensor)
	ITensor ()
	ITensor (const Hypercube &hc)
	ITensor (Hypercube &&hc)
	ITensor (const std::vector< unsigned > &dims)
	ITensor (const ITensor &)=default
	ITensor (ITensor &&)=default
ITensor &	operator= (const ITensor &)=default
ITensor &	operator= (ITensor &&)=default
virtual	~ITensor ()
std::size_t	rank () const
std::vector< unsigned >	shape () const
void	imposeDimensions (const Dimensions &dimensions)
	impose dimensions according to dimension map dimensions More...
double	atHCIndex (std::size_t hcIdx) const
	returns the data value at hypercube index hcIdx, or NaN if More...
template<class T >
std::size_t	hcIndex (const std::initializer_list< T > &indices) const
template<class T >
double	operator() (const std::initializer_list< T > &indices) const
virtual void	setArguments (const TensorPtr &, const TensorPtr &, const ITensor::Args &args={})
virtual void	setArguments (const std::vector< TensorPtr > &a, const ITensor::Args &args={"", 0})
virtual void	setArguments (const std::vector< TensorPtr > &a1, const std::vector< TensorPtr > &a2, const ITensor::Args &args={"", 0})

Public Attributes
std::function< void(double &, double, std::size_t)>	f
Public Attributes inherited from civita::DimensionedArgCachedOp
std::size_t	dimension =std::numeric_limits<std::size_t>::max()
	dimension to apply operation over. >rank = all dims More...
double	argVal =0
	op arg value, eg binsize or delta in difference op More...
TensorPtr	arg

Additional Inherited Members
Public Types inherited from civita::ITensor
using	Timestamp = std::chrono::time_point< std::chrono::high_resolution_clock >
Protected Member Functions inherited from civita::ITensor
void	notImpl () const
Protected Attributes inherited from civita::CachedTensorOp
TensorVal	cachedResult
Timestamp	m_timestamp
Protected Attributes inherited from civita::ITensor
Hypercube	m_hypercube
Index	m_index

Detailed Description

Definition at line 208 of file tensorOp.h.

Constructor & Destructor Documentation

Scan()

template<class F >

civita::Scan::Scan ( F  f, const TensorPtr &  arg = {}, const std::string &  dimName = "", double  av = 0  )

inline

Definition at line 213 of file tensorOp.h.

                                   {}, const std::string& dimName="", double av=0): f(f)
    {Scan::setArgument(arg,{dimName,av});}

Member Function Documentation

computeTensor()

void civita::Scan::computeTensor ( ) const

overridevirtual

computeTensor updates the above two mutable fields, but is logically const

Implements civita::CachedTensorOp.

Definition at line 199 of file tensorOp.cc.

References f.

  {
    if (dimension<rank())
      {
        auto argDims=arg->hypercube().dims();
        size_t stride=1;
        for (size_t j=0; j<dimension; ++j)
          stride*=argDims[j];
        if (argVal>=1 && argVal<argDims[dimension])
          // argVal is interpreted as the binning window. -ve argVal ignored
          for (size_t i=0; i<hypercube().numElements(); i+=stride*argDims[dimension])
            for (size_t j=0; j<stride; ++j)
              for (size_t j1=0; j1<argDims[dimension]*stride; j1+=stride)
                {
                  size_t k=i+j+max(ssize_t(0), ssize_t(j1-ssize_t(argVal-1)*stride));
                  cachedResult[i+j+j1]=arg->atHCIndex(i+j+j1);
                  for (; k<i+j+j1; k+=stride)
                    {
                      f(cachedResult[i+j+j1], arg->atHCIndex(k), k);
                    }
              }
        else // scan over whole dimension
          for (size_t i=0; i<hypercube().numElements(); i+=stride*argDims[dimension])
            for (size_t j=0; j<stride; ++j)
              {
                cachedResult[i+j]=arg->atHCIndex(i+j);
                for (size_t k=i+j+stride; k<i+j+stride*argDims[dimension]; k+=stride)
                  {
                    cachedResult[k] = cachedResult[k-stride];
                    f(cachedResult[k], arg->atHCIndex(k), k);
                  }
              }
          }
    else
      {
        cachedResult[0]=arg->atHCIndex(0);
        for (size_t i=1; i<hypercube().numElements(); ++i)
          {
            cachedResult[i]=cachedResult[i-1];
            f(cachedResult[i], arg->atHCIndex(i), i);
          }
      }
  }

setArgument()

void civita::Scan::setArgument ( const TensorPtr &  arg, const ITensor::Args &  args  )

inlineoverridevirtual

Reimplemented from civita::DimensionedArgCachedOp.

Definition at line 215 of file tensorOp.h.

References civita::DimensionedArgCachedOp::arg, civita::CachedTensorOp::cachedResult, and civita::DimensionedArgCachedOp::setArgument().

                                                                             {
      DimensionedArgCachedOp::setArgument(arg,args);
      if (arg)
        cachedResult.hypercube(arg->hypercube());
      // TODO - can we handle sparse data?
    }

Here is the call graph for this function:

Member Data Documentation

f

std::function<void(double&,double,std::size_t)> civita::Scan::f

Definition at line 211 of file tensorOp.h.

---

The documentation for this class was generated from the following files:

• tensor/tensorOp.h
• tensor/tensorOp.cc
