minsky::PannableTab< Base > Class Template Reference

Mixin implementing common panning functionality in tabs. More...

#include <pannableTab.h>

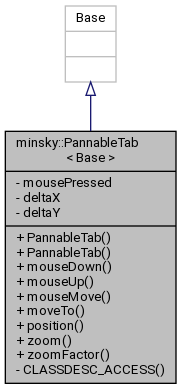

Inheritance diagram for minsky::PannableTab< Base >:

Collaboration diagram for minsky::PannableTab< Base >:

Public Member Functions
	PannableTab ()
template<class A >
	PannableTab (A &arg)
void	mouseDown (float x, float y) override
void	mouseUp (float x, float y) override
void	mouseMove (float x, float y) override
void	moveTo (float x, float y) override
std::vector< float >	position () const override
void	zoom (double x, double y, double z) override
double	zoomFactor () const override

Private Member Functions
	CLASSDESC_ACCESS (PannableTab)

Private Attributes
bool	mousePressed =false
float	deltaX
float	deltaY

Detailed Description

template<class Base>
class minsky::PannableTab< Base >

Mixin implementing common panning functionality in tabs.

Definition at line 36 of file pannableTab.h.

Constructor & Destructor Documentation

PannableTab() [1/2]

template<class Base>

minsky::PannableTab< Base >::PannableTab ( )

inline

Definition at line 42 of file pannableTab.h.

{}

PannableTab() [2/2]

template<class Base>

template<class A >

minsky::PannableTab< Base >::PannableTab ( A &  arg )

inline

Definition at line 43 of file pannableTab.h.

: Base(arg) {}

Member Function Documentation

CLASSDESC_ACCESS()

template<class Base>

minsky::PannableTab< Base >::CLASSDESC_ACCESS ( PannableTab< Base >  )

private

mouseDown()

template<class Base>

void minsky::PannableTab< Base >::mouseDown ( float  x, float  y  )

inlineoverride

Definition at line 44 of file pannableTab.h.

Referenced by minsky::PubTab::controlMouseDown(), and minsky::VariablePane::mouseDown().

    {
      deltaX=x-Base::offsx;
      deltaY=y-Base::offsy;
      mousePressed=true;
    }

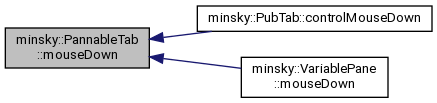

Here is the caller graph for this function:

mouseMove()

template<class Base>

void minsky::PannableTab< Base >::mouseMove ( float  x, float  y  )

inlineoverride

Definition at line 55 of file pannableTab.h.

Referenced by minsky::PannableTab< VariablePaneBase >::mouseUp().

    {
      if (mousePressed)
        {
          Base::offsx=x-deltaX;
          Base::offsy=y-deltaY;
          Base::requestRedraw();
        }
    }

Here is the caller graph for this function:

mouseUp()

template<class Base>

void minsky::PannableTab< Base >::mouseUp ( float  x, float  y  )

inlineoverride

Definition at line 50 of file pannableTab.h.

    {
      mouseMove(x,y);
      mousePressed=false;
    }

moveTo()

template<class Base>

void minsky::PannableTab< Base >::moveTo ( float  x, float  y  )

inlineoverride

Definition at line 64 of file pannableTab.h.

    {
      Base::offsx=x;
      Base::offsy=y;
      Base::requestRedraw();
    }

position()

template<class Base>

std::vector<float> minsky::PannableTab< Base >::position ( ) const

inlineoverride

Definition at line 70 of file pannableTab.h.

    {
      return {Base::offsx, Base::offsy};
    }

zoom()

template<class Base>

void minsky::PannableTab< Base >::zoom ( double  x, double  y, double  z  )

inlineoverride

Definition at line 74 of file pannableTab.h.

                                                     {
      Base::offsx=x+(Base::offsx-x)*z;
      Base::offsy=y+(Base::offsy-y)*z;
      Base::m_zoomFactor*=z;
      Base::requestRedraw();
    }

zoomFactor()

template<class Base>

double minsky::PannableTab< Base >::zoomFactor ( ) const

inlineoverride

Definition at line 81 of file pannableTab.h.

{return Base::m_zoomFactor;}

Member Data Documentation

deltaX

template<class Base>

float minsky::PannableTab< Base >::deltaX

private

Definition at line 39 of file pannableTab.h.

Referenced by minsky::PannableTab< VariablePaneBase >::mouseDown(), and minsky::PannableTab< VariablePaneBase >::mouseMove().

deltaY

template<class Base>

float minsky::PannableTab< Base >::deltaY

private

Definition at line 39 of file pannableTab.h.

Referenced by minsky::PannableTab< VariablePaneBase >::mouseDown(), and minsky::PannableTab< VariablePaneBase >::mouseMove().

mousePressed

template<class Base>

bool minsky::PannableTab< Base >::mousePressed =false

private

Definition at line 38 of file pannableTab.h.

Referenced by minsky::PannableTab< VariablePaneBase >::mouseDown(), minsky::PannableTab< VariablePaneBase >::mouseMove(), and minsky::PannableTab< VariablePaneBase >::mouseUp().

---

The documentation for this class was generated from the following file:

• model/pannableTab.h
