#include <phillipsDiagram.h>

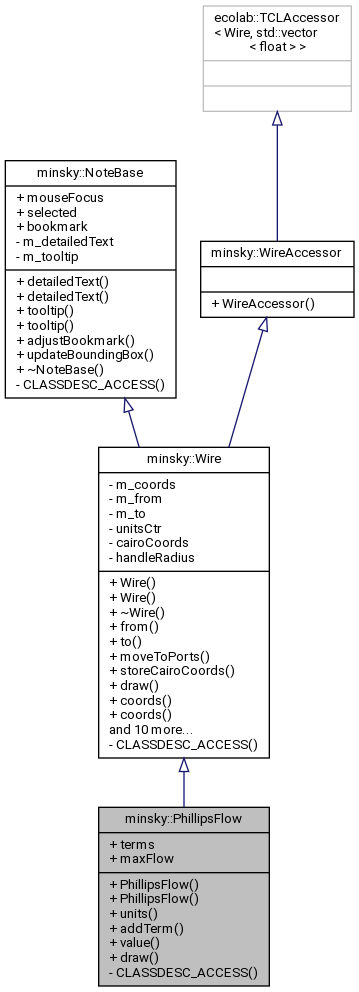

Inheritance diagram for minsky::PhillipsFlow:

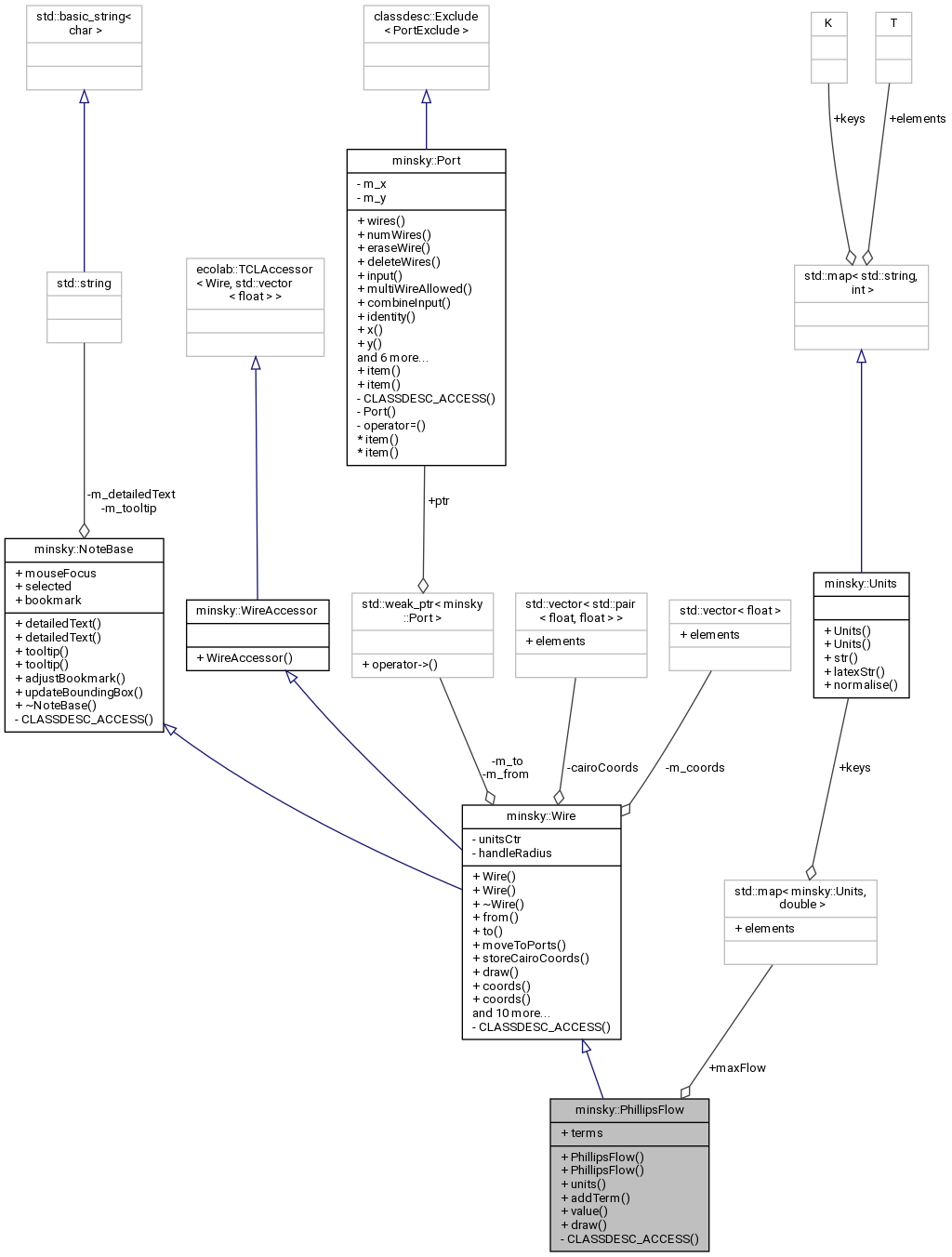

Collaboration diagram for minsky::PhillipsFlow:

Public Member Functions
	PhillipsFlow ()=default

	PhillipsFlow (const std::weak_ptr< Port > &from, const std::weak_ptr< Port > &to)

Units	units () const

void	addTerm (double coef, const std::string &name)

double	value () const

void	draw (cairo_t *)

Public Member Functions inherited from minsky::Wire
	Wire ()

	Wire (const std::weak_ptr< Port > &from, const std::weak_ptr< Port > &to, const std::vector< float > &a_coords=std::vector< float >())

	~Wire ()

std::shared_ptr< Port >	from () const

std::shared_ptr< Port >	to () const

void	moveToPorts (const std::shared_ptr< Port > &from, const std::shared_ptr< Port > &to)
	switch ports this wire links to More...

void	storeCairoCoords (cairo_t *cairo) const
	stash all the internal cairo coordinates along a wire More...

void	draw (cairo_t *cairo, bool reverseArrow=false) const
	draw this item into a cairo context More...

std::vector< float >	coords () const
	display coordinates More...

std::vector< float >	coords (const std::vector< float > &coords)

bool	near (float x, float y) const
	returns true if coordinates are near this wire More...

unsigned	nearestHandle (float x, float y)
	returns the index into the coordinate list if x,y is close to it. Otherwise inserts midpoints and returns that. Wire endpoints are not returned More...

void	insertHandle (unsigned position, float x, float y)

void	deleteHandle (float x, float y)

void	editHandle (unsigned position, float x, float y)

void	straighten ()

bool	visible () const
	whether this wire is visible or not More...

void	moveIntoGroup (Group &dest)
	move this from its group into dest More...

void	split ()
	splits wires crossing group boundaries More...

Units	units (bool) const
	units (dimensional analysis) of data flowing across wire More...

Public Member Functions inherited from minsky::NoteBase
virtual std::string const &	detailedText () const

virtual std::string const &	detailedText (const std::string &x)

virtual std::string const &	tooltip () const

virtual std::string const &	tooltip (const std::string &x)

virtual void	adjustBookmark () const
	adjust bookmark list to reflect current configuration More...

virtual void	updateBoundingBox ()

virtual	~NoteBase ()=default

Public Attributes
classdesc::Exclude< std::vector< std::pair< double, FlowVar > > >	terms

Public Attributes inherited from minsky::NoteBase
bool	mouseFocus =false
	true if target of a mouseover More...

bool	selected =false
	true if selected for cut, copy or group operation More...

bool	bookmark =false
	Is this item also a bookmark? More...

Static Public Attributes
static std::map< Units, double >	maxFlow

Private Member Functions
	CLASSDESC_ACCESS (PhillipsFlow)

Detailed Description

Definition at line 35 of file phillipsDiagram.h.

Constructor & Destructor Documentation

◆ PhillipsFlow() [1/2]

minsky::PhillipsFlow::PhillipsFlow ( )

default

◆ PhillipsFlow() [2/2]

minsky::PhillipsFlow::PhillipsFlow	(	const std::weak_ptr< Port > &	from,
		const std::weak_ptr< Port > &	to
	)

inline

Definition at line 40 of file phillipsDiagram.h.

40 :

41 Wire(from,to) {}

minsky::Wire::from

std::shared_ptr< Port > from() const

Definition: wire.h:59

minsky::Wire::to

std::shared_ptr< Port > to() const

Definition: wire.h:60

minsky::Wire::Wire

Wire()

Definition: wire.h:54

Member Function Documentation

◆ addTerm()

void minsky::PhillipsFlow::addTerm	(	double	coef,
		const std::string &	name
	)

inline

Definition at line 49 of file phillipsDiagram.h.

References terms.

49 {terms.emplace_back(coef, name);}

minsky::PhillipsFlow::terms

classdesc::Exclude< std::vector< std::pair< double, FlowVar > > > terms

Definition: phillipsDiagram.h:43

◆ CLASSDESC_ACCESS()

minsky::PhillipsFlow::CLASSDESC_ACCESS ( PhillipsFlow )

private

◆ draw()

void minsky::PhillipsFlow::draw ( cairo_t * cairo )

Definition at line 33 of file phillipsDiagram.cc.

References minsky::Wire::draw(), maxFlow, units(), and value().

   {
     const CairoSave cs(cairo);
     const double value=this->value();
     double& maxV=maxFlow[units()];
     if (abs(value)>maxV) maxV=abs(value);
     double lineWidth=1;
     if (maxV>0)
       {
         const double lw=5*abs(value)/maxV;
         lineWidth=std::max(1.0, lw);
         static const double dashLength=3;
         if (lw<1)
           cairo_set_dash(cairo,&dashLength,1,0);
       }
     cairo_set_line_width(cairo, lineWidth);
     Wire::draw(cairo,value>=0);
   }

Here is the call graph for this function:

◆ units()

Units minsky::PhillipsFlow::units ( ) const

inline

Definition at line 45 of file phillipsDiagram.h.

References terms.

Referenced by draw().

                         {
       if (terms.empty()) return {};
       return terms.front().second.units();
     }

Here is the caller graph for this function:

◆ value()

double minsky::PhillipsFlow::value ( ) const

inline

Definition at line 50 of file phillipsDiagram.h.

References terms.

Referenced by draw().

                          {
       double r=0;
       for (auto& i: terms)
         r+=i.first*i.second.value();
       return r;
     }

Here is the caller graph for this function:

Member Data Documentation

◆ maxFlow

std::map< Units, double > minsky::PhillipsFlow::maxFlow

static

Definition at line 42 of file phillipsDiagram.h.

Referenced by draw().

◆ terms

classdesc::Exclude<std::vector<std::pair<double, FlowVar> > > minsky::PhillipsFlow::terms

Definition at line 43 of file phillipsDiagram.h.

Referenced by addTerm(), units(), and value().

The documentation for this class was generated from the following files:

model/phillipsDiagram.h
model/phillipsDiagram.cc
