minsky::WindowInformation Class Reference

#include <windowInformation.h>

Inheritance diagram for minsky::WindowInformation:

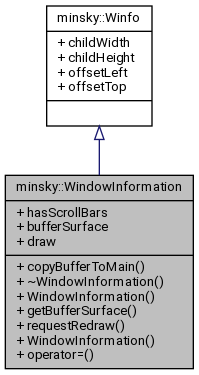

Collaboration diagram for minsky::WindowInformation:

Public Member Functions
void	copyBufferToMain ()
	~WindowInformation ()
	WindowInformation (uint64_t parentWin, int left, int top, int cWidth, int cHeight, double scalingFactor, bool hasScrollBars, const std::function< void()> &draw)
const ecolab::cairo::SurfacePtr &	getBufferSurface () const
void	requestRedraw ()
	WindowInformation (const WindowInformation &)=delete
void	operator= (const WindowInformation &)=delete

Public Attributes
const bool	hasScrollBars =false
ecolab::cairo::SurfacePtr	bufferSurface
std::function< void()>	draw
Public Attributes inherited from minsky::Winfo
int	childWidth
int	childHeight
int	offsetLeft
int	offsetTop

Friends
class	RenderNativeWindow

Detailed Description

Definition at line 68 of file windowInformation.h.

Constructor & Destructor Documentation

~WindowInformation()

minsky::WindowInformation::~WindowInformation

(

)

Definition at line 96 of file windowInformation.cc.

  {
    bufferSurface.reset();
#ifdef USE_WIN32_SURFACE
    SelectObject(hdcMem, hOld);
    DeleteObject(hbmMem);
    DeleteDC(hdcMem);
    SetWindowLongPtrA(childWindowId, GWLP_USERDATA, 0);
    PostMessageA(childWindowId,WM_CLOSE,0,0);
#elif defined(MAC_OSX_TK)
#elif defined(USE_X11)
    XFreeGC(display, graphicsContext);
    XDestroyWindow(display, childWindowId);
    XDestroyWindow(display, bufferWindowId);
#endif
  }

WindowInformation() [1/2]

minsky::WindowInformation::WindowInformation	(	uint64_t	parentWin,
		int	left,
		int	top,
		int	cWidth,
		int	cHeight,
		double	scalingFactor,
		bool	hasScrollBars,
		const std::function< void()> &	draw
	)

WindowInformation() [2/2]

minsky::WindowInformation::WindowInformation ( const WindowInformation &  )

delete

Member Function Documentation

copyBufferToMain()

void minsky::WindowInformation::copyBufferToMain

(

)

Definition at line 118 of file windowInformation.cc.

References minsky::anonymous_namespace{windowInformation.cc}::blit().

  {
    cairo_surface_flush(bufferSurface->surface());
#ifdef USE_WIN32_SURFACE
    InvalidateRect(childWindowId,nullptr,true);
    PostMessageA(childWindowId,WM_PAINT,0,0);
#elif defined(USE_X11)
    try {
      blit(*this,0,0,childWidth,childHeight);
    }
    catch (...) {}
    return;

    XEvent event;
    XExposeEvent& expose=event.xexpose;
    expose.type=Expose;
    expose.x=expose.y=0;
    expose.width=childWidth;
    expose.height=childHeight;
    expose.window=childWindowId;
    expose.display=display;
    expose.count=0;
    expose.serial=0;
    try
      {
        XSendEvent(display,childWindowId,false,ExposureMask,&event);
      }
    catch (...) {}
#endif
  }

Here is the call graph for this function:

getBufferSurface()

const ecolab::cairo::SurfacePtr & minsky::WindowInformation::getBufferSurface

(

)

const

Definition at line 113 of file windowInformation.cc.

  {
    return bufferSurface;
  }

operator=()

void minsky::WindowInformation::operator= ( const WindowInformation &  )

delete

requestRedraw()

void minsky::WindowInformation::requestRedraw

(

)

Definition at line 303 of file windowInformation.cc.

  {
#ifdef MAC_OSX_TK
    nsContext.requestRedraw();
#endif
  }

Friends And Related Function Documentation

RenderNativeWindow

friend class RenderNativeWindow

friend

Definition at line 70 of file windowInformation.h.

Member Data Documentation

bufferSurface

ecolab::cairo::SurfacePtr minsky::WindowInformation::bufferSurface

Definition at line 87 of file windowInformation.h.

Referenced by CairoView::drawRect:.

draw

std::function<void()> minsky::WindowInformation::draw

Definition at line 88 of file windowInformation.h.

Referenced by CairoView::drawRect:.

hasScrollBars

const bool minsky::WindowInformation::hasScrollBars =false

Definition at line 86 of file windowInformation.h.

Referenced by CairoView::drawRect:, and minsky::NSContext::NSContext().

---

The documentation for this class was generated from the following files:

• model/windowInformation.h
• model/windowInformation.cc
