minsky::Correlation Struct Reference

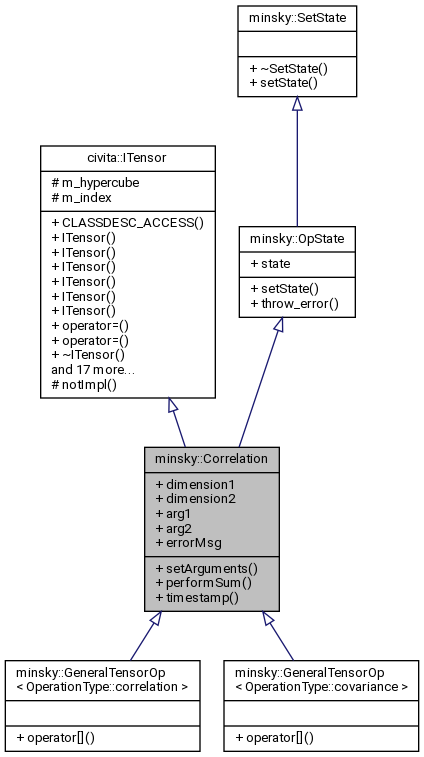

Inheritance diagram for minsky::Correlation:

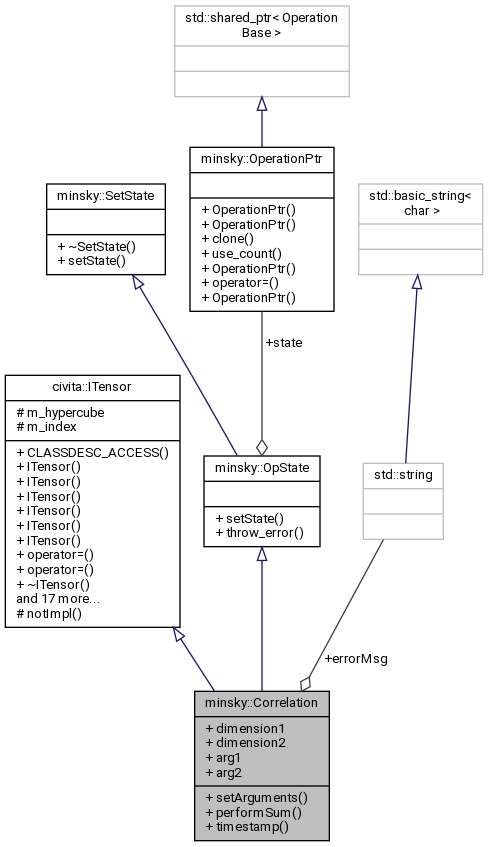

Collaboration diagram for minsky::Correlation:

Public Member Functions
void	setArguments (const TensorPtr &a1, const TensorPtr &a2, const ITensor::Args &args) override
template<class F >
void	performSum (F f, size_t idx) const
Timestamp	timestamp () const override
	timestamp indicating how old the dependendent data might be. Used in CachedTensorOp to determine when to invalidate the cache More...
Public Member Functions inherited from civita::ITensor
	CLASSDESC_ACCESS (ITensor)
	ITensor ()
	ITensor (const Hypercube &hc)
	ITensor (Hypercube &&hc)
	ITensor (const std::vector< unsigned > &dims)
	ITensor (const ITensor &)=default
	ITensor (ITensor &&)=default
ITensor &	operator= (const ITensor &)=default
ITensor &	operator= (ITensor &&)=default
virtual	~ITensor ()
virtual const Hypercube &	hypercube () const
	information describing the axes, types and labels of this tensor More...
virtual const Hypercube &	hypercube (const Hypercube &hc)
virtual const Hypercube &	hypercube (Hypercube &&hc)
std::size_t	rank () const
std::vector< unsigned >	shape () const
void	imposeDimensions (const Dimensions &dimensions)
	impose dimensions according to dimension map dimensions More...
virtual const Index &	index () const
	the index vector - assumed to be ordered and unique More...
virtual double	operator[] (std::size_t) const =0
	return or compute data at a location More...
virtual std::size_t	size () const
	return number of elements in tensor - maybe less than hypercube.numElements if sparse More...
double	atHCIndex (std::size_t hcIdx) const
	returns the data value at hypercube index hcIdx, or NaN if More...
template<class T >
std::size_t	hcIndex (const std::initializer_list< T > &indices) const
template<class T >
double	operator() (const std::initializer_list< T > &indices) const
virtual void	setArgument (const TensorPtr &, const ITensor::Args &args={"", 0})
virtual void	setArguments (const std::vector< TensorPtr > &a, const ITensor::Args &args={"", 0})
virtual void	setArguments (const std::vector< TensorPtr > &a1, const std::vector< TensorPtr > &a2, const ITensor::Args &args={"", 0})
Public Member Functions inherited from minsky::OpState
void	setState (const OperationPtr &s) override
void	throw_error (const std::string &msg) const
Public Member Functions inherited from minsky::SetState
virtual	~SetState ()

Public Attributes
int	dimension1
int	dimension2
TensorPtr	arg1
TensorPtr	arg2
string	errorMsg
Public Attributes inherited from minsky::OpState
OperationPtr	state

Additional Inherited Members
Public Types inherited from civita::ITensor
using	Timestamp = std::chrono::time_point< std::chrono::high_resolution_clock >
Protected Member Functions inherited from civita::ITensor
void	notImpl () const
Protected Attributes inherited from civita::ITensor
Hypercube	m_hypercube
Index	m_index

Detailed Description

Definition at line 929 of file minskyTensorOps.cc.

Member Function Documentation

performSum()

template<class F >

void minsky::Correlation::performSum ( F  f, size_t  idx  ) const

inline

Definition at line 1002 of file minskyTensorOps.cc.

References f, and minsky::anonymous_namespace{userFunction.cc}::isfinite().

    {
      if (!errorMsg.empty()) throw_error(errorMsg);
      auto splitted=hypercube().splitIndex(idx);
      auto splitIndexIterator=splitted.begin();

      auto computeIndexAndStride=[&](size_t& lineal, size_t& stride, size_t dimension, const vector<unsigned>& dims) {
        lineal=0; stride=1;
        for (size_t i=0, s=1; i<dims.size(); s*=dims[i], ++i)
          if (i!=dimension)
            lineal+=*splitIndexIterator++ * s;
          else
            stride=s;
      };

      size_t arg1Lineal, arg1Stride, arg2Lineal, arg2Stride;
      computeIndexAndStride(arg1Lineal, arg1Stride, dimension1, arg1->hypercube().dims());
      computeIndexAndStride(arg2Lineal, arg2Stride, dimension2, arg2->hypercube().dims());

      for (size_t i=0; i<arg1->hypercube().xvectors[dimension1].size(); ++i)
        {
          auto x=arg1->atHCIndex(arg1Lineal+i*arg1Stride);
          auto y=arg2->atHCIndex(arg2Lineal+i*arg2Stride);
          if (isfinite(x) && isfinite(y)) f(x,y);
        }

    }

Here is the call graph for this function:

setArguments()

void minsky::Correlation::setArguments ( const TensorPtr &  a1, const TensorPtr &  a2, const ITensor::Args &  args  )

inlineoverridevirtual

Reimplemented from civita::ITensor.

Definition at line 934 of file minskyTensorOps.cc.

References civita::ITensor::Args::dimension.

    {
      arg1=a1? a1: a2;
      arg2=a2? a2: a1;
      if (!arg1 || !arg2) return;
      errorMsg="";

      Hypercube hc;
      set<string> dimNames; // for ensuring dimension names are unique
      switch (arg1->rank())
        {
        case 0:
          errorMsg="covariance or ρ needs at least rank 1 arguments";
          return;
        case 1:
          dimension1=0;
          break;
        default:
          dimension1=-1;
          for (auto& xv:arg1->hypercube().xvectors)
            if (xv.name==args.dimension)
              dimension1=&xv-arg1->hypercube().xvectors.data();
            else
              {
                hc.xvectors.push_back(xv);
                dimNames.insert(xv.name);
              }
          break;
        }

      switch (arg2->rank())
        {
        case 0:
          errorMsg="covariance or ρ needs at least rank 1 arguments";
          return;
        case 1:
          dimension2=0;
          break;
        default:
          dimension2=-1;
          for (auto& xv:arg2->hypercube().xvectors)
            if (xv.name==args.dimension)
              dimension2=&xv-arg2->hypercube().xvectors.data();
            else
              {
                hc.xvectors.push_back(xv);
                if (!dimNames.insert(xv.name).second)
                  hc.xvectors.back().name+="'"; // ensure dimension names are unique
              }
          break;
        }

      if (dimension1<0 || dimension2<0)
        {
          errorMsg="dimension "+args.dimension+" not found";
          return;
        }
      if (arg1->hypercube().xvectors[dimension1].size() != arg2->hypercube().xvectors[dimension2].size())
        {
          errorMsg="arguments not conformant";
          return;
        }

      hypercube(hc);

    }

timestamp()

Timestamp minsky::Correlation::timestamp ( ) const

inlineoverridevirtual

timestamp indicating how old the dependendent data might be. Used in CachedTensorOp to determine when to invalidate the cache

Implements civita::ITensor.

Definition at line 1029 of file minskyTensorOps.cc.

    {return max(arg1->timestamp(), arg2->timestamp());}

Member Data Documentation

arg1

TensorPtr minsky::Correlation::arg1

Definition at line 932 of file minskyTensorOps.cc.

arg2

TensorPtr minsky::Correlation::arg2

Definition at line 932 of file minskyTensorOps.cc.

dimension1

int minsky::Correlation::dimension1

Definition at line 931 of file minskyTensorOps.cc.

dimension2

int minsky::Correlation::dimension2

Definition at line 931 of file minskyTensorOps.cc.

errorMsg

string minsky::Correlation::errorMsg

Definition at line 933 of file minskyTensorOps.cc.

---

The documentation for this struct was generated from the following file:

• engine/minskyTensorOps.cc
