minsky::PortExclude Struct Reference

components of Port excluded from reflection More...

#include <port.h>

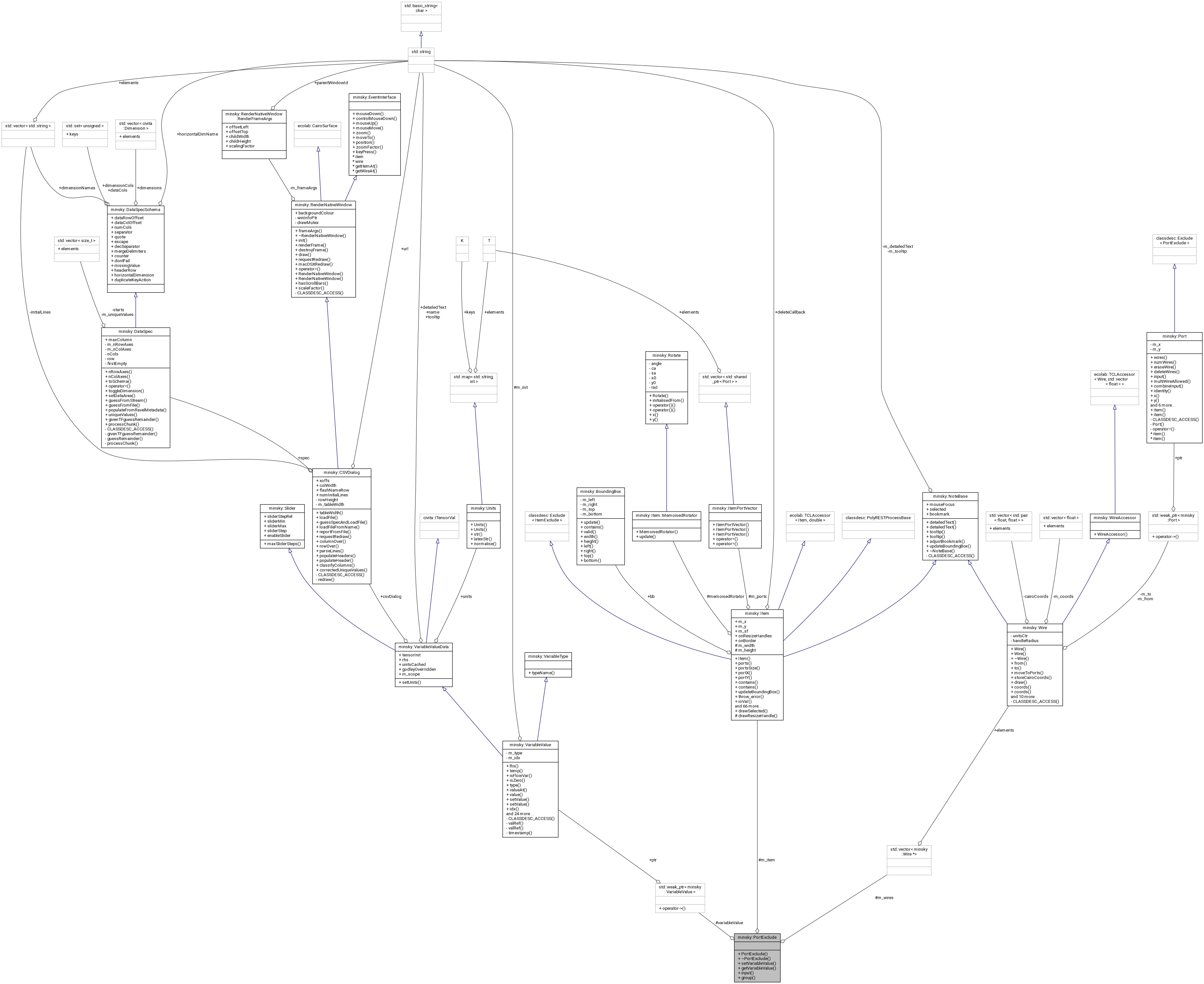

Collaboration diagram for minsky::PortExclude:

Public Member Functions
	PortExclude (const Item &item)
virtual	~PortExclude ()=default
void	setVariableValue (const std::shared_ptr< VariableValue > &v)
	sets the VariableValue associated with this port. Only for output ports More...
std::shared_ptr< VariableValue >	getVariableValue () const
	returns the variableValue associated with this port. May be null if not applicable More...
virtual bool	input () const =0
GroupPtr	group () const

Protected Attributes
Item &	m_item
std::weak_ptr< VariableValue >	variableValue
std::vector< Wire * >	m_wires

Detailed Description

components of Port excluded from reflection

Definition at line 36 of file port.h.

Constructor & Destructor Documentation

PortExclude()

minsky::PortExclude::PortExclude ( const Item &  item )

inline

Definition at line 39 of file port.h.

: m_item(const_cast<Item&>(item)) {}

~PortExclude()

virtual minsky::PortExclude::~PortExclude ( )

virtualdefault

Member Function Documentation

getVariableValue()

shared_ptr< VariableValue > minsky::PortExclude::getVariableValue

(

)

const

returns the variableValue associated with this port. May be null if not applicable

Definition at line 114 of file port.cc.

                                                                {
    if (input() && !m_wires.empty())
      return m_wires[0]->from()->getVariableValue();
    return variableValue.lock();
  }

group()

GroupPtr minsky::PortExclude::group

(

)

const

Definition at line 55 of file port.cc.

  {
    return m_item.group.lock();
  }

input()

virtual bool minsky::PortExclude::input ( ) const

pure virtual

setVariableValue()

void minsky::PortExclude::setVariableValue

(

const std::shared_ptr< VariableValue > &

v

)

sets the VariableValue associated with this port. Only for output ports

sets the VariableValue associated with this port

Definition at line 86 of file port.cc.

                                                                          {
    if (!input())
      variableValue=v;
  }

Member Data Documentation

m_item

Item& minsky::PortExclude::m_item

protected

Definition at line 48 of file port.h.

m_wires

std::vector<Wire*> minsky::PortExclude::m_wires

protected

Definition at line 50 of file port.h.

variableValue

std::weak_ptr<VariableValue> minsky::PortExclude::variableValue

protected

Definition at line 49 of file port.h.

---

The documentation for this struct was generated from the following files:

• model/port.h
• model/port.cc
