minsky::Slider Struct Reference

data structure supporting sliders - shared between constant operations and variables More...

#include <slider.h>

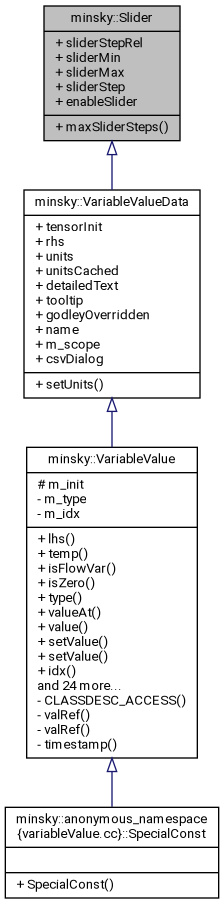

Inheritance diagram for minsky::Slider:

Collaboration diagram for minsky::Slider:

Public Member Functions
double	maxSliderSteps () const
	ensure there are at most 10000 steps between sliderMin and Max. see ticket 1255. More...

Public Attributes
bool	sliderStepRel =false
double	sliderMin =std::numeric_limits<double>::max()
double	sliderMax =-sliderMin
double	sliderStep =0
bool	enableSlider =true

Detailed Description

data structure supporting sliders - shared between constant operations and variables

Definition at line 28 of file slider.h.

Member Function Documentation

maxSliderSteps()

double minsky::Slider::maxSliderSteps ( ) const

inline

ensure there are at most 10000 steps between sliderMin and Max. see ticket 1255.

Definition at line 38 of file slider.h.

References minsky::anonymous_namespace{userFunction.cc}::isfinite(), sliderMax, sliderMin, and sliderStep.

                                  {
      if (!isfinite(sliderStep) || sliderMax-sliderMin > 1.0e04*sliderStep) return (sliderMax-sliderMin)/1.0e04;
      return sliderStep;
    }

Here is the call graph for this function:

Member Data Documentation

enableSlider

bool minsky::Slider::enableSlider =true

Definition at line 35 of file slider.h.

sliderMax

double minsky::Slider::sliderMax =-sliderMin

Definition at line 34 of file slider.h.

Referenced by maxSliderSteps().

sliderMin

double minsky::Slider::sliderMin =std::numeric_limits<double>::max()

Definition at line 33 of file slider.h.

Referenced by maxSliderSteps().

sliderStep

double minsky::Slider::sliderStep =0

Definition at line 34 of file slider.h.

Referenced by maxSliderSteps().

sliderStepRel

bool minsky::Slider::sliderStepRel =false

sliderStep is relative to the range [sliderMin,sliderMax]

Definition at line 30 of file slider.h.

---

The documentation for this struct was generated from the following file:

• engine/slider.h
