minsky::anonymous_namespace{minsky.cc}::Network Struct Reference

Inheritance diagram for minsky::anonymous_namespace{minsky.cc}::Network:

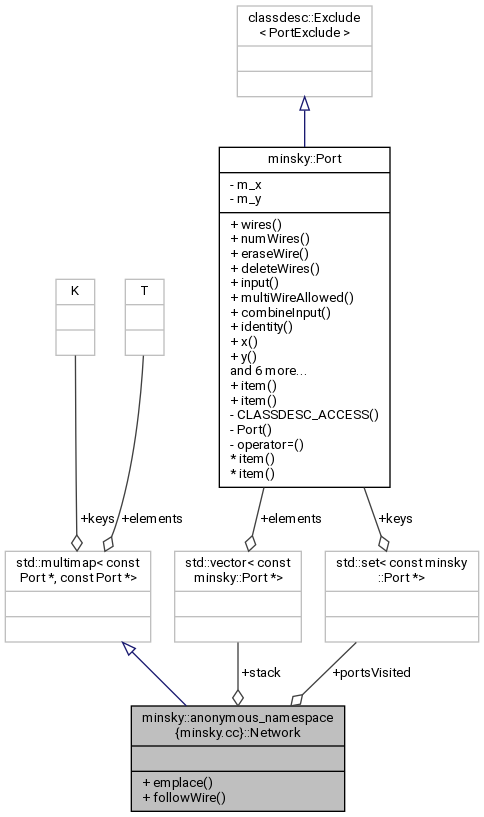

Collaboration diagram for minsky::anonymous_namespace{minsky.cc}::Network:

Public Member Functions
void	emplace (Port *x, Port *y)
bool	followWire (const Port *p)

Public Attributes
set< const Port * >	portsVisited
vector< const Port * >	stack

Detailed Description

Definition at line 1130 of file minsky.cc.

Member Function Documentation

emplace()

void minsky::anonymous_namespace{minsky.cc}::Network::emplace ( Port *  x, Port *  y  )

inline

Definition at line 1134 of file minsky.cc.

      {multimap<const Port*,const Port*>::emplace(x,y);}

followWire()

bool minsky::anonymous_namespace{minsky.cc}::Network::followWire ( const Port *  p )

inline

Definition at line 1137 of file minsky.cc.

References minsky::cminsky(), minsky::Minsky::displayErrorItem(), and minsky::Port::item().

      {
        if (!portsVisited.insert(p).second)
          { //traverse finished, check for cycle along branch
            if (std::find(stack.begin(), stack.end(), p) != stack.end())
              {
                cminsky().displayErrorItem(p->item());
                return true;
              }
            return false;
          }
        stack.push_back(p);
        const pair<iterator,iterator> range=equal_range(p);
        for (iterator i=range.first; i!=range.second; ++i)
          if (followWire(i->second))
            return true;
        stack.pop_back();
        return false;
      }

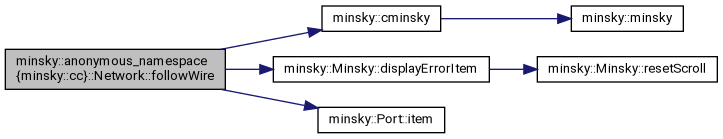

Here is the call graph for this function:

Member Data Documentation

portsVisited

set<const Port*> minsky::anonymous_namespace{minsky.cc}::Network::portsVisited

Definition at line 1132 of file minsky.cc.

stack

vector<const Port*> minsky::anonymous_namespace{minsky.cc}::Network::stack

Definition at line 1133 of file minsky.cc.

---

The documentation for this struct was generated from the following file:

• model/minsky.cc
