Inheritance diagram for minsky::anonymous_namespace{operation.cc}::MaxInputPort:

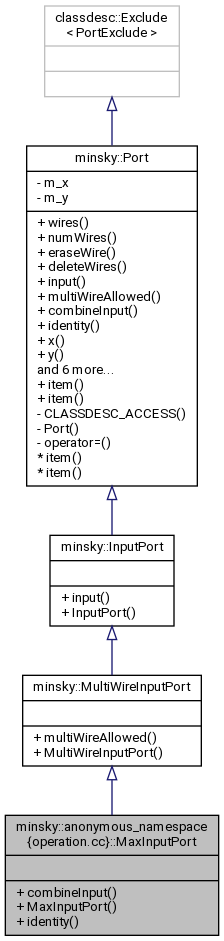

Collaboration diagram for minsky::anonymous_namespace{operation.cc}::MaxInputPort:

Public Member Functions
void	combineInput (double &x, double y) const override
	combine two input wires More...

	MaxInputPort (Item &item)

double	identity () const override
	input port value if no wire attached More...

Public Member Functions inherited from minsky::MultiWireInputPort
bool	multiWireAllowed () const override
	true if multiple wires are allowed to connect to an input port, such as an input port of an add operation. Irrelevant, otherwise More...

	MultiWireInputPort (Item &item)

Public Member Functions inherited from minsky::InputPort
bool	input () const override
	true if input port More...

	InputPort (Item &item)

Public Member Functions inherited from minsky::Port
std::vector< Wire * > const &	wires () const
	returns a vector of weak references to the wires attached to this port More...

std::size_t	numWires () const

void	eraseWire (Wire *)
	remove wire from wires. No ownership passed. More...

void	deleteWires ()
	delete all attached wires More...

float	x () const

float	y () const

void	moveTo (float x, float y)

	Port (Item &item)

	~Port ()

double	value () const
	value associated with this port More...

Units	units (bool) const

Units	checkUnits () const
	dimensional analysis with consistency check More...

Item &	item ()
	owner of this port More...

const Item &	item () const
	owner of this port More...

Detailed Description

Definition at line 59 of file operation.cc.

Constructor & Destructor Documentation

◆ MaxInputPort()

minsky::anonymous_namespace{operation.cc}::MaxInputPort::MaxInputPort ( Item & item )

inline

Definition at line 62 of file operation.cc.

62 : MultiWireInputPort(item) {}

minsky::MultiWireInputPort::MultiWireInputPort

MultiWireInputPort(Item &item)

Definition: port.h:117

minsky::Port::item

Item & item()

owner of this port

Definition: port.h:66

Member Function Documentation

◆ combineInput()

void minsky::anonymous_namespace{operation.cc}::MaxInputPort::combineInput	(	double &	x,
		double	y
	)		const

inlineoverridevirtual

combine two input wires

Parameters

x	input to be updated
y	input to be combined with x

Reimplemented from minsky::Port.

Definition at line 61 of file operation.cc.

61 {if (y>x) x=y;}

minsky::Port::y

float y() const

Definition: port.cc:44

minsky::Port::x

float x() const

Definition: port.cc:39

◆ identity()

double minsky::anonymous_namespace{operation.cc}::MaxInputPort::identity ( ) const

inlineoverridevirtual

input port value if no wire attached

Reimplemented from minsky::Port.

Definition at line 63 of file operation.cc.

63 {return -std::numeric_limits<double>::max();}

The documentation for this struct was generated from the following file:
