minsky::anonymous_namespace{plotWidget.cc}::TimeFormatter Struct Reference

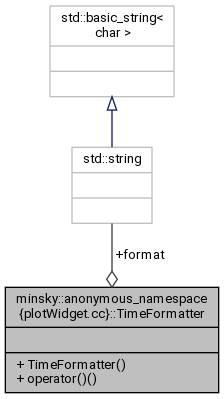

Collaboration diagram for minsky::anonymous_namespace{plotWidget.cc}::TimeFormatter:

Public Member Functions
	TimeFormatter (const std::string &format)
std::string	operator() (const string &label, double x, double y) const

Public Attributes
std::string	format

Detailed Description

Definition at line 540 of file plotWidget.cc.

Constructor & Destructor Documentation

TimeFormatter()

minsky::anonymous_namespace{plotWidget.cc}::TimeFormatter::TimeFormatter ( const std::string &  format )

inline

Definition at line 543 of file plotWidget.cc.

: format(format) {}

Member Function Documentation

operator()()

std::string minsky::anonymous_namespace{plotWidget.cc}::TimeFormatter::operator() ( const string &  label, double  x, double  y  ) const

inline

Definition at line 544 of file plotWidget.cc.

References minsky::str().

      {
        ostringstream r;
        r.precision(3);
        r<<label<<":("<<str(ptime(date(1970,Jan,1))+microseconds(static_cast<long long>(1E6*x)),format)
         <<","<<y<<")";
        return r.str();
      }

Here is the call graph for this function:

Member Data Documentation

format

std::string minsky::anonymous_namespace{plotWidget.cc}::TimeFormatter::format

Definition at line 542 of file plotWidget.cc.

---

The documentation for this struct was generated from the following file:

• model/plotWidget.cc
