schema1::Operation Struct Reference

#include <schema1.h>

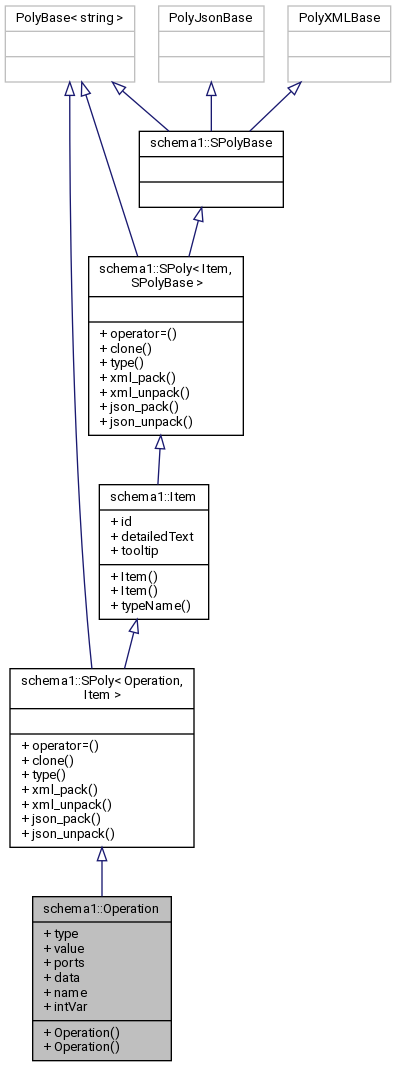

Inheritance diagram for schema1::Operation:

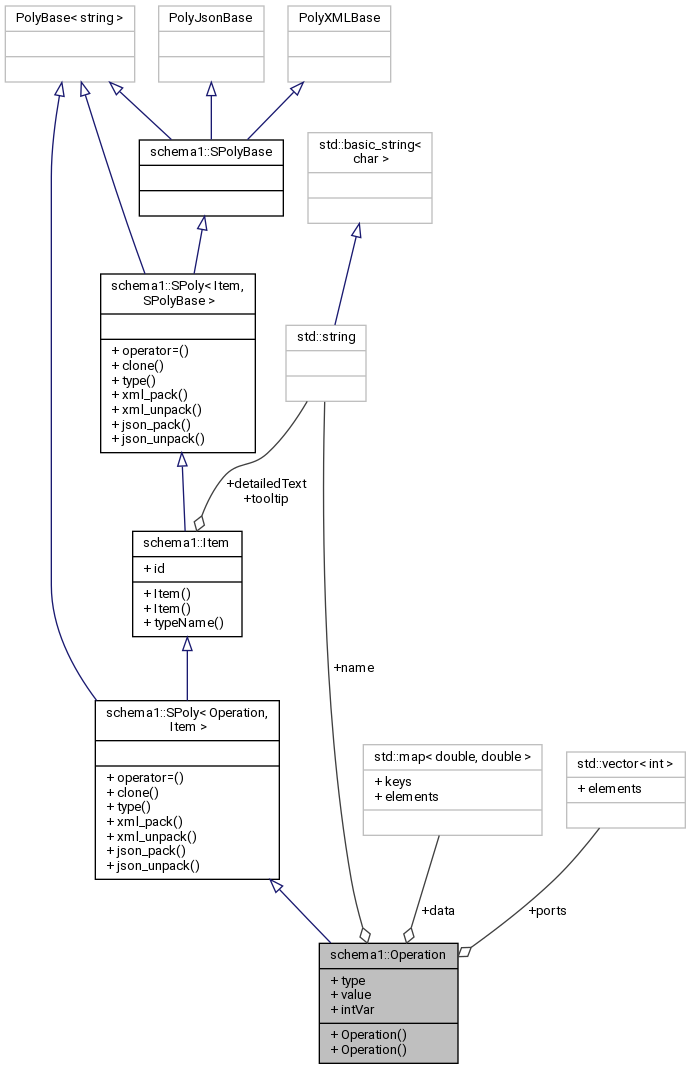

Collaboration diagram for schema1::Operation:

Public Member Functions
	Operation ()
	Operation (int id, const schema0::Operation &op)
Public Member Functions inherited from schema1::SPoly< Operation, Item >
SPoly &	operator= (const SPoly &)=default
SPoly *	clone () const override
string	type () const override
void	xml_pack (xml_pack_t &x, const string &d) const override
void	xml_unpack (xml_unpack_t &x, const string &d) override
void	json_pack (json_pack_t &x, const string &d) const override
void	json_unpack (json_unpack_t &x, const string &d) override
Public Member Functions inherited from schema1::Item
	Item (int id=-1)
template<class T >
	Item (int id, const T &it)
string	typeName () const
Public Member Functions inherited from schema1::SPoly< Item, SPolyBase >
SPoly &	operator= (const SPoly &)=default
SPoly *	clone () const override
string	type () const override
void	xml_pack (xml_pack_t &x, const string &d) const override
void	xml_unpack (xml_unpack_t &x, const string &d) override
void	json_pack (json_pack_t &x, const string &d) const override
void	json_unpack (json_unpack_t &x, const string &d) override

Public Attributes
minsky::OperationType::Type	type
double	value
vector< int >	ports
map< double, double >	data
string	name
int	intVar
Public Attributes inherited from schema1::Item
int	id
string	detailedText
	commentary and short commentary on this item More...
string	tooltip

Detailed Description

Definition at line 121 of file schema1.h.

Constructor & Destructor Documentation

Operation() [1/2]

schema1::Operation::Operation ( )

inline

Definition at line 129 of file schema1.h.

: type(minsky::OperationType::numOps), value(0) {}

Operation() [2/2]

schema1::Operation::Operation ( int  id, const schema0::Operation &  op  )

inline

Definition at line 130 of file schema1.h.

                                                 :
      Item(id), type(op.m_type), value(op.value),
      ports(op.m_ports),
      name(op.m_description.empty()? op.description: op.m_description),
      intVar(op.intVar) {}

Member Data Documentation

data

map<double,double> schema1::Operation::data

Definition at line 126 of file schema1.h.

intVar

int schema1::Operation::intVar

Definition at line 128 of file schema1.h.

Referenced by schema2::Item::Item().

name

string schema1::Operation::name

Definition at line 127 of file schema1.h.

ports

vector<int> schema1::Operation::ports

Definition at line 125 of file schema1.h.

Referenced by schema2::Item::Item().

type

minsky::OperationType::Type schema1::Operation::type

Definition at line 123 of file schema1.h.

Referenced by schema2::Item::Item().

value

double schema1::Operation::value

Definition at line 124 of file schema1.h.

Referenced by schema2::Item::Item().

---

The documentation for this struct was generated from the following file:

• schema/schema1.h
