describes item with sliders - currently just constants More...

#include <schema1.h>

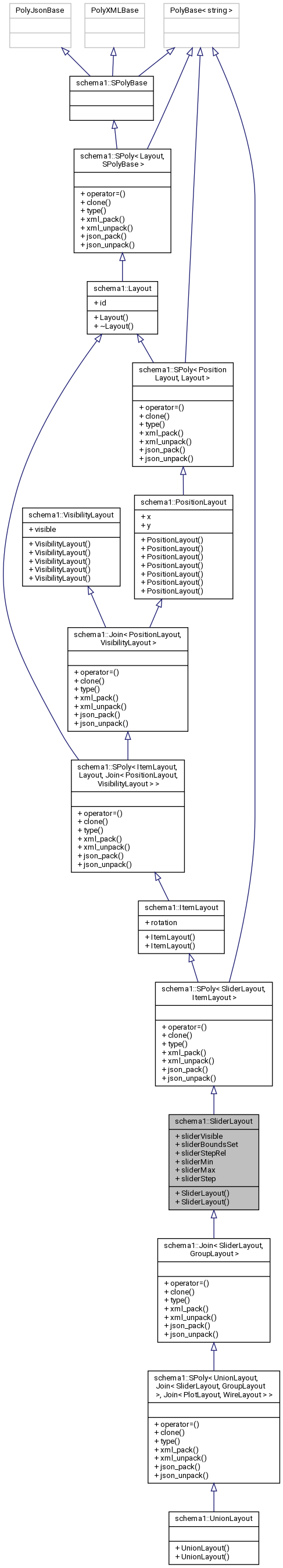

Inheritance diagram for schema1::SliderLayout:

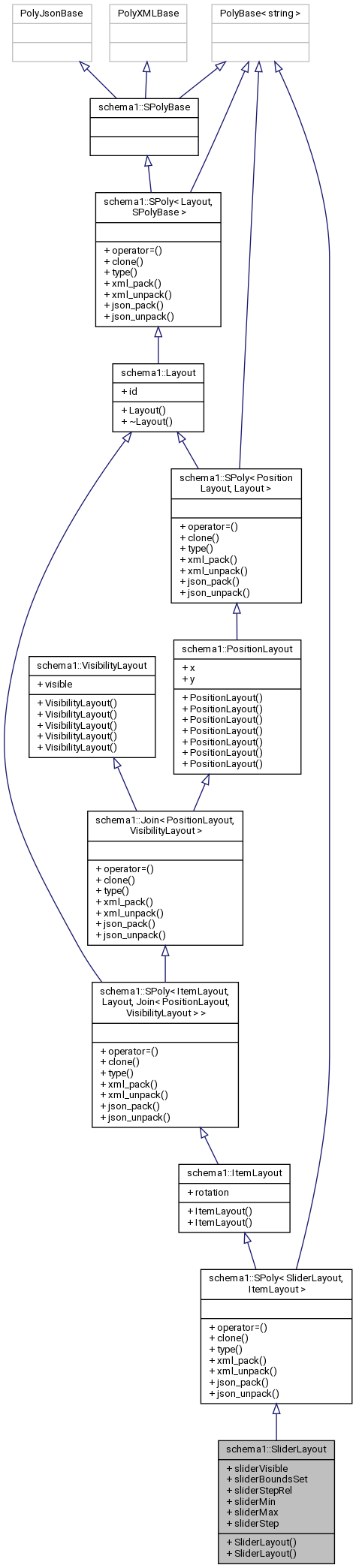

Collaboration diagram for schema1::SliderLayout:

Public Member Functions
	SliderLayout ()

template<class T >
	SliderLayout (int id, const T &item)

Public Member Functions inherited from schema1::SPoly< SliderLayout, ItemLayout >
SPoly &	operator= (const SPoly &)=default

SPoly *	clone () const override

string	type () const override

void	xml_pack (xml_pack_t &x, const string &d) const override

void	xml_unpack (xml_unpack_t &x, const string &d) override

void	json_pack (json_pack_t &x, const string &d) const override

void	json_unpack (json_unpack_t &x, const string &d) override

Public Member Functions inherited from schema1::ItemLayout
	ItemLayout ()

template<class T >
	ItemLayout (int id, const T &item)

Public Member Functions inherited from schema1::SPoly< ItemLayout, Layout, Join< PositionLayout, VisibilityLayout > >
SPoly &	operator= (const SPoly &)=default

SPoly *	clone () const override

string	type () const override

void	xml_pack (xml_pack_t &x, const string &d) const override

void	xml_unpack (xml_unpack_t &x, const string &d) override

void	json_pack (json_pack_t &x, const string &d) const override

void	json_unpack (json_unpack_t &x, const string &d) override

Public Member Functions inherited from schema1::Layout
	Layout (int id=-1)

virtual	~Layout ()

Public Member Functions inherited from schema1::SPoly< Layout, SPolyBase >
SPoly &	operator= (const SPoly &)=default

SPoly *	clone () const override

string	type () const override

void	xml_pack (xml_pack_t &x, const string &d) const override

void	xml_unpack (xml_unpack_t &x, const string &d) override

void	json_pack (json_pack_t &x, const string &d) const override

void	json_unpack (json_unpack_t &x, const string &d) override

Public Member Functions inherited from schema1::Join< PositionLayout, VisibilityLayout >
Join &	operator= (const Join &)=default

Join *	clone () const override

string	type () const override

void	xml_pack (xml_pack_t &x, const string &d) const override

void	xml_unpack (xml_unpack_t &x, const string &d) override

void	json_pack (json_pack_t &x, const string &d) const override

void	json_unpack (json_unpack_t &x, const string &d) override

Public Member Functions inherited from schema1::PositionLayout
	PositionLayout ()

	PositionLayout (int id, double x, double y)

template<class T >
	PositionLayout (int id, const T &item)

	PositionLayout (int id, const schema0::Operation &o)

	PositionLayout (int id, const schema0::Variable &v)

	PositionLayout (int id, const schema0::GroupIcon &g)

	PositionLayout (int id, const schema0::PlotWidget &p)

Public Member Functions inherited from schema1::SPoly< PositionLayout, Layout >
SPoly &	operator= (const SPoly &)=default

SPoly *	clone () const override

string	type () const override

void	xml_pack (xml_pack_t &x, const string &d) const override

void	xml_unpack (xml_unpack_t &x, const string &d) override

void	json_pack (json_pack_t &x, const string &d) const override

void	json_unpack (json_unpack_t &x, const string &d) override

Public Member Functions inherited from schema1::VisibilityLayout
	VisibilityLayout (bool visible=true)

template<class T >
	VisibilityLayout (const T &item)

	VisibilityLayout (const schema0::Operation &item)

	VisibilityLayout (const schema0::Variable &item)

	VisibilityLayout (const schema0::GroupIcon &item)

Public Attributes
bool	sliderVisible =false

bool	sliderBoundsSet =false

bool	sliderStepRel =false

double	sliderMin =0

double	sliderMax =0

double	sliderStep =0

Public Attributes inherited from schema1::ItemLayout
double	rotation =0

Public Attributes inherited from schema1::Layout
int	id

Public Attributes inherited from schema1::PositionLayout
double	x =0

double	y =0

Public Attributes inherited from schema1::VisibilityLayout
bool	visible

Detailed Description

describes item with sliders - currently just constants

Definition at line 297 of file schema1.h.

Constructor & Destructor Documentation

◆ SliderLayout() [1/2]

schema1::SliderLayout::SliderLayout ( )

inline

Definition at line 301 of file schema1.h.

301 {}

◆ SliderLayout() [2/2]

template<class T >

schema1::SliderLayout::SliderLayout	(	int	id,
		const T &	item
	)

inline

Definition at line 303 of file schema1.h.

                                        :
       Layout(id), PositionLayout(id, item), VisibilityLayout(item),
       ItemLayout(id, item), sliderVisible(item.sliderVisible()),
       sliderBoundsSet(item.sliderBoundsSet), sliderStepRel(item.sliderStepRel),
       sliderMin(item.sliderMin), sliderMax(item.sliderMax),
       sliderStep(item.sliderStep) {}
