schema2::Wire Struct Reference

#include <schema2.h>

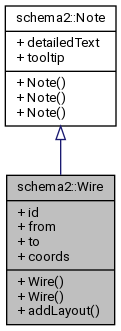

Inheritance diagram for schema2::Wire:

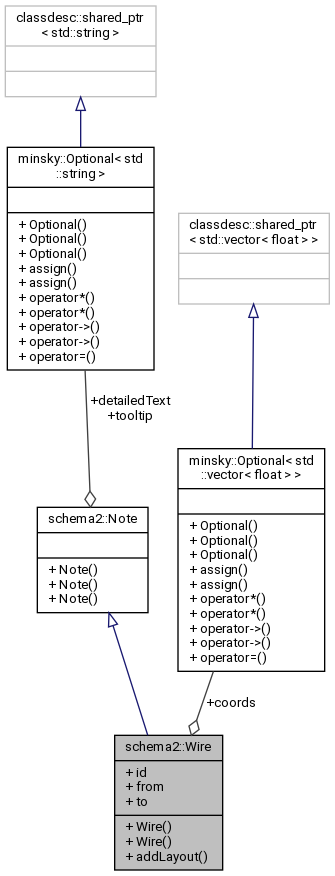

Collaboration diagram for schema2::Wire:

Public Member Functions
	Wire ()
	Wire (const schema1::Wire &w)
void	addLayout (const schema1::UnionLayout &layout)
Public Member Functions inherited from schema2::Note
	Note ()
	Note (const minsky::NoteBase &x)
	Note (const schema1::Item &x)

Public Attributes
int	id =-1
int	from =-1
int	to =-1
Optional< std::vector< float > >	coords
Public Attributes inherited from schema2::Note
Optional< std::string >	detailedText
Optional< std::string >	tooltip

Detailed Description

Definition at line 173 of file schema2.h.

Constructor & Destructor Documentation

Wire() [1/2]

schema2::Wire::Wire ( )

inline

Definition at line 178 of file schema2.h.

{}

Wire() [2/2]

schema2::Wire::Wire ( const schema1::Wire &  w )

inline

Definition at line 179 of file schema2.h.

: Note(w), id(w.id), from(w.from), to(w.to) {}

Member Function Documentation

addLayout()

void schema2::Wire::addLayout ( const schema1::UnionLayout &  layout )

inline

Definition at line 180 of file schema2.h.

References schema1::WireLayout::coords.

                                                     {
      if (layout.coords.size()>4)
        coords.reset(new std::vector<float>(layout.coords));
    }

Member Data Documentation

coords

Optional<std::vector<float> > schema2::Wire::coords

Definition at line 177 of file schema2.h.

from

int schema2::Wire::from =-1

Definition at line 176 of file schema2.h.

id

int schema2::Wire::id =-1

Definition at line 175 of file schema2.h.

to

int schema2::Wire::to =-1

Definition at line 176 of file schema2.h.

---

The documentation for this struct was generated from the following file:

• schema/schema2.h
