#include <schema3.h>

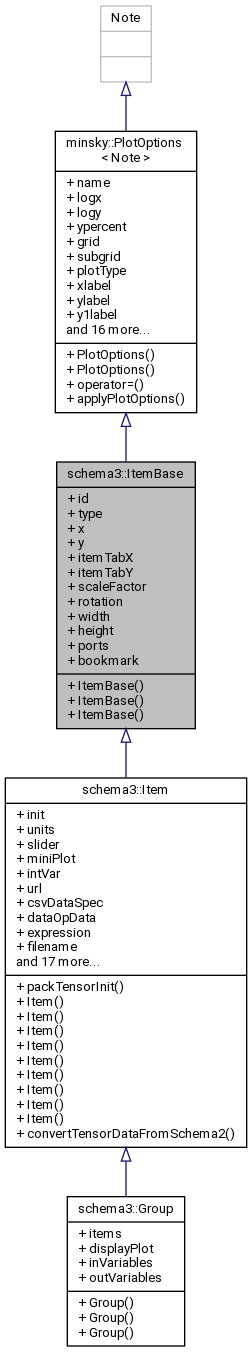

Inheritance diagram for schema3::ItemBase:

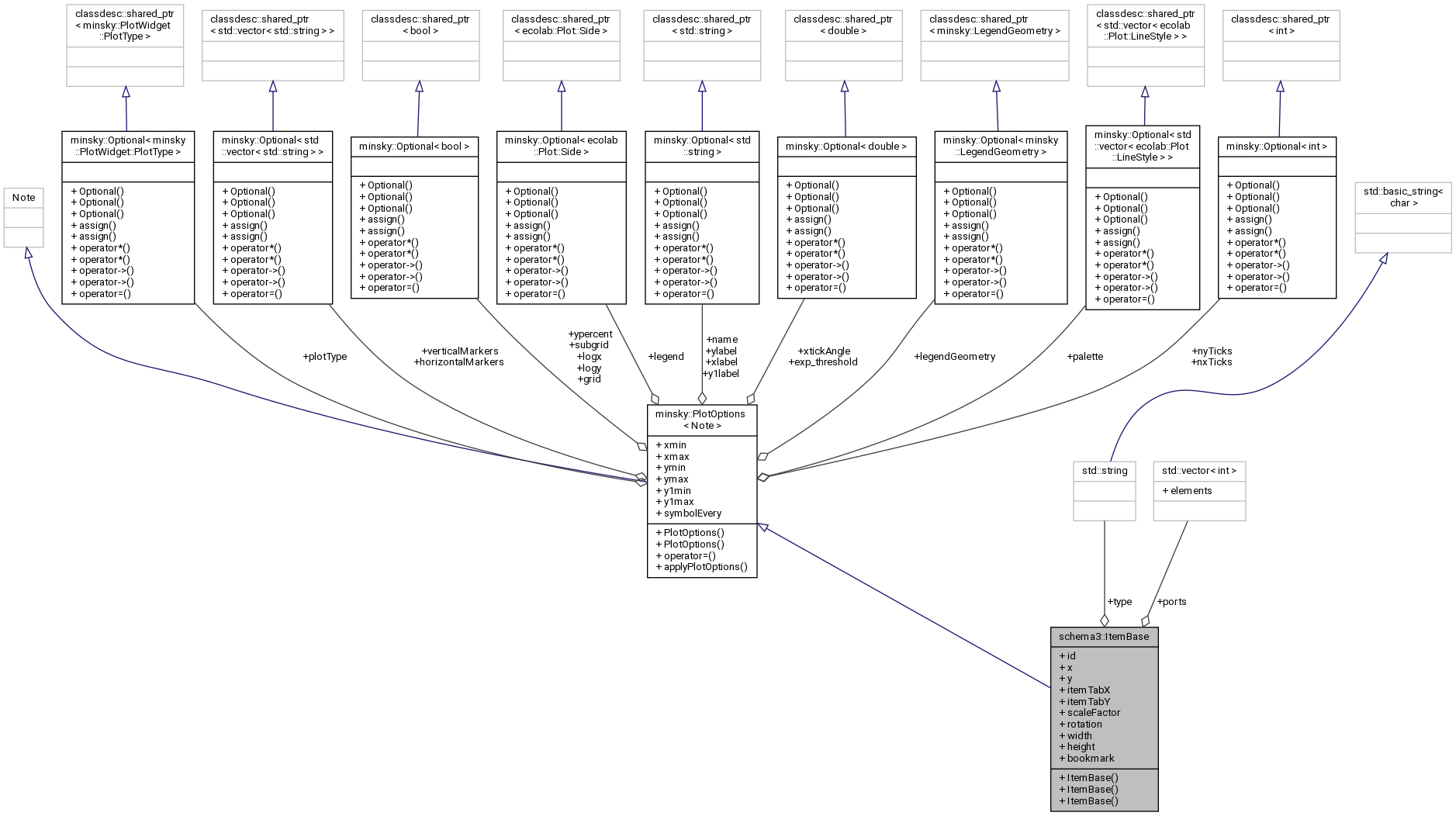

Collaboration diagram for schema3::ItemBase:

Public Member Functions
	ItemBase ()

	ItemBase (int id, const minsky::Item &it, const std::vector< int > &ports)

	ItemBase (const schema2::Item &it, const std::string &type="Item")

Public Member Functions inherited from minsky::PlotOptions< Note >
	PlotOptions ()=default

	PlotOptions (const Note &x)

PlotOptions &	operator= (const PlotWidget &plot)

void	applyPlotOptions (PlotWidget &plot) const

Public Attributes
int	id =-1

std::string	type

float	x =0

float	y =0
	position in canvas, or within group More...

float	itemTabX =nan("")

float	itemTabY =nan("")

float	scaleFactor =1
	scale factor of item on canvas, or within group More...

double	rotation =0
	rotation of icon, in degrees More...

float	width =10

float	height =10

std::vector< int >	ports

bool	bookmark =false

Public Attributes inherited from minsky::PlotOptions< Note >
Optional< std::string >	name

Optional< bool >	logx

Optional< bool >	logy

Optional< bool >	ypercent

Optional< bool >	grid

Optional< bool >	subgrid

Optional< minsky::PlotWidget::PlotType >	plotType

Optional< std::string >	xlabel

Optional< std::string >	ylabel

Optional< std::string >	y1label

Optional< int >	nxTicks

Optional< int >	nyTicks

Optional< double >	xtickAngle

Optional< double >	exp_threshold

double	xmin

double	xmax

double	ymin

double	ymax

double	y1min

double	y1max

unsigned	symbolEvery

Optional< ecolab::Plot::Side >	legend

Optional< LegendGeometry >	legendGeometry

Optional< std::vector< ecolab::Plot::LineStyle > >	palette

Optional< std::vector< std::string > >	horizontalMarkers

Optional< std::vector< std::string > >	verticalMarkers

Detailed Description

Definition at line 66 of file schema3.h.

Constructor & Destructor Documentation

◆ ItemBase() [1/3]

schema3::ItemBase::ItemBase ( )

inline

Definition at line 77 of file schema3.h.

77 {}

◆ ItemBase() [2/3]

schema3::ItemBase::ItemBase	(	int	id,
		const minsky::Item &	it,
		const std::vector< int > &	ports
	)

inline

Definition at line 78 of file schema3.h.

                                                                        :
       minsky::PlotOptions<Note>(Note(it)), id(id), type(it.classType()),
       x(it.m_x), y(it.m_y), scaleFactor(it.m_sf),
       rotation(it.rotation()), width(it.iWidth()), height(it.iHeight()), ports(ports), bookmark(it.bookmark) {}

◆ ItemBase() [3/3]

schema3::ItemBase::ItemBase	(	const schema2::Item &	it,
		const std::string &	type = `"Item"`
	)

inline

Definition at line 82 of file schema3.h.

                                                                  :
       minsky::PlotOptions<Note>(it), id(it.id), type(type), x(it.x), y(it.y),
       rotation(it.rotation), width(it.width? *it.width: 0), height(it.height?*it.height:0),
       ports(it.ports) {}
