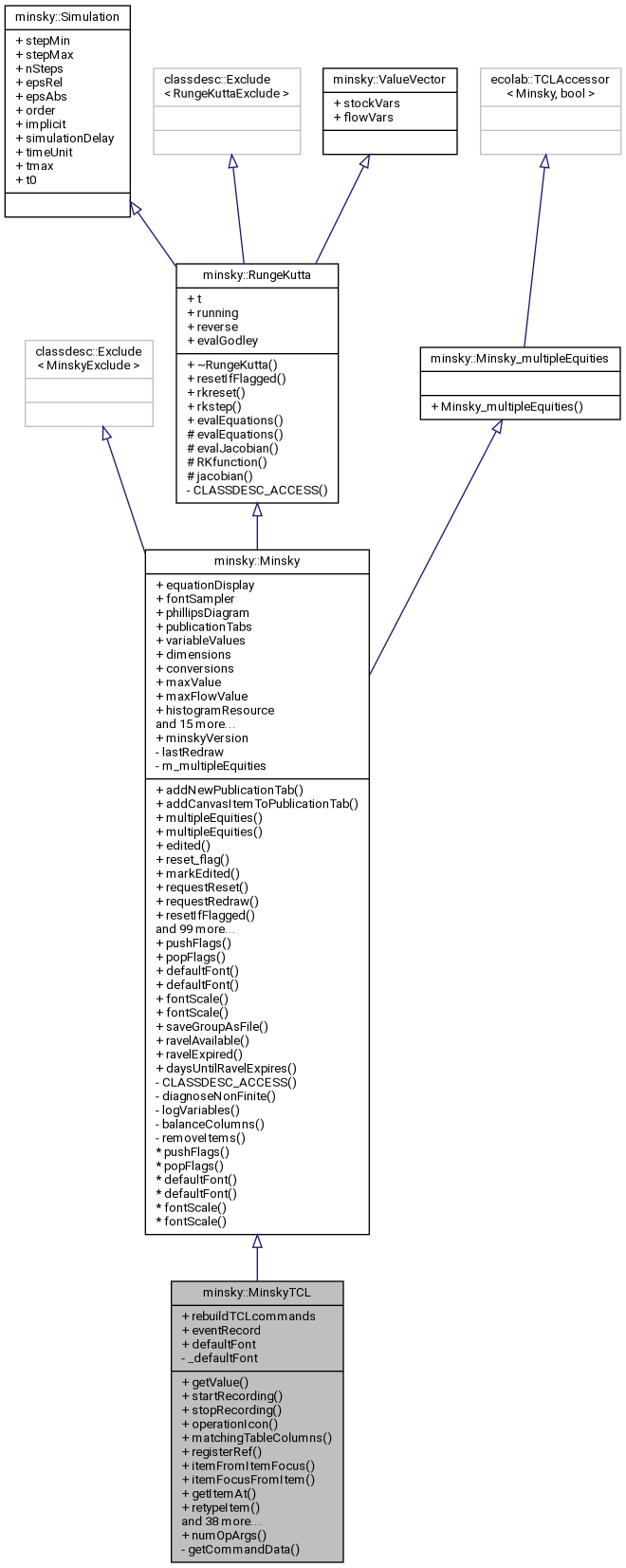

Inheritance diagram for minsky::MinskyTCL:

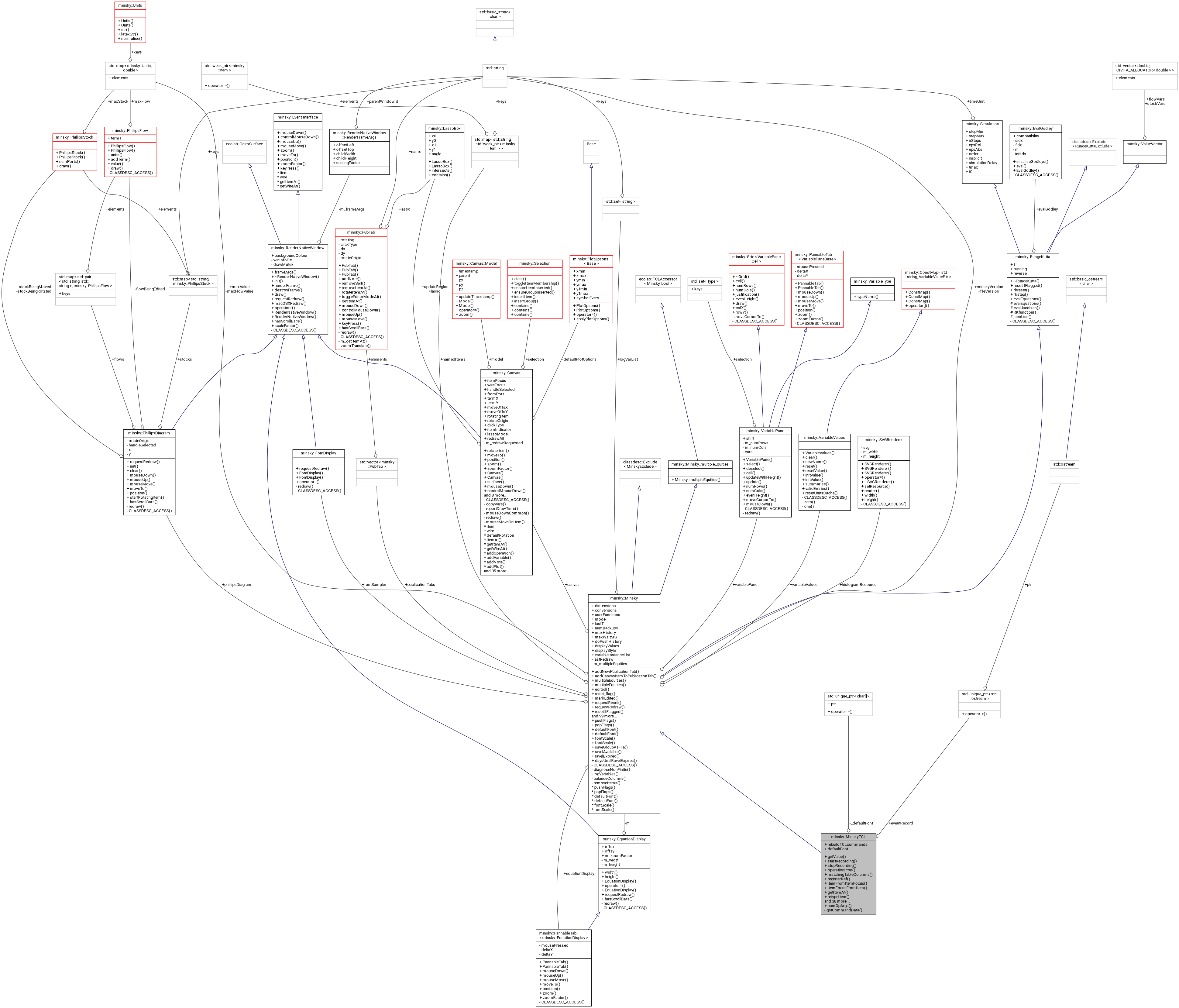

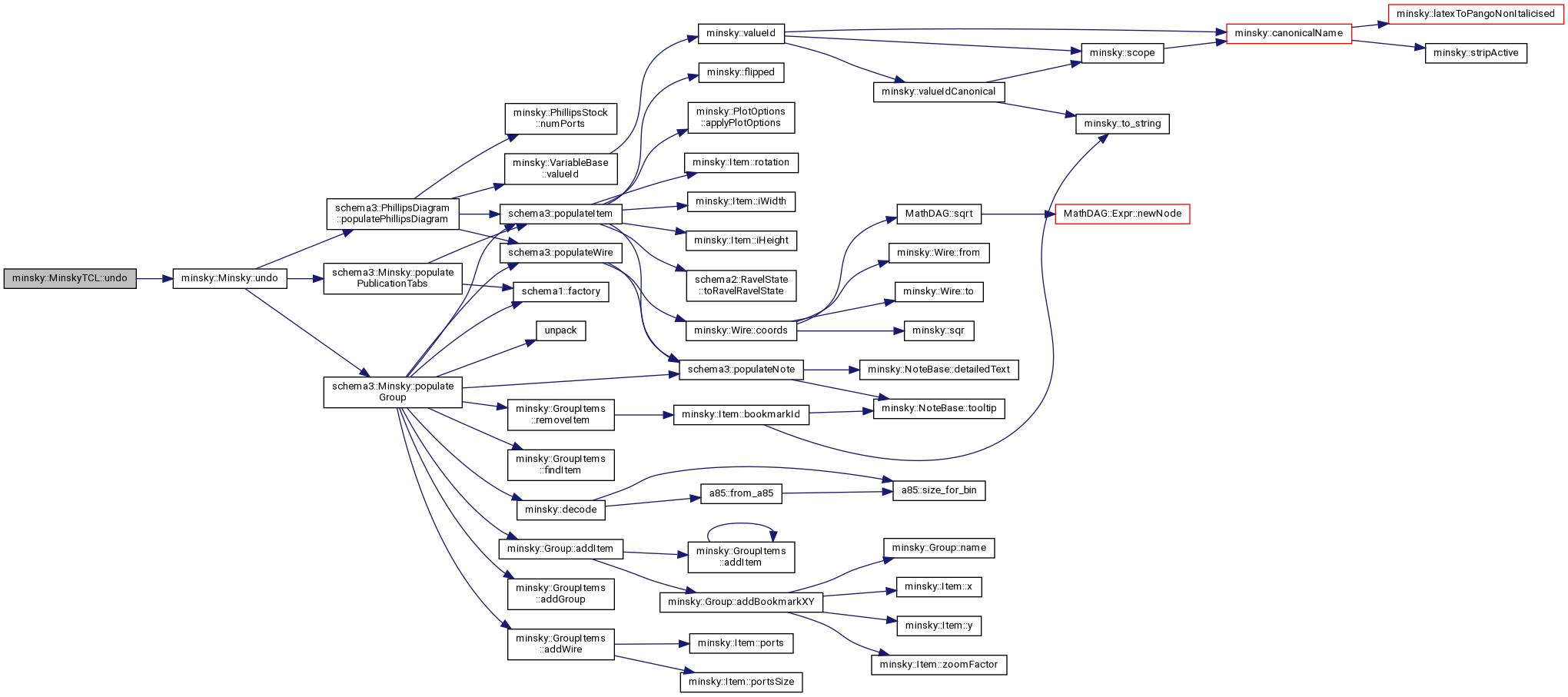

Collaboration diagram for minsky::MinskyTCL:

Public Member Functions

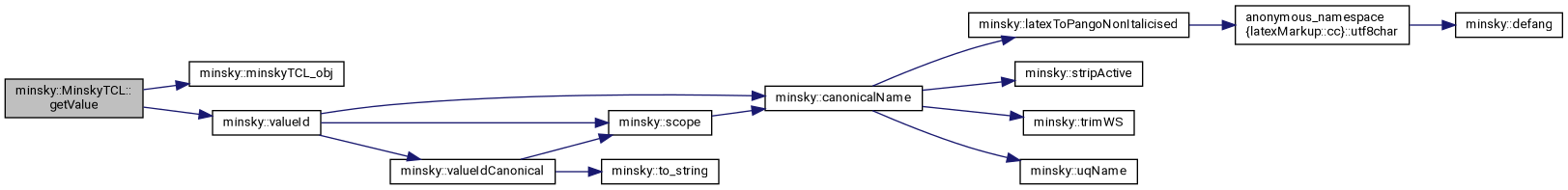

void	getValue (const std::string &valueId)
	generate a TCL_obj referring to variableValues[valueId] More...

void	startRecording (const char *file)

void	stopRecording ()

void	operationIcon (const char imageName, const char opName) const
	fill in a Tk image with the icon for a specific operation More...

std::set< string >	matchingTableColumns (const std::string &currTable, GodleyAssetClass::AssetClass ac)

void	registerRef (ItemPtr &item, const std::string &name)
	register item as a TCL obj under name if it exists, otherwise deregister it More...

bool	itemFromItemFocus ()

bool	itemFocusFromItem ()

bool	getItemAt (float x, float y)

void	retypeItem (VariableType::Type type)

bool	getItemAtFocus ()

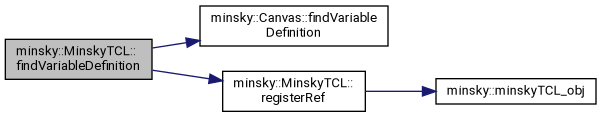

bool	findVariableDefinition ()

bool	getWireAt (float x, float y)

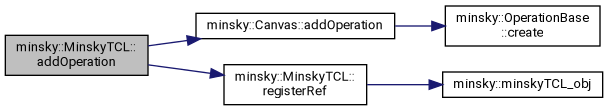

void	addVariable (const std::string &name, VariableType::Type type)

void	addOperation (OperationType::Type op)

void	addNote (const std::string &text)

void	addPlot ()

void	addGodley ()

void	addGroup ()

void	addSwitch ()

void	addIntegral ()

void	addRavel ()

void	addLock ()

void	addSheet ()

void	createGroup ()

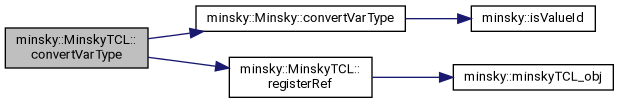

void	convertVarType (const std::string &name, VariableType::Type type)

void	groupOfItem ()

void	resetItem ()

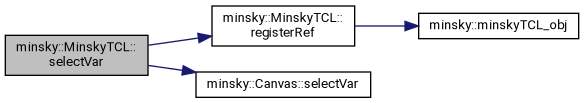

bool	selectVar (float x, float y)

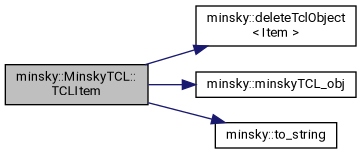

std::string	TCLItem ()
	create a TCL controlled object that is a reference to item More...

void	setColour (std::size_t i, const char *name)
	sets the colour of palette item i to Tk acceptable colour name More...

bool	findObject (const std::string &type)
	find first object of given type More...

bool	findVariable (const std::string &name)

void	openGroupInCanvas ()
	reinitialises canvas to the group located in item More...

void	openModelInCanvas ()
	reinitialises canvas to the toplevel group More...

std::string	openGodley ()

std::string	listAllInstances () const

void	loadVariableFromCSV (const std::string &specVar, const std::string &filename)

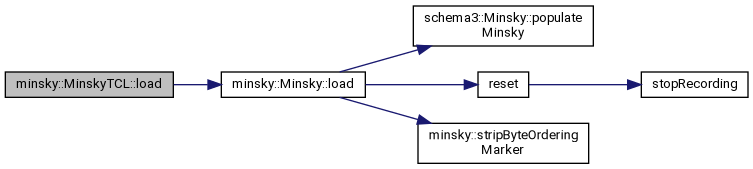

void	load (const std::string &filename)
	load from a file More...

void	undo (TCL_args args)
	restore model to state changes ago More...

string	valueId (const string &x)

void	setBusyCursor () override
	set/clear busy cursor in GUI More...

void	clearBusyCursor () override

void	message (const std::string &m) override
	display a message in a popup box on the GUI More...

void	runItemDeletedCallback (const Item &item) override
	run callback attached to item More...

MemCheckResult	checkMemAllocation (std::size_t bytes) const override

OperationType::Group	classifyOp (OperationType::Type o) const

	CLASSDESC_ACCESS (MinskyTCL)

Public Member Functions inherited from minsky::Minsky
void	addNewPublicationTab (const std::string &name)

void	addCanvasItemToPublicationTab (size_t i)

bool	multipleEquities () const

bool	multipleEquities (const bool &m)

bool	edited () const
	reflects whether the model has been changed since last save More...

bool	reset_flag () const
	true if reset needs to be called prior to numerical integration More...

void	markEdited ()
	indicate model has been changed since last saved More...

void	requestReset ()

void	requestRedraw ()
	requests a redraw of the curren active tab More...

bool	resetIfFlagged () override
	checks whether a reset is required, and resets the simulation if so More...

void	populateMissingDimensions ()
	fills in dimensions table with all loaded ravel axes More...

void	populateMissingDimensionsFromVariable (const VariableValue &, bool &incompatibleMessageDisplayed)
	populate missing dimensions from a variableValue More...

void	populateMissingDimensionsFromVariable (const VariableValue &v)

void	renameDimension (const std::string &oldName, const std::string &newName)

void	setGodleyIconResource (const string &s)

void	setGroupIconResource (const string &s)

void	setLockIconResource (const string &locked, const string &unlocked)

void	setRavelIconResource (const string &s)

std::set< string >	matchingTableColumns (const GodleyIcon &currTable, GodleyAssetClass::AssetClass ac)

void	importDuplicateColumn (GodleyTable &srcTable, int srcCol)
	find any duplicate column, and use it as a source column for balanceDuplicateColumns More...

void	balanceDuplicateColumns (const GodleyIcon &srcTable, int srcCol)
	makes all duplicated columns consistent with srcTable, srcCol More...

std::vector< std::string >	allGodleyFlowVars () const

	Minsky ()

	~Minsky ()

void	clearAllMaps (bool clearHistory)

void	clearAllMaps ()

void	clearAllMapsTCL ()

VariablePtr	definingVar (const std::string &valueId) const
	returns reference to variable defining (ie input wired) for valueId More...

void	saveCanvasItemAsFile (const string &fileName) const

void	initGodleys ()

void	cut ()
	erase items in current selection, put copy into clipboard More...

void	copy () const
	copy items in current selection into clipboard More...

void	paste ()
	paste clipboard as a new group or ungrouped items on the canvas. canvas.itemFocus is set to refer to the new group or items. More...

bool	clipboardEmpty () const
	return true if nothing available in clipboard More...

void	saveSelectionAsFile (const string &fileName) const

void	insertGroupFromFile (const string &file)

void	makeVariablesConsistent ()

void	imposeDimensions ()

void	garbageCollect ()

bool	cycleCheck () const
	checks for presence of illegal cycles in network. Returns true if there are some More...

void	openLogFile (const string &)
	opens the log file, and writes out a header line describing names of all variables More...

void	closeLogFile ()
	closes log file More...

bool	loggingEnabled () const
	returns true if logging is in operation More...

void	constructEquations ()
	construct the equations based on input data More...

void	dimensionalAnalysis () const
	performs dimension analysis, throws if there is a problem More...

void	deleteAllUnits ()
	removes units markup from all variables in model More...

bool	checkEquationOrder () const
	consistency check of the equation order. Should return true. Outputs the operation number of the invalidly ordered operation. More...

double	deltaT () const

void	reset ()
	resets the variables back to their initial values More...

std::vector< double >	step ()
	step the equations (by n steps, default 1) More...

void	save (const std::string &filename)

void	load (const std::string &filename)
	load from a file More...

void	exportSchema (const std::string &filename, int schemaLevel=1)

void	displayErrorItem (const Item &op) const
	indicate operation item has error, if visible, otherwise contining group More...

std::string	ecolabVersion () const

std::string	ravelVersion () const

std::string	autoSaveFile () const
	name of an auto save file More...

void	setAutoSaveFile (const std::string &file)
	initialises auto saving empty file to turn off autosave More...

void	clearHistory ()
	clear history More...

void	checkPushHistory ()
	called periodically to ensure history up to date More...

bool	pushHistory ()
	push current model state onto history if it differs from previous More...

bool	commandHook (const std::string &command, unsigned nargs)
	Executed after each interpreter command to maintain undo/redo stack, edited flag, autosaving etc. More...

long	undo (int changes=1)
	restore model to state changes ago More...

void	convertVarType (const std::string &name, VariableType::Type type)
	Converts variable(s) named by name into a variable of type type. More...

void	addIntegral ()
	add integral to current canvas item (which must be variable convertible to an integral variable More...

bool	inputWired (const std::string &name) const
	returns true if any variable of name name has a wired input More...

void	renderCanvasToPS (const std::string &filename)
	render canvas to a postscript file More...

void	renderCanvasToPDF (const std::string &filename)
	render canvas to a PDF file More...

void	renderCanvasToSVG (const std::string &filename)
	render canvas to an SVG file More...

void	renderCanvasToPNG (const std::string &filename)
	render canvas to a PNG image file More...

void	renderCanvasToPNG (const std::string &filename, const Canvas::ZoomCrop &z)
	Render canvas to a PNG file filename, scaling the canvas temporarily by zoom, shifts it to left, top, and crops to width, height (in ZoomCrop struct). More...

void	renderCanvasToEMF (const std::string &filename)
	render canvas to a EMF image file (Windows only) More...

void	renderAllPlotsAsSVG (const string &prefix) const
	render all plots More...

void	exportAllPlotsAsCSV (const string &prefix) const
	export all plots More...

void	setAllDEmode (bool)
	set DE mode on all godley tables More...

void	srand (int seed)
	set std library RNG seed More...

void	setGodleyDisplayValue (bool displayValues, GodleyTable::DisplayStyle displayStyle)
	set display value mode on all godley table editor modes More...

void	importVensim (const std::string &)
	import a Vensim file More...

void	redrawAllGodleyTables ()
	request all Godley table windows to redraw More...

virtual void	progress (const std::string &title, int)
	set progress bar, out of 100, labelling the progress bar with title More...

virtual void	bookmarkRefresh ()
	refresh the bookmark menu after changes More...

virtual void	resetScroll ()
	reset main window scroll bars after model has been panned More...

virtual MemCheckResult	checkMemAllocation (size_t bytes) const

std::size_t	physicalMem () const
	returns amount of memory installed on system More...

vector< string >	listFonts () const

int	numOpArgs (OperationType::Type o)

OperationType::Group	classifyOp (OperationType::Type o) const

void	latex (const std::string &filename, bool wrapLaTeXLines)

void	matlab (const std::string &filename)

string	latex2pango (const std::string &x)

std::vector< std::string >	availableOperations ()
	list of available operations More...

Minsky::AvailableOperationsMapping	availableOperationsMapping () const

std::vector< std::string >	variableTypes ()
	list of available variable types More...

std::vector< std::string >	assetClasses ()
	return list of available asset classes More...

void	autoLayout ()
	auto layout current open group and recentre More...

void	randomLayout ()
	randomly layout current open group and recentre reinitialises canvas to the group located in item More...

void	openGroupInCanvas ()

void	openModelInCanvas ()
	reinitialises canvas to the toplevel group More...

void	listAllInstances ()

void	nameCurrentItem (const std::string &name)

void	itemFromNamedItem (const std::string &name)

bool	triggerCheckMemAllocationCallback () const
	trigger checkMem callback for testing purposes More...

char	getc () const
	Used to implement a pause until return pressed for attaching debugger purposes. More...

void	setDefinition (const std::string &valueId, const std::string &definition)
	add/replace a definition for a flow variable given by valueId More...

void	pushFlags ()
	push and pop state of the flags More...

void	popFlags ()
	push and pop state of the flags More...

std::string	defaultFont ()
	the default used by Pango More...

std::string	defaultFont (const std::string &x)
	the default used by Pango More...

double	fontScale ()
	an extra scaling factor of Pango fonts More...

double	fontScale (double)
	an extra scaling factor of Pango fonts More...

Public Member Functions inherited from minsky::RungeKutta
virtual	~RungeKutta ()=default

void	rkreset ()
	reset the simulation More...

void	rkstep ()
	step the equations (by n steps, default 1) evaluate the flow equations without stepping. More...

void	evalEquations ()

Public Member Functions inherited from minsky::Minsky_multipleEquities
	Minsky_multipleEquities (const std::string &name, ecolab::TCLAccessor< Minsky, bool >::Getter g, ecolab::TCLAccessor< Minsky, bool >::Setter s)

Static Public Member Functions
static int	numOpArgs (OperationType::Type o)

Static Public Member Functions inherited from minsky::Minsky
static void	saveGroupAsFile (const Group &, const string &fileName)

static bool	ravelAvailable ()

static bool	ravelExpired ()

static int	daysUntilRavelExpires ()

Public Attributes
bool	rebuildTCLcommands =false

std::unique_ptr< std::ostream >	eventRecord

ecolab::Accessor< std::string >	defaultFont

Public Attributes inherited from minsky::Minsky
PannableTab< EquationDisplay >	equationDisplay

FontDisplay	fontSampler

PhillipsDiagram	phillipsDiagram

std::vector< PubTab >	publicationTabs

VariableValues	variableValues

Dimensions	dimensions

Conversions	conversions

std::map< Units, double >	maxValue
	stash the maximum absolute value obtained by a dimensioned quantity More...

std::map< Units, double >	maxFlowValue

SVGRenderer	histogramResource

Exclude< std::map< std::string, std::shared_ptr< CallableFunction > > >	userFunctions

GroupPtr	model {new Group}

Canvas	canvas {model}

std::set< string >	logVarList
	set of variables (valueIds) to log More...

double	lastT {0}
	previous timestep More...

int	numBackups =1
	number of previous versions of saved files to keep save to a file More...

std::string	fileVersion
	Minsky version file was saved under. More...

unsigned	maxHistory {100}
	maximum no. of history states to save More...

int	maxWaitMS =100
	maximum wait in millisecond between redrawing canvas during simulation More...

bool	doPushHistory =true
	flag to indicate whether a TCL should be pushed onto the history stack, or logged in a recording. This is used to avoid movements being added to recordings and undo history More...

bool	displayValues =false

GodleyTable::DisplayStyle	displayStyle =GodleyTable::sign

std::shared_ptr< VariableInstanceList >	variableInstanceList
	supports navigation to all instances of current variable More...

std::map< std::string, std::weak_ptr< Item > >	namedItems

VariablePane	variablePane

Public Attributes inherited from minsky::RungeKutta
double	t {0}
	time More...

bool	running =false
	controls whether simulation is running More...

bool	reverse =false
	reverse direction of simulation More...

EvalGodley	evalGodley

Public Attributes inherited from minsky::Simulation
double	stepMin {0}

double	stepMax {0.01}

int	nSteps {1}

double	epsRel {1e-2}

double	epsAbs {1e-3}

int	order {4}

bool	implicit {false}

int	simulationDelay {0}

std::string	timeUnit

double	tmax {INFINITY}

double	t0 {0}

Private Member Functions
CmdData	getCommandData (const std::string &command) const override
	return meta information on a given command More...

Private Attributes
std::unique_ptr< char[]>	_defaultFont

Additional Inherited Members
Public Types inherited from minsky::Minsky
enum	CmdData { no_command, is_const, is_setterGetter, generic }

enum	MemCheckResult { OK, proceed, abort }
	check whether to proceed or abort, given a request to allocate bytes of memory. Implemented in MinskyTCL More...

using	AvailableOperationsMapping = classdesc::StringKeyMap< std::vector< OperationType::Type > >

Static Public Attributes inherited from minsky::Minsky
static const std::string	minskyVersion =MINSKY_VERSION
	return the AEGIS assigned version number More...

Static Public Attributes inherited from minsky::ValueVector
static std::vector< double, CIVITA_ALLOCATOR< double > >	stockVars
	vector of variables that are integrated via Runge-Kutta. These variables label the columns of the Godley table More...

static std::vector< double, CIVITA_ALLOCATOR< double > >	flowVars
	variables defined as a simple function of the stock variables, also known as lhs variables. These variables appear in the body of the Godley table More...

Protected Member Functions inherited from minsky::RungeKutta
void	evalEquations (double result[], double, const double vars[])

void	evalJacobian (Matrix &, double, const double vars[])

Static Protected Member Functions inherited from minsky::RungeKutta
static int	RKfunction (double, const double y[], double f[], void *)
	function to be integrated (internal use) More...

static int	jacobian (double, const double y[], double , double dfdt[], void )
	compute jacobian (internal use) More...

Detailed Description

Definition at line 43 of file minskyTCL.h.

Member Function Documentation

◆ addGodley()

void minsky::MinskyTCL::addGodley ( )

inline

Definition at line 176 of file minskyTCL.h.

References minsky::Canvas::addGodley(), minsky::Minsky::canvas, minsky::Canvas::itemFocus, and registerRef().

                      {
       canvas.addGodley();
       registerRef(canvas.itemFocus,"minsky.canvas.itemFocus");
     }

Here is the call graph for this function:

◆ addGroup()

void minsky::MinskyTCL::addGroup ( )

inline

Definition at line 180 of file minskyTCL.h.

References minsky::Canvas::addGroup(), minsky::Minsky::canvas, minsky::Canvas::itemFocus, and registerRef().

                     {
       canvas.addGroup();
       registerRef(canvas.itemFocus,"minsky.canvas.itemFocus");
     }

Here is the call graph for this function:

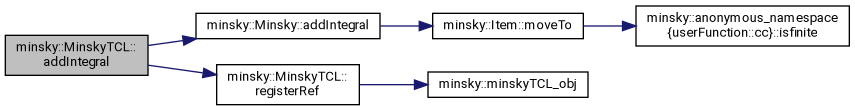

◆ addIntegral()

void minsky::MinskyTCL::addIntegral ( )

inline

Definition at line 188 of file minskyTCL.h.

References minsky::Minsky::addIntegral(), minsky::Minsky::canvas, minsky::Canvas::item, and registerRef().

                        {
       Minsky::addIntegral();
       registerRef(canvas.item,"minsky.canvas.item");
     }

Here is the call graph for this function:

◆ addLock()

void minsky::MinskyTCL::addLock ( )

inline

Definition at line 196 of file minskyTCL.h.

References minsky::Canvas::addLock(), minsky::Minsky::canvas, minsky::Canvas::item, and registerRef().

                    {
       canvas.addLock();
       registerRef(canvas.item,"minsky.canvas.item");
     }

Here is the call graph for this function:

◆ addNote()

void minsky::MinskyTCL::addNote ( const std::string & text )

inline

Definition at line 168 of file minskyTCL.h.

References minsky::Canvas::addNote(), minsky::Minsky::canvas, minsky::Canvas::itemFocus, and registerRef().

                                         {
       canvas.addNote(text);
       registerRef(canvas.itemFocus,"minsky.canvas.itemFocus");
     }

Here is the call graph for this function:

◆ addOperation()

void minsky::MinskyTCL::addOperation ( OperationType::Type op )

inline

Definition at line 164 of file minskyTCL.h.

References minsky::Canvas::addOperation(), minsky::Minsky::canvas, minsky::Canvas::itemFocus, minsky::op, and registerRef().

                                             {
       canvas.addOperation(op);
       registerRef(canvas.itemFocus,"minsky.canvas.itemFocus");
     }

Here is the call graph for this function:

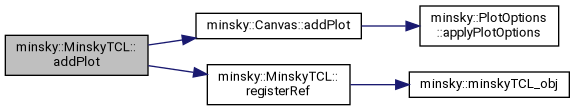

◆ addPlot()

void minsky::MinskyTCL::addPlot ( )

inline

Definition at line 172 of file minskyTCL.h.

References minsky::Canvas::addPlot(), minsky::Minsky::canvas, minsky::Canvas::itemFocus, and registerRef().

                    {
       canvas.addPlot();
       registerRef(canvas.itemFocus,"minsky.canvas.itemFocus");
     }

Here is the call graph for this function:

◆ addRavel()

void minsky::MinskyTCL::addRavel ( )

inline

Definition at line 192 of file minskyTCL.h.

References minsky::Canvas::addRavel(), minsky::Minsky::canvas, minsky::Canvas::item, and registerRef().

                     {
       canvas.addRavel();
       registerRef(canvas.item,"minsky.canvas.item");
     }

Here is the call graph for this function:

◆ addSheet()

void minsky::MinskyTCL::addSheet ( )

inline

Definition at line 200 of file minskyTCL.h.

References minsky::Canvas::addSheet(), minsky::Minsky::canvas, minsky::Canvas::item, and registerRef().

                     {
       canvas.addSheet();
       registerRef(canvas.item,"minsky.canvas.item");
     }

Here is the call graph for this function:

◆ addSwitch()

void minsky::MinskyTCL::addSwitch ( )

inline

Definition at line 184 of file minskyTCL.h.

References minsky::Canvas::addSwitch(), minsky::Minsky::canvas, minsky::Canvas::itemFocus, and registerRef().

                      {
       canvas.addSwitch();
       registerRef(canvas.itemFocus,"minsky.canvas.itemFocus");
     }

Here is the call graph for this function:

◆ addVariable()

void minsky::MinskyTCL::addVariable	(	const std::string &	name,
		VariableType::Type	type
	)

inline

Definition at line 160 of file minskyTCL.h.

References minsky::Canvas::addVariable(), minsky::Minsky::canvas, minsky::Canvas::itemFocus, and registerRef().

                                                                    {
       canvas.addVariable(name,type);
       registerRef(canvas.itemFocus,"minsky.canvas.itemFocus");
     }

Here is the call graph for this function:

◆ checkMemAllocation()

MemCheckResult minsky::MinskyTCL::checkMemAllocation ( std::size_t bytes ) const

inlineoverride

Definition at line 381 of file minskyTCL.h.

References minsky::Minsky::abort, ecolab::mainWin, minsky::Minsky::OK, minsky::Minsky::physicalMem(), and minsky::Minsky::proceed.

                                                                       {
       if (ecolab::mainWin && bytes>0.2*physicalMem())
         {
           tclcmd cmd;
           cmd<<"tk_messageBox -message {Allocation will use more than 50% of available memory. Do you want to proceed?} -type yesno\n";
           return cmd.result=="yes"? proceed: abort;
         }
       return OK;
     }

Here is the call graph for this function:

◆ CLASSDESC_ACCESS()

minsky::MinskyTCL::CLASSDESC_ACCESS ( MinskyTCL )

◆ classifyOp()

OperationType::Group minsky::MinskyTCL::classifyOp ( OperationType::Type o ) const

inline

Definition at line 392 of file minskyTCL.h.

References minsky::OperationType::classify().

392 {return OperationType::classify(o);}

minsky::OperationType::classify

static Group classify(Type t)

Definition: operationType.cc:32

Here is the call graph for this function:

◆ clearBusyCursor()

void minsky::MinskyTCL::clearBusyCursor ( )

inlineoverridevirtual

Reimplemented from minsky::Minsky.

Definition at line 372 of file minskyTCL.h.

Referenced by loadVariableFromCSV().

373 {tclcmd()<<"setCursor {}\n";}

Here is the caller graph for this function:

◆ convertVarType()

void minsky::MinskyTCL::convertVarType	(	const std::string &	name,
		VariableType::Type	type
	)

inline

Definition at line 209 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::Minsky::convertVarType(), minsky::Canvas::item, and registerRef().

                                                                       {
       Minsky::convertVarType(name,type);
       registerRef(canvas.item,"minsky.canvas.item");
     }

Here is the call graph for this function:

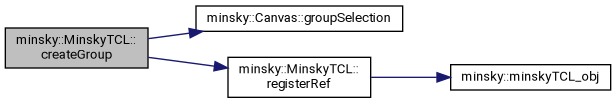

◆ createGroup()

void minsky::MinskyTCL::createGroup ( )

inline

Definition at line 205 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::Canvas::groupSelection(), minsky::Canvas::itemFocus, and registerRef().

                        {
       canvas.groupSelection();
       registerRef(canvas.itemFocus,"minsky.canvas.itemFocus");
     }

Here is the call graph for this function:

◆ findObject()

bool minsky::MinskyTCL::findObject ( const std::string & type )

inline

find first object of given type

Definition at line 253 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::Canvas::item, minsky::GroupItems::items, minsky::Canvas::model, minsky::Minsky::model, and registerRef().

     {
       canvas.item.reset();
       if (type=="Group" && !canvas.model->groups.empty())
         canvas.item=canvas.model->groups.front();
       else
         model->recursiveDo
           (&GroupItems::items, [&](const Items&, Items::const_iterator i)
            {
              if ((*i)->classType()==type)
                {
                  canvas.item=*i;
                  return true;
                }
              return false;
            });
       registerRef(canvas.item,"minsky.canvas.item");
       return canvas.item.get();
     }

Here is the call graph for this function:

◆ findVariable()

bool minsky::MinskyTCL::findVariable ( const std::string & name )

inline

Definition at line 273 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::Canvas::item, minsky::GroupItems::items, minsky::Minsky::model, and registerRef().

     {
       canvas.item.reset();
       model->recursiveDo
         (&GroupItems::items, [&](const Items&, Items::const_iterator i)
                          {
                            if (auto v=dynamic_cast<VariableBase*>(i->get()))
                              if (v->name()==name)
                                {
                                  canvas.item=*i;
                                  return true;
                                }
                            return false;
                          });
       registerRef(canvas.item,"minsky.canvas.item");
       return canvas.item.get();
     }

Here is the call graph for this function:

◆ findVariableDefinition()

bool minsky::MinskyTCL::findVariableDefinition ( )

inline

Definition at line 139 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::Canvas::findVariableDefinition(), minsky::Canvas::item, and registerRef().

     {
       if (canvas.findVariableDefinition())
         {
           TCL_obj_deregister("minsky.canvas.item");
           registerRef(canvas.item,"minsky.canvas.item");
           return true;
         }
       return false;
     }

Here is the call graph for this function:

◆ getCommandData()

CmdData minsky::MinskyTCL::getCommandData ( const std::string & command ) const

inlineoverrideprivatevirtual

return meta information on a given command

Reimplemented from minsky::Minsky.

Definition at line 398 of file minskyTCL.h.

References minsky::getCommandData(), minsky::Minsky::is_const, minsky::Minsky::is_setterGetter, minsky::Minsky::no_command, and minsky::RungeKutta::t.

                                                                     {
       auto t=minsky::getCommandData(command);
       if (!t) return no_command;
       if (t->is_const) return is_const;
       if (t->is_setterGetter) return is_setterGetter;
       return generic;
     }

Here is the call graph for this function:

◆ getItemAt()

bool minsky::MinskyTCL::getItemAt	(	float	x,
		float	y
	)

inline

Definition at line 101 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::Canvas::getItemAt(), minsky::Canvas::item, and registerRef().

     {
       // deregister any old definitions, as item is polymorphic
       TCL_obj_deregister("minsky.canvas.item");
       canvas.getItemAt(x,y);
       registerRef(canvas.item,"minsky.canvas.item");
       return canvas.item.get();
     }

Here is the call graph for this function:

◆ getItemAtFocus()

bool minsky::MinskyTCL::getItemAtFocus ( )

inline

Definition at line 130 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::Canvas::item, minsky::Canvas::itemFocus, and registerRef().

     {
       // deregister any old definitions, as item is polymorphic
       TCL_obj_deregister("minsky.canvas.item");
       canvas.item=canvas.itemFocus;
       registerRef(canvas.item,"minsky.canvas.item");
       return canvas.item.get();
     }

Here is the call graph for this function:

◆ getValue()

void minsky::MinskyTCL::getValue ( const std::string & valueId )

generate a TCL_obj referring to variableValues[valueId]

Definition at line 141 of file minskyTCL.cc.

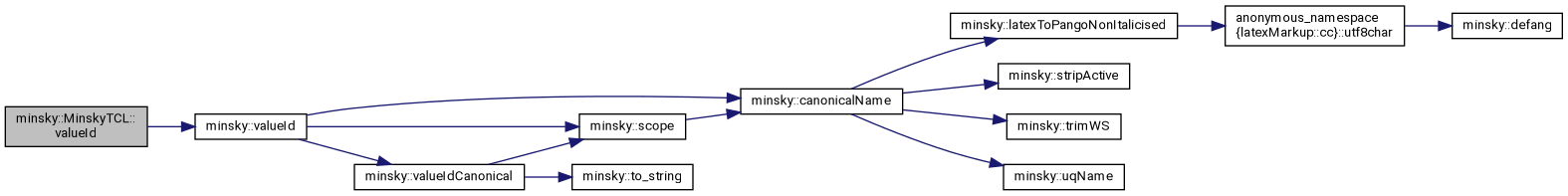

References minsky::minskyTCL_obj(), and minsky::valueId().

   {
     auto value=variableValues.find(valueId);
     if (value!=variableValues.end())
       TCL_obj(minskyTCL_obj(),"minsky.value",value->second);
     else
       TCL_obj_deregister("minsky.value");
   }

Here is the call graph for this function:

◆ getWireAt()

bool minsky::MinskyTCL::getWireAt	(	float	x,
		float	y
	)

inline

Definition at line 150 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::Canvas::getWireAt(), minsky::minskyTCL_obj(), and minsky::Canvas::wire.

     {
       canvas.getWireAt(x,y);
       if (canvas.wire)
         TCL_obj(minskyTCL_obj(),"minsky.canvas.wire",*canvas.wire);
       else
         TCL_obj_deregister("minsky.canvas.wire");
       return canvas.wire.get();
     }

Here is the call graph for this function:

◆ groupOfItem()

void minsky::MinskyTCL::groupOfItem ( )

inline

Definition at line 214 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::Canvas::item, and registerRef().

                        {
       if (canvas.item) {
           canvas.item=canvas.item->group.lock();
           registerRef(canvas.item,"minsky.canvas.item");
         }
     }

Here is the call graph for this function:

◆ itemFocusFromItem()

bool minsky::MinskyTCL::itemFocusFromItem ( )

inline

Definition at line 91 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::Canvas::item, minsky::Canvas::itemFocus, and registerRef().

     {
       TCL_obj_deregister("minsky.canvas.item");
       canvas.itemFocus=canvas.item;
       canvas.item.reset();
       registerRef(canvas.item,"minsky.canvas.item");
       registerRef(canvas.itemFocus,"minsky.canvas.itemFocus");
       return canvas.item.get();
     }

Here is the call graph for this function:

◆ itemFromItemFocus()

bool minsky::MinskyTCL::itemFromItemFocus ( )

inline

Definition at line 81 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::Canvas::item, minsky::Canvas::itemFocus, and registerRef().

     {
       TCL_obj_deregister("minsky.canvas.item");
       canvas.item=canvas.itemFocus;
       canvas.itemFocus.reset();
       registerRef(canvas.item,"minsky.canvas.item");
       registerRef(canvas.itemFocus,"minsky.canvas.itemFocus");
       return canvas.item.get();
     }

Here is the call graph for this function:

◆ listAllInstances()

std::string minsky::MinskyTCL::listAllInstances ( ) const

inline

Definition at line 317 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::Canvas::item, minsky::minskyTCL_obj(), minsky::Canvas::model, and minsky::to_string().

                                        {
       if (auto v=canvas.item->variableCast())
         {
           std::string name="instanceList"+to_string(std::size_t(canvas.item.get()));
           if (TCL_obj_properties().count(name)==0)
             {
               auto instanceList=new VariableInstanceList(*canvas.model, v->valueId());
               // pass ownership of object to TCL interpreter
               Tcl_CreateCommand
                 (ecolab::interp(), (name+".delete").c_str(),
                  (Tcl_CmdProc*)deleteTclObject<VariableInstanceList>,
                  (ClientData)instanceList,NULL);
               TCL_obj(minskyTCL_obj(),name,*instanceList);
             }
           return name;
         }
       return "";
     }

Here is the call graph for this function:

◆ load()

void minsky::MinskyTCL::load ( const std::string & filename )

inline

load from a file

Definition at line 350 of file minskyTCL.h.

References minsky::Minsky::load(), and rebuildTCLcommands.

                                          {
       Minsky::load(filename);
       // load resets the model pointer, etc, so request rebuilding of
       // TCL commands
       rebuildTCLcommands=true;
     }

Here is the call graph for this function:

◆ loadVariableFromCSV()

void minsky::MinskyTCL::loadVariableFromCSV	(	const std::string &	specVar,
		const std::string &	filename
	)

inline

Definition at line 336 of file minskyTCL.h.

References minsky::Minsky::canvas, clearBusyCursor(), minsky::Canvas::item, and setBusyCursor().

     {
       auto i=TCL_obj_properties().find(specVar);
       if (i!=TCL_obj_properties().end())
         if (auto spec=dynamic_cast<member_entry<DataSpec>*>(i->second.get()))
           if (auto v=canvas.item->variableCast())
             {
               setBusyCursor();
               v->importFromCSV({filename}, spec->memberptr->toSchema());
               clearBusyCursor();
             }
     }

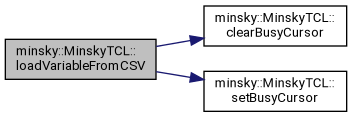

Here is the call graph for this function:

◆ matchingTableColumns()

std::set<string> minsky::MinskyTCL::matchingTableColumns	(	const std::string &	currTable,
		GodleyAssetClass::AssetClass	ac
	)

inline

Definition at line 64 of file minskyTCL.h.

References minsky::Minsky::matchingTableColumns().

                                                                                                    {
       auto it=TCL_obj_properties().find(currTable);
       if (it!=TCL_obj_properties().end())
         if (auto g=it->second->memberPtrCasted<GodleyIcon>())
           return Minsky::matchingTableColumns(*g, ac);
       return std::set<string>();
     }

Here is the call graph for this function:

◆ message()

void minsky::MinskyTCL::message ( const std::string & )

inlineoverridevirtual

display a message in a popup box on the GUI

Reimplemented from minsky::Minsky.

Definition at line 375 of file minskyTCL.h.

376 {(tclcmd()<<"if [llength [info command tk_messageBox]] {tk_messageBox -message \"")|m|"\" -type ok}\n";}

◆ numOpArgs()

int minsky::MinskyTCL::numOpArgs ( OperationType::Type o )

static

Definition at line 203 of file minskyTCL.cc.

References minsky::op.

   {
     const OperationPtr op(o);
     return op->numPorts()-1;
   }

◆ openGodley()

std::string minsky::MinskyTCL::openGodley ( )

inline

Definition at line 304 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::Canvas::item, minsky::minskyTCL_obj(), and minsky::to_string().

                            {
       if (auto gi=dynamic_pointer_cast<GodleyIcon>(canvas.item))
         {
           std::string name="godleyWindow"+to_string(std::size_t(canvas.item.get()));
           if (TCL_obj_properties().count(name)==0)
             {
               TCL_obj(minskyTCL_obj(),name,*gi);
             }
           return name;
         }
       return "";
     }

Here is the call graph for this function:

◆ openGroupInCanvas()

void minsky::MinskyTCL::openGroupInCanvas ( )

inline

reinitialises canvas to the group located in item

Definition at line 292 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::Canvas::item, minsky::minskyTCL_obj(), minsky::Canvas::model, and minsky::Canvas::openGroupInCanvas().

                              {
       canvas.openGroupInCanvas(canvas.item);
       TCL_obj(minskyTCL_obj(),"minsky.canvas.model", *canvas.model);
     }

Here is the call graph for this function:

◆ openModelInCanvas()

void minsky::MinskyTCL::openModelInCanvas ( )

inline

reinitialises canvas to the toplevel group

Definition at line 297 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::minskyTCL_obj(), minsky::Canvas::model, minsky::Minsky::model, and minsky::Canvas::openGroupInCanvas().

                              {
       canvas.openGroupInCanvas(model);
       TCL_obj(minskyTCL_obj(),"minsky.canvas.model", *canvas.model);
     }

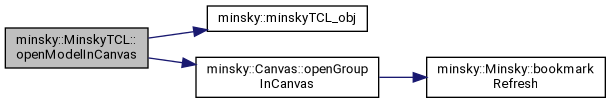

Here is the call graph for this function:

◆ operationIcon()

void minsky::MinskyTCL::operationIcon	(	const char *	imageName,
		const char *	opName
	)		const

fill in a Tk image with the icon for a specific operation

Parameters

Tk	imageName
operationName

Definition at line 189 of file minskyTCL.cc.

   {
     if (string(opName)=="switch")
       IconBase<SwitchIcon>(imageName).draw();
     else if (string(opName)=="userFunction")
       {
         IconBase<UserFunction> uf(imageName);
         uf.description("f(x)");
         uf.draw();
       }
     else
       IconBase<OperationIcon>(imageName, opName).draw();
   }

◆ registerRef()

void minsky::MinskyTCL::registerRef	(	ItemPtr &	item,
		const std::string &	name
	)

inline

register item as a TCL obj under name if it exists, otherwise deregister it

Definition at line 73 of file minskyTCL.h.

References minsky::minskyTCL_obj().

Referenced by addGodley(), addGroup(), addIntegral(), addLock(), addNote(), addOperation(), addPlot(), addRavel(), addSheet(), addSwitch(), addVariable(), convertVarType(), createGroup(), findObject(), findVariable(), findVariableDefinition(), getItemAt(), getItemAtFocus(), groupOfItem(), itemFocusFromItem(), itemFromItemFocus(), resetItem(), retypeItem(), and selectVar().

     {
       if (item)
         item->TCL_obj(minskyTCL_obj(),name);
       else
         TCL_obj_deregister(name);
     }

Here is the call graph for this function:

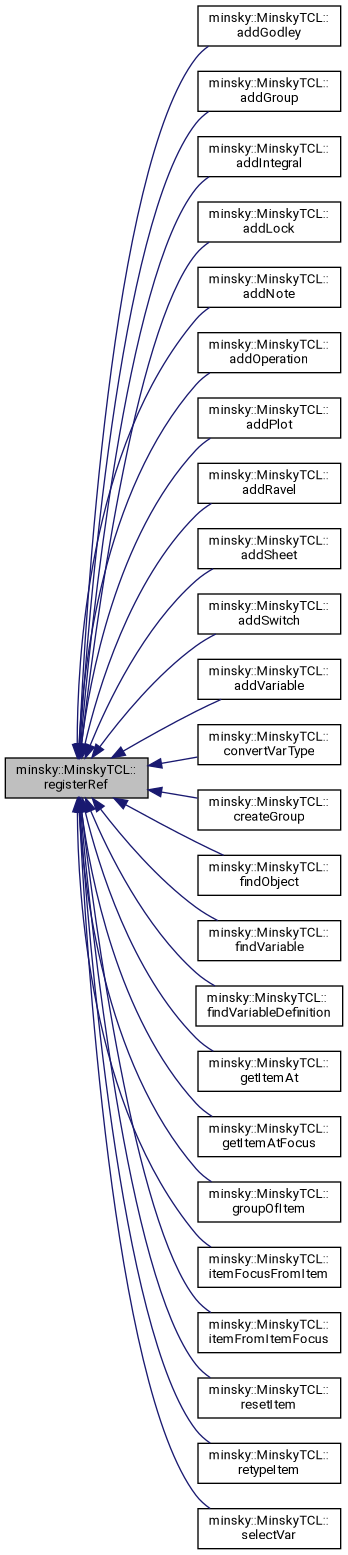

Here is the caller graph for this function:

◆ resetItem()

void minsky::MinskyTCL::resetItem ( )

inline

Definition at line 221 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::Canvas::item, and registerRef().

                      {
       canvas.item.reset();
       registerRef(canvas.item,"minsky.canvas.item");
     }

Here is the call graph for this function:

◆ retypeItem()

void minsky::MinskyTCL::retypeItem ( VariableType::Type type )

inline

Definition at line 111 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::Canvas::item, and registerRef().

     {
       if (canvas.item)
         if (auto g=canvas.item->group.lock())
           {
             // snag a reference to the actual location of this item,
             // so we can update canvas.item later. Ticket #1135.
             auto itemItr=find(g->items.begin(), g->items.end(), canvas.item);
             if (auto v=canvas.item->variableCast())
               v->retype(type);
             if (itemItr!=g->items.end())
               {
                 canvas.item=*itemItr;
                 TCL_obj_deregister("minsky.canvas.item");
                 registerRef(canvas.item,"minsky.canvas.item");
               }
           }
     }

Here is the call graph for this function:

◆ runItemDeletedCallback()

void minsky::MinskyTCL::runItemDeletedCallback ( const Item & )

inlineoverridevirtual

run callback attached to item

Reimplemented from minsky::Minsky.

Definition at line 378 of file minskyTCL.h.

References minsky::Item::deleteCallback.

379 {tclcmd()<<item.deleteCallback<<'\n';}

◆ selectVar()

bool minsky::MinskyTCL::selectVar	(	float	x,
		float	y
	)

inline

Definition at line 226 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::Canvas::item, registerRef(), and minsky::Canvas::selectVar().

                                      {
       bool r=canvas.selectVar(x,y);
       if (r)
         registerRef(canvas.item,"minsky.canvas.item");
       return r;
     }

Here is the call graph for this function:

◆ setBusyCursor()

void minsky::MinskyTCL::setBusyCursor ( )

inlineoverridevirtual

set/clear busy cursor in GUI

Reimplemented from minsky::Minsky.

Definition at line 370 of file minskyTCL.h.

Referenced by loadVariableFromCSV().

371 {tclcmd()<<"setCursor watch\n";}

Here is the caller graph for this function:

◆ setColour()

void minsky::MinskyTCL::setColour	(	std::size_t	i,
		const char *	name
	)

sets the colour of palette item i to Tk acceptable colour name

Definition at line 219 of file minskyTCL.cc.

References minsky::anonymous_namespace{minskyTCL.cc}::scale().

   {
     if (auto p=canvas.item->plotWidgetCast())
       if (i<p->palette.size())
         if (auto c=Tk_GetColor(interp(),Tk_MainWindow(interp()),name))
           {
             auto& pi=p->palette[i];
             pi.colour.r=scale(c->red);
             pi.colour.g=scale(c->green);
             pi.colour.b=scale(c->blue);
             pi.colour.a=1;
           }
         else
           throw runtime_error(string("Colour ")+name+" not understood");
       else
         throw runtime_error("invalid palette index");
     else
       throw runtime_error("Not a plot");
   }

Here is the call graph for this function:

◆ startRecording()

void minsky::MinskyTCL::startRecording ( const char * file )

inline

Definition at line 51 of file minskyTCL.h.

References eventRecord, and minsky::Minsky::minskyVersion.

                                           {
       eventRecord.reset(new std::ofstream(file));
       *eventRecord<<"checkRecordingVersion "<<minskyVersion<<endl;
     }

◆ stopRecording()

void minsky::MinskyTCL::stopRecording ( )

inline

Definition at line 55 of file minskyTCL.h.

References eventRecord.

                          {
       eventRecord.reset();
     }

◆ TCLItem()

std::string minsky::MinskyTCL::TCLItem ( )

inline

create a TCL controlled object that is a reference to item

Returns: a unique TCL command lead in sequence, or empty if no such object is created

Definition at line 236 of file minskyTCL.h.

References minsky::Minsky::canvas, minsky::deleteTclObject< Item >(), minsky::Canvas::item, minsky::minskyTCL_obj(), and minsky::to_string().

                         {
       std::string name="item"+std::to_string(std::size_t(canvas.item.get()));
       if (canvas.item && !TCL_obj_properties().count(name)) {
         canvas.item->TCL_obj(minskyTCL_obj(),name);
         // create a reference to manage object's lifetime
         Tcl_CreateCommand
           (ecolab::interp(), (name+".delete").c_str(),
            (Tcl_CmdProc*)deleteTclObject<Item>,
            (ClientData)(new ItemPtr(canvas.item)),NULL);
       }
       return canvas.item? name: "";
     }

Here is the call graph for this function:

◆ undo()

void minsky::MinskyTCL::undo ( TCL_args args )

inline

restore model to state changes ago

Definition at line 358 of file minskyTCL.h.

References minsky::Minsky::undo().

                              {
       if (args.count) Minsky::undo(args);
       else Minsky::undo();
     }

Here is the call graph for this function:

◆ valueId()

string minsky::MinskyTCL::valueId ( const string & x )

inline

Definition at line 363 of file minskyTCL.h.

References minsky::valueId().

363 {return minsky::valueId(x);}

minsky::valueId

string valueId(const string &name)

construct a valueId from fully qualified name @ name should not be canonicalised

Definition: valueId.cc:75

Here is the call graph for this function:

Member Data Documentation

◆ _defaultFont

std::unique_ptr<char[]> minsky::MinskyTCL::_defaultFont

private

Definition at line 396 of file minskyTCL.h.

◆ defaultFont

ecolab::Accessor<std::string> minsky::MinskyTCL::defaultFont

Initial value:

{
      [this]() {return Minsky::defaultFont();},
      [this](const std::string& x) {return Minsky::defaultFont(x);}
    }

Definition at line 365 of file minskyTCL.h.

◆ eventRecord

std::unique_ptr<std::ostream> minsky::MinskyTCL::eventRecord

Definition at line 50 of file minskyTCL.h.

Referenced by minsky::member_entry_hook(), startRecording(), and stopRecording().

◆ rebuildTCLcommands

bool minsky::MinskyTCL::rebuildTCLcommands =false

Definition at line 45 of file minskyTCL.h.

Referenced by load(), and minsky::member_entry_hook().

The documentation for this struct was generated from the following files:

gui-tk/minskyTCL.h
gui-tk/minskyTCL.cc

Public Member Functions

Static Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ addGodley()

◆ addGroup()

◆ addIntegral()

◆ addLock()

◆ addNote()

◆ addOperation()

◆ addPlot()

◆ addRavel()

◆ addSheet()

◆ addSwitch()

◆ addVariable()

◆ checkMemAllocation()

◆ CLASSDESC_ACCESS()

◆ classifyOp()

◆ clearBusyCursor()

◆ convertVarType()

◆ createGroup()

◆ findObject()

◆ findVariable()

◆ findVariableDefinition()

◆ getCommandData()

◆ getItemAt()

◆ getItemAtFocus()

◆ getValue()

◆ getWireAt()

◆ groupOfItem()

◆ itemFocusFromItem()

◆ itemFromItemFocus()

◆ listAllInstances()

◆ load()

◆ loadVariableFromCSV()

◆ matchingTableColumns()

◆ message()

◆ numOpArgs()

◆ openGodley()

◆ openGroupInCanvas()

◆ openModelInCanvas()

◆ operationIcon()

◆ registerRef()

◆ resetItem()

◆ retypeItem()

◆ runItemDeletedCallback()

◆ selectVar()

◆ setBusyCursor()

◆ setColour()

◆ startRecording()

◆ stopRecording()

◆ TCLItem()

◆ undo()

◆ valueId()

Member Data Documentation

◆ _defaultFont

◆ defaultFont

◆ eventRecord

◆ rebuildTCLcommands
