schema2::Minsky Struct Reference

#include <schema2.h>

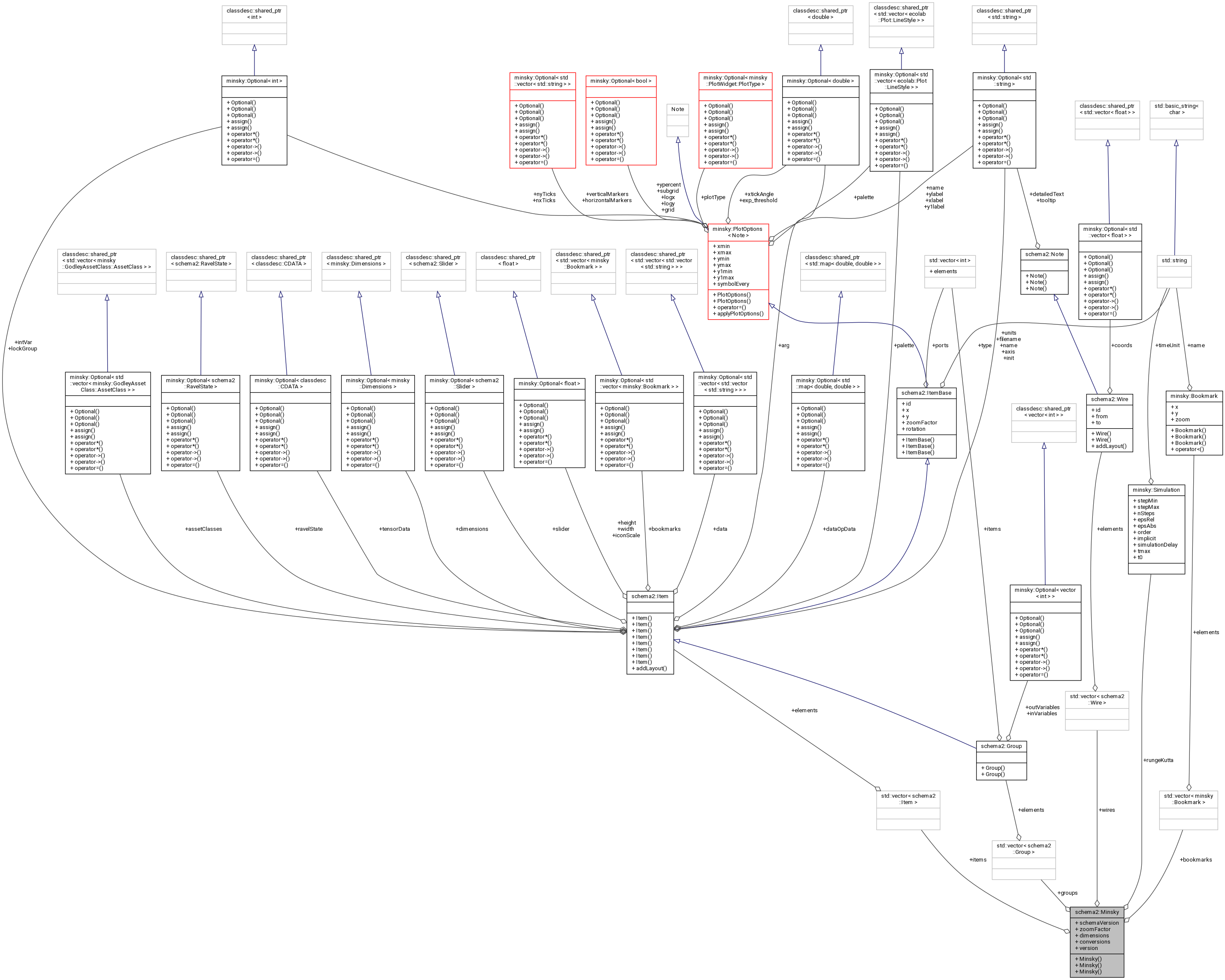

Collaboration diagram for schema2::Minsky:

Public Member Functions
	Minsky ()
	Minsky (const schema1::Minsky &m)
	Minsky (classdesc::xml_unpack_t &data)
	populate schema from XML data More...

Public Attributes
int	schemaVersion =Minsky::version
vector< Wire >	wires
vector< Item >	items
vector< Group >	groups
minsky::Simulation	rungeKutta
double	zoomFactor =1
vector< minsky::Bookmark >	bookmarks
minsky::Dimensions	dimensions
minsky::ConversionsMap	conversions

Static Public Attributes
static const int	version =2

Detailed Description

Definition at line 197 of file schema2.h.

Constructor & Destructor Documentation

Minsky() [1/3]

schema2::Minsky::Minsky ( )

inline

Definition at line 210 of file schema2.h.

: schemaVersion(0) {} // schemaVersion defined on read in

Minsky() [2/3]

schema2::Minsky::Minsky

(

const schema1::Minsky &

m

)

Definition at line 131 of file schema2.cc.

References schema2::Schema1Layout::addItem(), schema1::MinskyModel::godleys, groups, schema1::MinskyModel::groups, items, schema1::Minsky::layout, schema1::Minsky::model, schema1::MinskyModel::notes, schema1::MinskyModel::operations, schema1::MinskyModel::plots, rungeKutta, schema1::MinskyModel::rungeKutta, schema1::MinskyModel::switches, schema1::MinskyModel::variables, wires, schema1::MinskyModel::wires, zoomFactor, and schema1::Minsky::zoomFactor.

  {
    // read in layout into a map indexed by id
    Schema1Layout layout(m.layout);

    for (auto& i: m.model.wires)
      layout.addItem(wires,i);
    for (auto& i: m.model.notes)
      layout.addItem(items,i);
    for (auto& i: m.model.operations)
      layout.addItem(items,i);

    // save a mapping of ports to variables for later use by group
    map<int,pair<int,bool>> portToVar;
    for (auto& i: m.model.variables)
      {
        layout.addItem(items,i);
        for (size_t j=0; j<i.ports.size(); ++j)
          portToVar[i.ports[j]]=make_pair(i.id,j>0);
      }

    for (auto& i: m.model.plots)
      layout.addItem(items,i);
    for (auto& i: m.model.switches)
      layout.addItem(items,i);

    for (auto& i: m.model.godleys)
      {
        layout.addItem(items,i);
        // override any height specifcation with a legacy iconScale parameter
        items.back().height.reset();
        items.back().iconScale=i.zoomFactor/m.zoomFactor;
      }
    for (auto& i: m.model.groups)
      {
        layout.addItem(groups,i);
        for (auto p: i.ports)
          {
            auto v=portToVar.find(p);
            if (v!=portToVar.end())
              {
                if (v->second.second)
                  groups.back().inVariables->push_back(v->second.first);
                else
                  groups.back().outVariables->push_back(v->second.first);
              }
          }
      }

    rungeKutta=m.model.rungeKutta;
    zoomFactor=m.zoomFactor;
  }

Here is the call graph for this function:

Minsky() [3/3]

schema2::Minsky::Minsky ( classdesc::xml_unpack_t &  data )

inline

populate schema from XML data

Definition at line 214 of file schema2.h.

                                       : schemaVersion(0)
    {minsky::loadSchema<schema1::Minsky>(*this,data,"Minsky");}

Member Data Documentation

bookmarks

vector<minsky::Bookmark> schema2::Minsky::bookmarks

Definition at line 206 of file schema2.h.

conversions

minsky::ConversionsMap schema2::Minsky::conversions

Definition at line 208 of file schema2.h.

dimensions

minsky::Dimensions schema2::Minsky::dimensions

Definition at line 207 of file schema2.h.

groups

vector<Group> schema2::Minsky::groups

Definition at line 203 of file schema2.h.

Referenced by Minsky().

items

vector<Item> schema2::Minsky::items

Definition at line 202 of file schema2.h.

Referenced by Minsky().

rungeKutta

minsky::Simulation schema2::Minsky::rungeKutta

Definition at line 204 of file schema2.h.

Referenced by Minsky().

schemaVersion

int schema2::Minsky::schemaVersion =Minsky::version

Definition at line 200 of file schema2.h.

version

const int schema2::Minsky::version =2

static

Definition at line 199 of file schema2.h.

wires

vector<Wire> schema2::Minsky::wires

Definition at line 201 of file schema2.h.

Referenced by Minsky().

zoomFactor

double schema2::Minsky::zoomFactor =1

Definition at line 205 of file schema2.h.

Referenced by Minsky().

---

The documentation for this struct was generated from the following files:

• schema/schema2.h
• schema/schema2.cc
