#include <schema3.h>

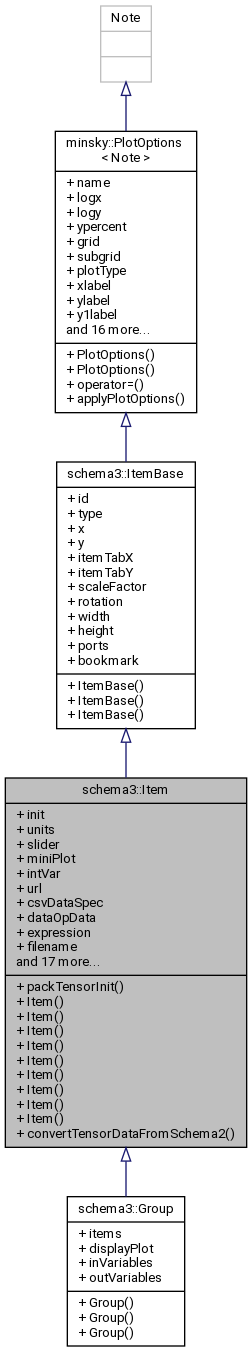

Inheritance diagram for schema3::Item:

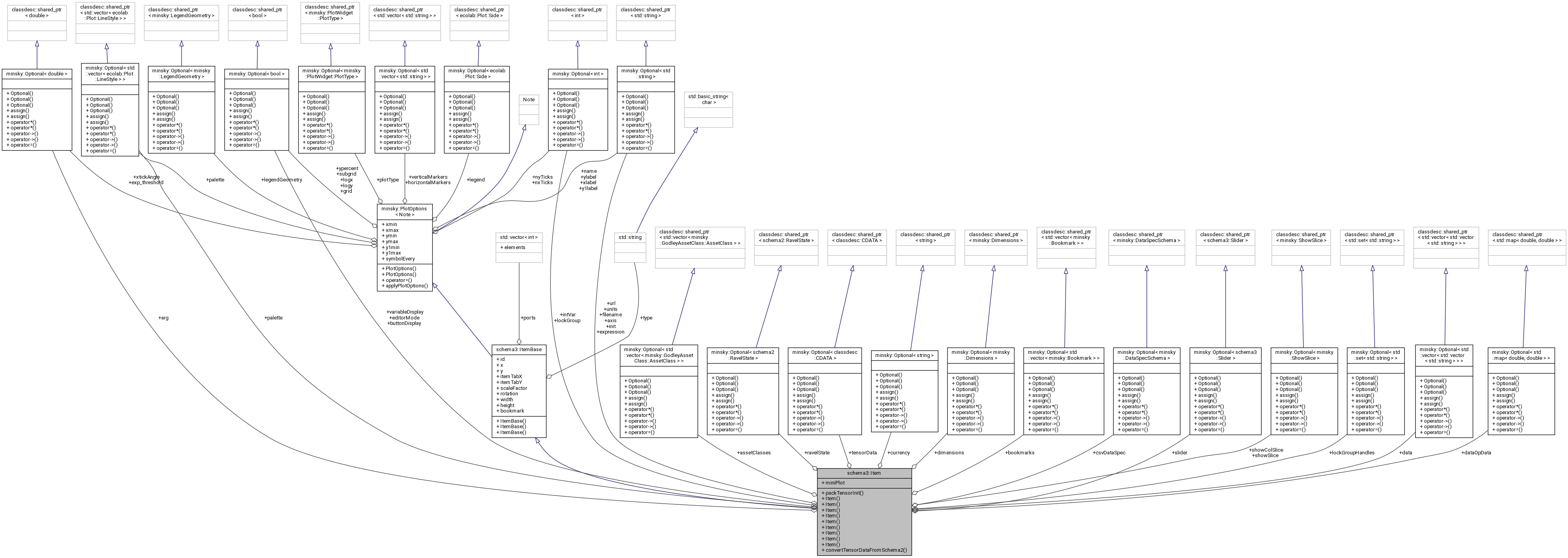

Collaboration diagram for schema3::Item:

Public Member Functions
void	packTensorInit (const minsky::VariableBase &)

	Item ()

	Item (int id, const minsky::Item &it, const std::vector< int > &ports)

	Item (int id, const minsky::VariableBase &v, const std::vector< int > &ports)

	Item (int id, const minsky::OperationBase &o, const std::vector< int > &ports)

	Item (int id, const minsky::GodleyIcon &g, const std::vector< int > &ports)

	Item (int id, const minsky::PlotWidget &p, const std::vector< int > &ports)

	Item (int id, const minsky::SwitchIcon &s, const std::vector< int > &ports)

	Item (int id, const minsky::Group &g, const std::vector< int > &ports)

	Item (const schema2::Item &it)

Public Member Functions inherited from schema3::ItemBase
	ItemBase ()

	ItemBase (int id, const minsky::Item &it, const std::vector< int > &ports)

	ItemBase (const schema2::Item &it, const std::string &type="Item")

Public Member Functions inherited from minsky::PlotOptions< Note >
	PlotOptions ()=default

	PlotOptions (const Note &x)

PlotOptions &	operator= (const PlotWidget &plot)

void	applyPlotOptions (PlotWidget &plot) const

Static Public Member Functions
static Optional< classdesc::CDATA >	convertTensorDataFromSchema2 (const Optional< classdesc::CDATA > &)

Public Attributes
Optional< std::string >	init

Optional< std::string >	units

Optional< Slider >	slider

bool	miniPlot =false

Optional< int >	intVar

Optional< std::string >	url

Optional< minsky::DataSpecSchema >	csvDataSpec

Optional< std::map< double, double > >	dataOpData

Optional< std::string >	expression

Optional< std::string >	filename

Optional< schema2::RavelState >	ravelState

Optional< int >	lockGroup

Optional< std::set< std::string > >	lockGroupHandles

Optional< minsky::Dimensions >	dimensions

Optional< std::string >	axis

Optional< double >	arg

Optional< std::vector< std::vector< std::string > > >	data

Optional< std::vector< minsky::GodleyAssetClass::AssetClass > >	assetClasses

Optional< bool >	editorMode

Optional< bool >	buttonDisplay

Optional< bool >	variableDisplay

Optional< string >	currency

Optional< minsky::ShowSlice >	showSlice

Optional< minsky::ShowSlice >	showColSlice

Optional< std::vector< minsky::Bookmark > >	bookmarks

Optional< classdesc::CDATA >	tensorData

Optional< std::vector< ecolab::Plot::LineStyle > >	palette

Public Attributes inherited from schema3::ItemBase
int	id =-1

std::string	type

float	x =0

float	y =0
	position in canvas, or within group More...

float	itemTabX =nan("")

float	itemTabY =nan("")

float	scaleFactor =1
	scale factor of item on canvas, or within group More...

double	rotation =0
	rotation of icon, in degrees More...

float	width =10

float	height =10

std::vector< int >	ports

bool	bookmark =false

Public Attributes inherited from minsky::PlotOptions< Note >
Optional< std::string >	name

Optional< bool >	logx

Optional< bool >	logy

Optional< bool >	ypercent

Optional< bool >	grid

Optional< bool >	subgrid

Optional< minsky::PlotWidget::PlotType >	plotType

Optional< std::string >	xlabel

Optional< std::string >	ylabel

Optional< std::string >	y1label

Optional< int >	nxTicks

Optional< int >	nyTicks

Optional< double >	xtickAngle

Optional< double >	exp_threshold

double	xmin

double	xmax

double	ymin

double	ymax

double	y1min

double	y1max

unsigned	symbolEvery

Optional< ecolab::Plot::Side >	legend

Optional< LegendGeometry >	legendGeometry

Optional< std::vector< ecolab::Plot::LineStyle > >	palette

Optional< std::vector< std::string > >	horizontalMarkers

Optional< std::vector< std::string > >	verticalMarkers

Detailed Description

Definition at line 105 of file schema3.h.

Constructor & Destructor Documentation

◆ Item() [1/9]

schema3::Item::Item ( )

inline

Definition at line 139 of file schema3.h.

139 {}

◆ Item() [2/9]

schema3::Item::Item	(	int	id,
		const minsky::Item &	it,
		const std::vector< int > &	ports
	)

inline

Definition at line 140 of file schema3.h.

140 : ItemBase(id,it,ports) {}

schema3::ItemBase::ports

std::vector< int > ports

Definition: schema3.h:75

schema3::ItemBase::ItemBase

ItemBase()

Definition: schema3.h:77

◆ Item() [3/9]

schema3::Item::Item	(	int	id,
		const minsky::VariableBase &	v,
		const std::vector< int > &	ports
	)

inline

Definition at line 142 of file schema3.h.

References minsky::VariableBase::enableSlider(), minsky::VariableBase::rawName(), minsky::VariableBase::sliderMax(), minsky::VariableBase::sliderMin(), minsky::VariableBase::sliderStep(), minsky::VariableBase::sliderStepRel(), and minsky::VariableBase::vValue().

                                                                           :
       ItemBase(id,static_cast<const minsky::Item&>(v),ports),
       init(v.init()), miniPlot(v.miniPlotEnabled()) {
       name=v.rawName();
       slider.reset(new Slider(v.sliderStepRel(),v.enableSlider(),v.sliderMin(),v.sliderMax(),v.sliderStep()));
       if (auto vv=v.vValue())
         {
           units=vv->units.str();
           if (!vv->csvDialog.url.empty())
             csvDataSpec=vv->csvDialog.spec.toSchema();
           url=vv->csvDialog.url;
         }
     }

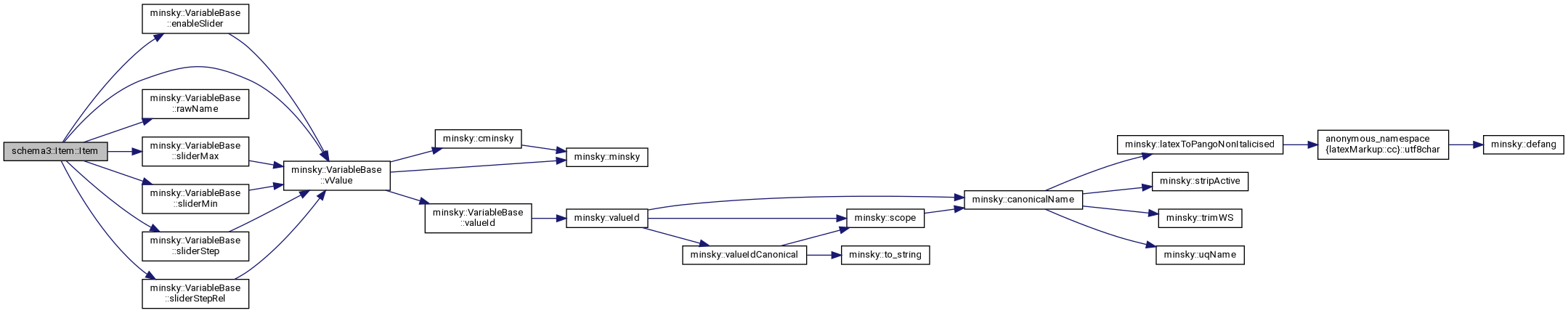

Here is the call graph for this function:

◆ Item() [4/9]

schema3::Item::Item	(	int	id,
		const minsky::OperationBase &	o,
		const std::vector< int > &	ports
	)

inline

Definition at line 155 of file schema3.h.

                                                                            :
       ItemBase(id,static_cast<const minsky::Item&>(o),ports),
       axis(o.axis), arg(o.arg) {}

◆ Item() [5/9]

schema3::Item::Item	(	int	id,
		const minsky::GodleyIcon &	g,
		const std::vector< int > &	ports
	)

inline

Definition at line 158 of file schema3.h.

References minsky::GodleyIcon::table, and minsky::GodleyTable::title.

                                                                         :
       ItemBase(id,static_cast<const minsky::Item&>(g),ports),
       data(g.table.getData()), assetClasses(g.table.assetClass()),
       editorMode(g.editorMode()), buttonDisplay(g.buttonDisplay()),
       variableDisplay(g.variableDisplay()), currency(g.currency)
     {name=g.table.title;}

◆ Item() [6/9]

schema3::Item::Item	(	int	id,
		const minsky::PlotWidget &	p,
		const std::vector< int > &	ports
	)

inline

Definition at line 164 of file schema3.h.

                                                                         :
       ItemBase(id,static_cast<const minsky::Item&>(p),ports),
        palette(p.palette)
     {
       static_cast<PlotOptions&>(*this)=p;
     }

◆ Item() [7/9]

schema3::Item::Item	(	int	id,
		const minsky::SwitchIcon &	s,
		const std::vector< int > &	ports
	)

inline

Definition at line 170 of file schema3.h.

                                                                         :
       ItemBase(id, static_cast<const minsky::Item&>(s),ports)
     {if (s.flipped) rotation=180;}

◆ Item() [8/9]

schema3::Item::Item	(	int	id,
		const minsky::Group &	g,
		const std::vector< int > &	ports
	)

inline

Definition at line 173 of file schema3.h.

References minsky::Group::title.

                                                                    :
       ItemBase(id, static_cast<const minsky::Item&>(g),ports),
       bookmarks(std::vector<minsky::Bookmark>(g.bookmarks.begin(), g.bookmarks.end()))
     {name=g.title;}

◆ Item() [9/9]

schema3::Item::Item ( const schema2::Item & it )

inline

Definition at line 180 of file schema3.h.

References schema2::Item::name.

                                :
       ItemBase(it,it.type), init(it.init), units(it.units),
       slider(it.slider), intVar(it.intVar), dataOpData(it.dataOpData), filename(it.filename),
       ravelState(it.ravelState), lockGroup(it.lockGroup), dimensions(it.dimensions),
       axis(it.axis), arg(it.arg), data(it.data), assetClasses(it.assetClasses),
       bookmarks(it.bookmarks), tensorData(convertTensorDataFromSchema2(it.tensorData)),
       palette(it.palette)
     {name=it.name;}

Member Function Documentation

◆ convertTensorDataFromSchema2()

Optional< classdesc::CDATA > schema3::Item::convertTensorDataFromSchema2 ( const Optional< classdesc::CDATA > & x )

static

Definition at line 110 of file schema3.cc.

References minsky::decode(), minsky::encode(), schema3::pack(), and schema2::unpack().

   {
     Optional<classdesc::CDATA> r;
     if (x)
       {
         auto buf=minsky::decode(*x);
         civita::TensorVal tmp;
         schema2::unpack(buf,tmp);
         buf.reseti();
         pack(buf,tmp);
         r=minsky::encode(buf);
       }
     return r;
   }

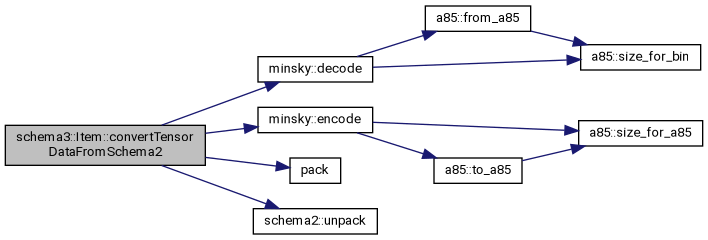

Here is the call graph for this function:

◆ packTensorInit()

void schema3::Item::packTensorInit ( const minsky::VariableBase & v )

Definition at line 285 of file schema3.cc.

References minsky::encode(), schema3::pack(), and minsky::VariableBase::vValue().

   {
     if (auto val=v.vValue())
       if (val->tensorInit.rank())
         {
           pack_t buf;
           pack(buf,val->tensorInit);
           tensorData=minsky::encode(buf);
         }
   }

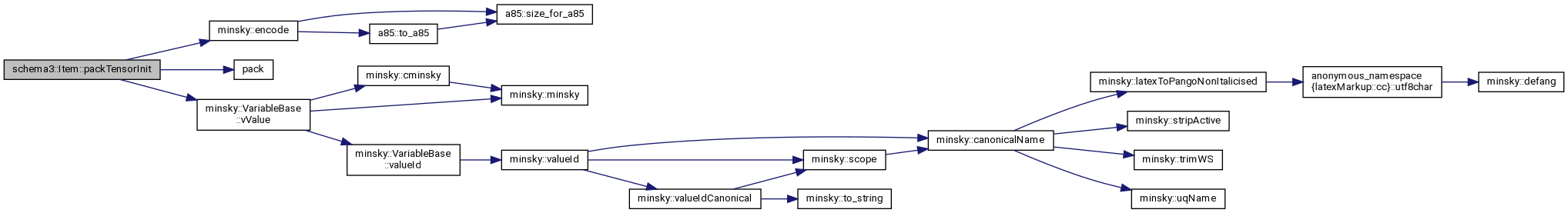

Here is the call graph for this function:

Member Data Documentation

◆ arg

Optional<double> schema3::Item::arg

Definition at line 123 of file schema3.h.

Referenced by schema3::populateItem().

◆ assetClasses

Optional<std::vector<minsky::GodleyAssetClass::AssetClass> > schema3::Item::assetClasses

Definition at line 126 of file schema3.h.

Referenced by schema3::populateItem().

◆ axis

Optional<std::string> schema3::Item::axis

Definition at line 122 of file schema3.h.

Referenced by schema3::populateItem().

◆ bookmarks

Optional<std::vector<minsky::Bookmark> > schema3::Item::bookmarks

Definition at line 133 of file schema3.h.

Referenced by schema3::populateItem().

◆ buttonDisplay

Optional<bool> schema3::Item::buttonDisplay

Definition at line 127 of file schema3.h.

Referenced by schema3::populateItem().

◆ csvDataSpec

Optional<minsky::DataSpecSchema> schema3::Item::csvDataSpec

Definition at line 113 of file schema3.h.

◆ currency

Optional<string> schema3::Item::currency

Definition at line 128 of file schema3.h.

Referenced by schema3::populateItem().

◆ data

Optional<std::vector<std::vector<std::string> > > schema3::Item::data

Definition at line 125 of file schema3.h.

Referenced by schema3::populateItem().

◆ dataOpData

Optional<std::map<double,double> > schema3::Item::dataOpData

Definition at line 114 of file schema3.h.

Referenced by schema3::populateItem().

◆ dimensions

Optional<minsky::Dimensions> schema3::Item::dimensions

Definition at line 120 of file schema3.h.

Referenced by schema3::populateItem().

◆ editorMode

Optional<bool> schema3::Item::editorMode

Definition at line 127 of file schema3.h.

Referenced by schema3::populateItem().

◆ expression

Optional<std::string> schema3::Item::expression

Definition at line 115 of file schema3.h.

Referenced by schema3::populateItem().

◆ filename

Optional<std::string> schema3::Item::filename

Definition at line 116 of file schema3.h.

◆ init

Optional<std::string> schema3::Item::init

Definition at line 107 of file schema3.h.

◆ intVar

Optional<int> schema3::Item::intVar

Definition at line 111 of file schema3.h.

◆ lockGroup

Optional<int> schema3::Item::lockGroup

Definition at line 118 of file schema3.h.

◆ lockGroupHandles

Optional<std::set<std::string> > schema3::Item::lockGroupHandles

Definition at line 119 of file schema3.h.

◆ miniPlot

bool schema3::Item::miniPlot =false

Definition at line 110 of file schema3.h.

Referenced by schema3::populateItem().

◆ palette

Optional<std::vector<ecolab::Plot::LineStyle> > schema3::Item::palette

Definition at line 135 of file schema3.h.

Referenced by schema3::populateItem().

◆ ravelState

Optional<schema2::RavelState> schema3::Item::ravelState

Definition at line 117 of file schema3.h.

Referenced by schema3::populateItem().

◆ showColSlice

Optional<minsky::ShowSlice> schema3::Item::showColSlice

Definition at line 131 of file schema3.h.

Referenced by schema3::populateItem().

◆ showSlice

Optional<minsky::ShowSlice> schema3::Item::showSlice

Definition at line 130 of file schema3.h.

Referenced by schema3::populateItem().

◆ slider

Optional<Slider> schema3::Item::slider

Definition at line 109 of file schema3.h.

Referenced by schema3::populateItem().

◆ tensorData

Optional<classdesc::CDATA> schema3::Item::tensorData

Definition at line 134 of file schema3.h.

◆ units

Optional<std::string> schema3::Item::units

Definition at line 108 of file schema3.h.

◆ url

Optional<std::string> schema3::Item::url

Definition at line 112 of file schema3.h.

◆ variableDisplay

Optional<bool> schema3::Item::variableDisplay

Definition at line 127 of file schema3.h.

Referenced by schema3::populateItem().

The documentation for this struct was generated from the following files:

schema/schema3.h
schema/schema3.cc

Public Member Functions

Static Public Member Functions

Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Item() [1/9]

◆ Item() [2/9]

◆ Item() [3/9]

◆ Item() [4/9]

◆ Item() [5/9]

◆ Item() [6/9]

◆ Item() [7/9]

◆ Item() [8/9]

◆ Item() [9/9]

Member Function Documentation

◆ convertTensorDataFromSchema2()

◆ packTensorInit()

Member Data Documentation

◆ arg

◆ assetClasses

◆ axis

◆ bookmarks

◆ buttonDisplay

◆ csvDataSpec

◆ currency

◆ data

◆ dataOpData

◆ dimensions

◆ editorMode

◆ expression

◆ filename

◆ init

◆ intVar

◆ lockGroup

◆ lockGroupHandles

◆ miniPlot

◆ palette

◆ ravelState

◆ showColSlice

◆ showSlice

◆ slider

◆ tensorData

◆ units

◆ url

◆ variableDisplay
