MathDAG::VariableDAG Class Reference

#include <equations.h>

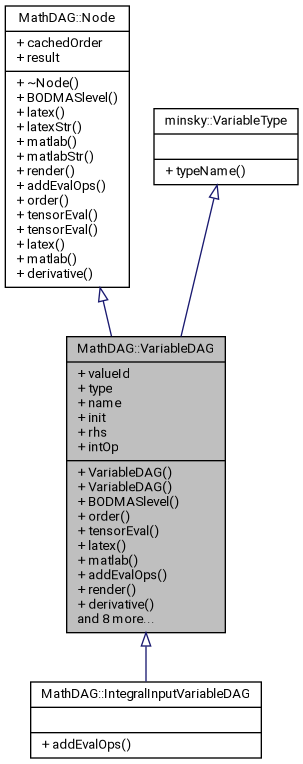

Inheritance diagram for MathDAG::VariableDAG:

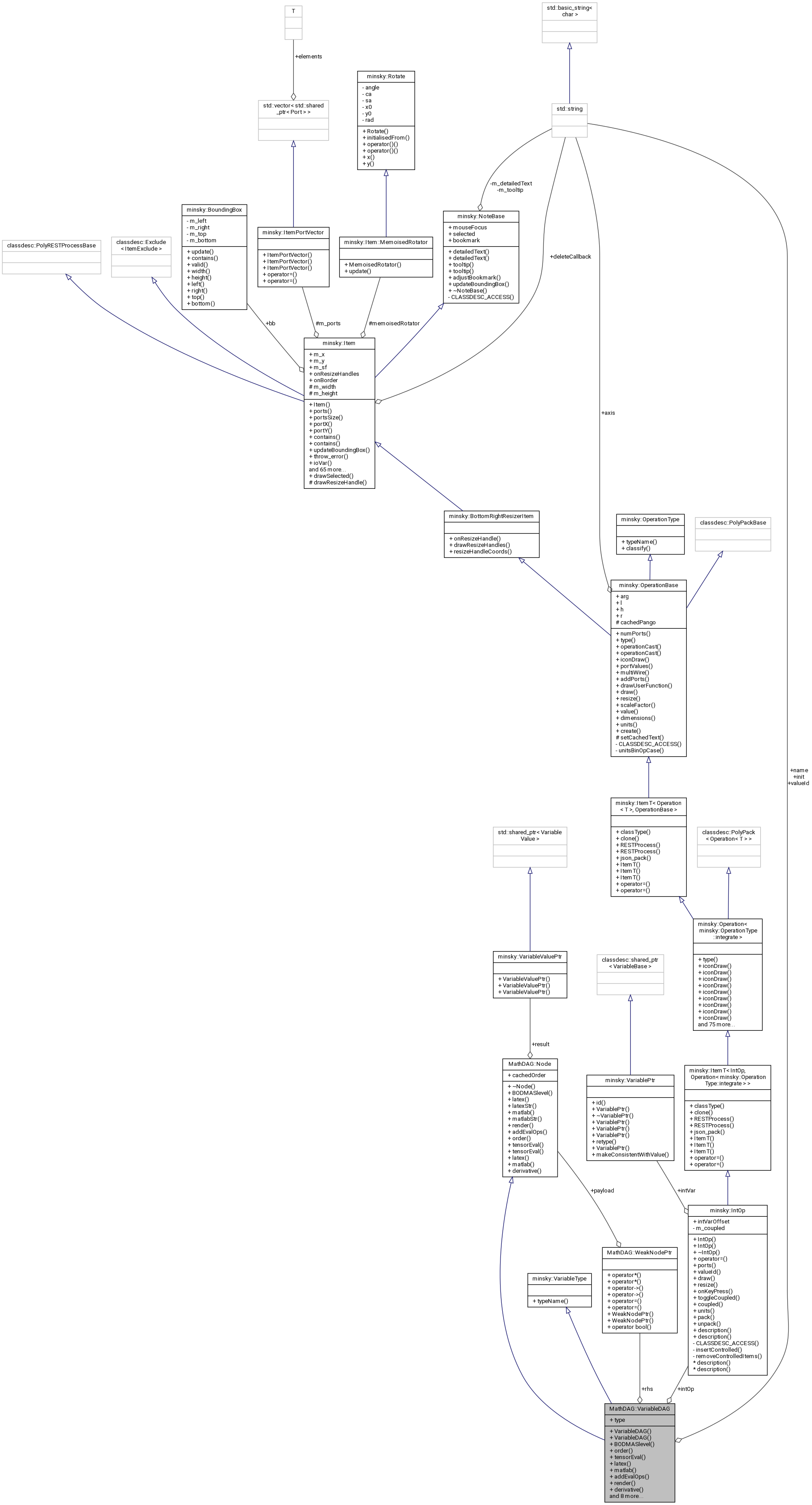

Collaboration diagram for MathDAG::VariableDAG:

Public Member Functions
	VariableDAG ()
	reference to operation if this is an integral variable More...
	VariableDAG (const string &valueId, const string &name, Type type)
int	BODMASlevel () const override
	algebraic heirarchy level, used for working out whether brackets are necessary. More...
int	order (unsigned maxOrder) const override
	returns evaluation order in sequence of variable defintions More...
bool	tensorEval (std::set< const Node *> &) const override
	returns true if the evaluation of this involves tensor processing More...
ostream &	latex (ostream &) const override
	writes LaTeX representation of this DAG to the stream More...
ostream &	matlab (ostream &) const override
	writes a matlab representation of this DAG to the stream More...
VariableValuePtr	addEvalOps (EvalOpVector &, const VariableValuePtr &v={}) override
	adds EvalOps to an EvalOpVector representing this node. More...
void	render (ecolab::cairo::Surface &surf) const override
	renders a visual representation of this node to surf graphic extends right from the current pen position (which needs to be defined), and pen is moved to the right edge of the graphic. The determine bounding box, render into a recording surface, and use width()/height() More...
NodePtr	derivative (SystemOfEquations &) const override
	support for the derivative operator. More...
bool	addTensorOp (EvalOpVector &ev)
	adds a TensorEvalOp, returns true if successful More...
virtual bool	tensorEval (std::set< const Node * > &visited) const=0
	returns true if the evaluation of this involves tensor processing More...
bool	tensorEval ()
	returns true if the evaluation of this involves tensor processing More...
virtual ostream &	latex (ostream &) const=0
	writes LaTeX representation of this DAG to the stream More...
LaTeXManip	latex () const
	used within io streaming More...
virtual ostream &	matlab (ostream &) const=0
	writes a matlab representation of this DAG to the stream More...
MatlabManip	matlab () const
virtual VariableValuePtr	addEvalOps (EvalOpVector &, const VariableValuePtr &result={})=0
	adds EvalOps to an EvalOpVector representing this node. More...
Public Member Functions inherited from MathDAG::Node
virtual	~Node ()
std::string	latexStr () const
std::string	matlabStr () const
bool	tensorEval ()
	returns true if the evaluation of this involves tensor processing More...
LaTeXManip	latex () const
	used within io streaming More...
MatlabManip	matlab () const

Public Attributes
string	valueId
Type	type =undefined
string	name
string	init ="0"
WeakNodePtr	rhs
IntOp *	intOp =0
Public Attributes inherited from MathDAG::Node
int	cachedOrder =-1
VariableValuePtr	result
	reference to where this node's value is stored More...

Additional Inherited Members
Public Types inherited from minsky::VariableType
enum	Type {   undefined, constant, parameter, flow,   integral, stock, tempFlow, numVarTypes }
Static Public Member Functions inherited from minsky::VariableType
static std::string	typeName (int t)

Detailed Description

Definition at line 171 of file equations.h.

Constructor & Destructor Documentation

VariableDAG() [1/2]

MathDAG::VariableDAG::VariableDAG ( )

inline

reference to operation if this is an integral variable

Definition at line 181 of file equations.h.

{}

VariableDAG() [2/2]

MathDAG::VariableDAG::VariableDAG ( const string &  valueId, const string &  name, Type  type  )

inline

Definition at line 182 of file equations.h.

                                                                     :
      valueId(valueId), type(type), name(name) {}

Member Function Documentation

addEvalOps() [1/2]

virtual VariableValuePtr MathDAG::Node::addEvalOps

adds EvalOps to an EvalOpVector representing this node.

Returns

a variable where the result is stored. If a flowVariable has been provided in result, that may be used directly, otherwise a copy operation is added to ensure it receives the result.

addEvalOps() [2/2]

VariableValuePtr MathDAG::VariableDAG::addEvalOps ( EvalOpVector &  , const VariableValuePtr &  result = {}  )

overridevirtual

adds EvalOps to an EvalOpVector representing this node.

Returns

a variable where the result is stored. If a flowVariable has been provided in result, that may be used directly, otherwise a copy operation is added to ensure it receives the result.

Implements MathDAG::Node.

Reimplemented in MathDAG::IntegralInputVariableDAG.

Definition at line 120 of file equations.cc.

References MathDAG::anonymous_namespace{equations.cc}::addTensorOp(), minsky::doOneEvent(), minsky::isValueId(), minsky::minsky(), minsky::VariableType::tempFlow, minsky::VariableType::undefined, minsky::valueId(), and minsky::Minsky::variableValues.

  {
    if (result->idx()<0)
      {
        assert(isValueId(valueId));
        auto ri=minsky::minsky().variableValues.find(valueId);
        if (ri==minsky::minsky().variableValues.end())
          ri=minsky::minsky().variableValues.emplace(valueId,VariableValuePtr(VariableType::tempFlow)).first;
        result=ri->second;
        if (rhs)
          {
            if ((!tensorEval() && !rhs->tensorEval()) || !addTensorOp(ev))
              { // everything scalar, revert to scalar processing
                if (result->idx()<0) result->allocValue();
                rhs->addEvalOps(ev, result);
              }
          }
        else
          if (result->idx()<0) result->allocValue();
      }
    if (r->type()!=VariableType::undefined && r->isFlowVar() && (r!=result || result->isFlowVar()))
      ev.emplace_back(EvalOpPtr(new TensorEval(r,result)));
    assert(result->idx()>=0);
    doOneEvent(true);
    return result;
  }

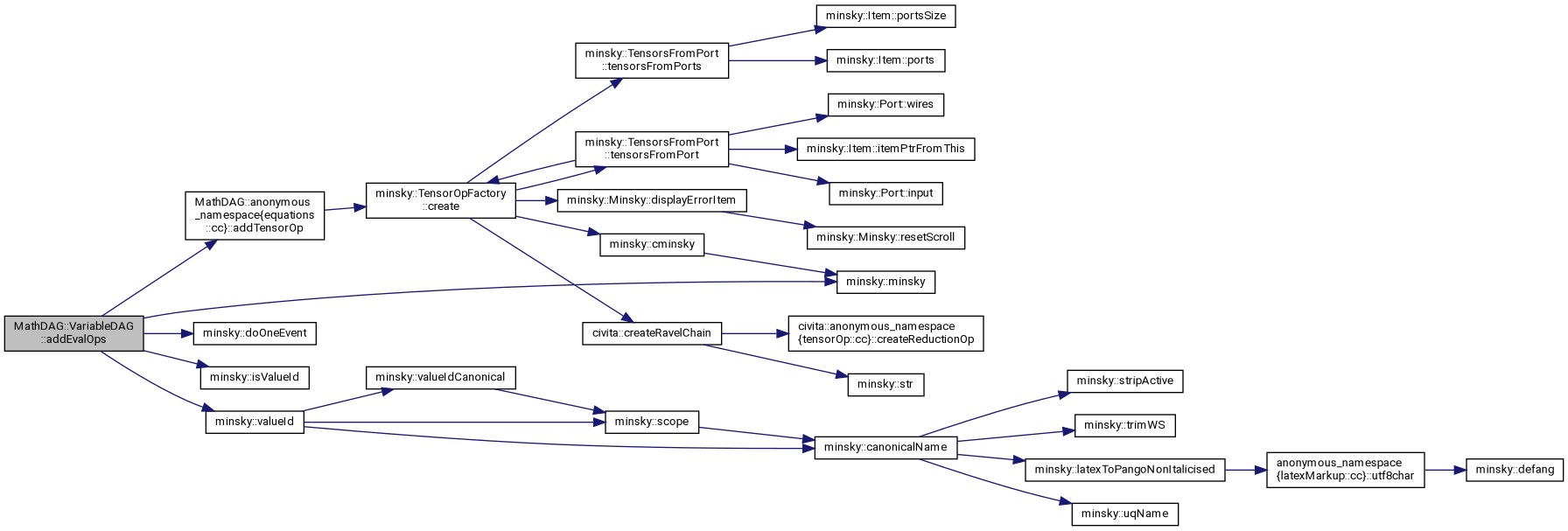

Here is the call graph for this function:

addTensorOp()

bool MathDAG::VariableDAG::addTensorOp

(

EvalOpVector &

ev

)

adds a TensorEvalOp, returns true if successful

Definition at line 111 of file equations.cc.

References MathDAG::anonymous_namespace{equations.cc}::addTensorOp().

  {
    if (rhs)
      if (auto nodeOp=dynamic_cast<OperationDAGBase*>(rhs.payload))
        return MathDAG::addTensorOp(result,*nodeOp,ev);
    return false;
  }

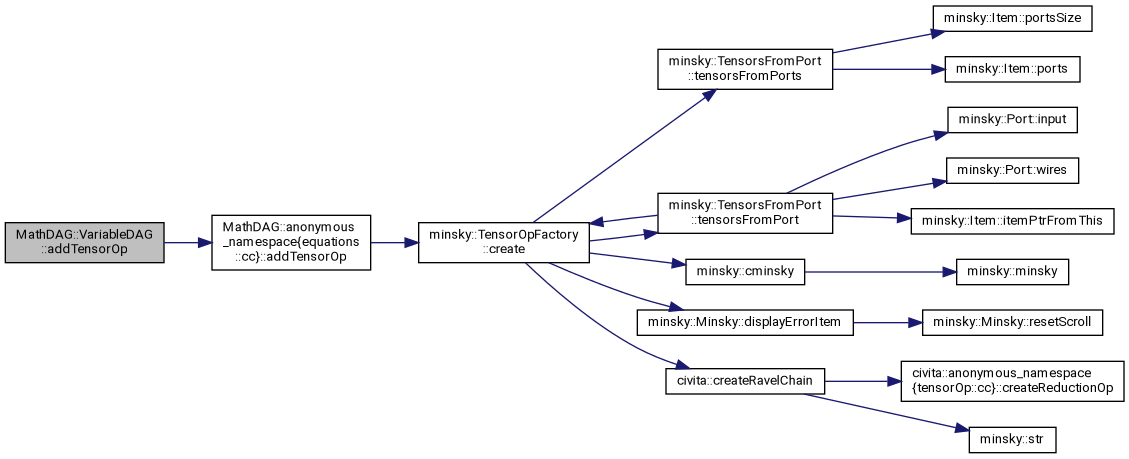

Here is the call graph for this function:

BODMASlevel()

int MathDAG::VariableDAG::BODMASlevel ( ) const

inlineoverridevirtual

algebraic heirarchy level, used for working out whether brackets are necessary.

Implements MathDAG::Node.

Definition at line 184 of file equations.h.

{return 0;}

derivative()

NodePtr MathDAG::VariableDAG::derivative ( SystemOfEquations &  ) const

overridevirtual

support for the derivative operator.

Implements MathDAG::Node.

Definition at line 34 of file derivative.cc.

  {return se.derivative(*this);}

latex() [1/3]

virtual ostream& MathDAG::Node::latex

writes LaTeX representation of this DAG to the stream

latex() [2/3]

LaTeXManip MathDAG::Node::latex

inline

used within io streaming

Definition at line 119 of file equations.h.

{return LaTeXManip(*this);}

latex() [3/3]

ostream & MathDAG::VariableDAG::latex ( ostream &  ) const

overridevirtual

writes LaTeX representation of this DAG to the stream

Implements MathDAG::Node.

Definition at line 98 of file node_latex.cc.

References MathDAG::mathrm().

  {
    if (type==constant)
      return o<<init;
    return o<<mathrm(name);
  }

Here is the call graph for this function:

matlab() [1/3]

MatlabManip MathDAG::Node::matlab

inline

Definition at line 120 of file equations.h.

{return MatlabManip(*this);}

matlab() [2/3]

virtual ostream& MathDAG::Node::matlab

writes a matlab representation of this DAG to the stream

matlab() [3/3]

ostream & MathDAG::VariableDAG::matlab ( ostream &  ) const

overridevirtual

writes a matlab representation of this DAG to the stream

Implements MathDAG::Node.

Definition at line 72 of file node_matlab.cc.

References MathDAG::anonymous_namespace{node_matlab.cc}::validMatlabIdentifier().

  {
    if (type==constant)
      return o<<init;
    return o<<validMatlabIdentifier(name);
  }

Here is the call graph for this function:

order()

int MathDAG::VariableDAG::order ( unsigned  maxOrder ) const

inlineoverridevirtual

returns evaluation order in sequence of variable defintions

Parameters

maxOrder

is used to limit the recursion depth

Implements MathDAG::Node.

Definition at line 185 of file equations.h.

References MathDAG::Node::order().

Referenced by MathDAG::anonymous_namespace{equations.cc}::VariableDefOrder::operator()().

                                                {
      if (rhs) {
        if (cachedOrder>=0) return cachedOrder;
        if (maxOrder==0) throw error("maximum order recursion reached");
        return cachedOrder=rhs->order(maxOrder-1)+1;
      }
      else
        return 0;
    }

Here is the call graph for this function:

Here is the caller graph for this function:

render()

void MathDAG::VariableDAG::render ( ecolab::cairo::Surface &  surf ) const

overridevirtual

renders a visual representation of this node to surf graphic extends right from the current pen position (which needs to be defined), and pen is moved to the right edge of the graphic. The determine bounding box, render into a recording surface, and use width()/height()

Implements MathDAG::Node.

Definition at line 219 of file equationDisplayRender.cc.

References minsky::latexToPango(), MathDAG::mathrm(), and MathDAG::anonymous_namespace{equationDisplayRender.cc}::print().

  {
    print(surf.cairo(), latexToPango(mathrm(name)), Anchor::nw);
  }

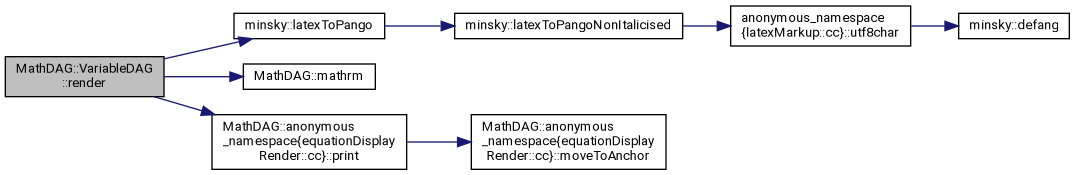

Here is the call graph for this function:

tensorEval() [1/3]

bool MathDAG::VariableDAG::tensorEval ( std::set< const Node *> &  visited ) const

overridevirtual

returns true if the evaluation of this involves tensor processing

Parameters

visited

set to break graph cycles

Implements MathDAG::Node.

Definition at line 106 of file equations.cc.

References minsky::cminsky(), minsky::valueId(), and minsky::Minsky::variableValues.

  {
    return cminsky().variableValues[valueId]->rank()>0;
  }

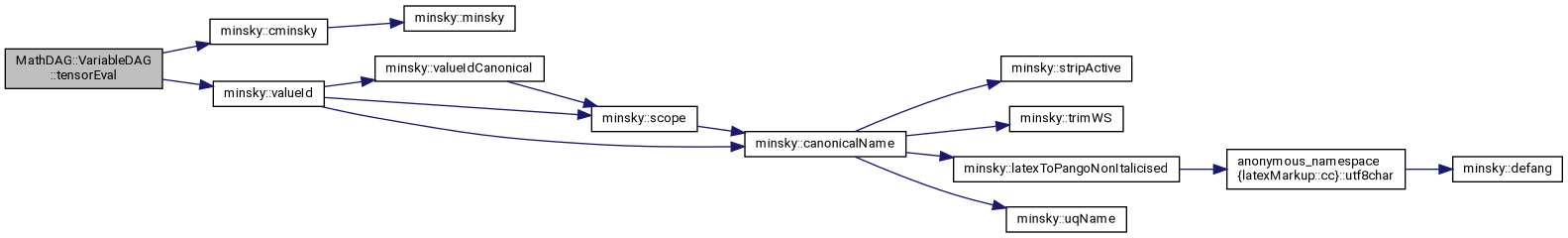

Here is the call graph for this function:

tensorEval() [2/3]

bool MathDAG::Node::tensorEval

inline

returns true if the evaluation of this involves tensor processing

Definition at line 116 of file equations.h.

{std::set<const Node*> visited; return tensorEval(visited);}

tensorEval() [3/3]

virtual bool MathDAG::Node::tensorEval

returns true if the evaluation of this involves tensor processing

Parameters

visited

set to break graph cycles

Member Data Documentation

init

string MathDAG::VariableDAG::init ="0"

Definition at line 177 of file equations.h.

Referenced by MathDAG::anonymous_namespace{equationDisplayRender.cc}::variableRender().

intOp

IntOp* MathDAG::VariableDAG::intOp =0

Definition at line 179 of file equations.h.

Referenced by MathDAG::SystemOfEquations::SystemOfEquations().

name

string MathDAG::VariableDAG::name

Definition at line 176 of file equations.h.

Referenced by MathDAG::SystemOfEquations::derivative(), MathDAG::SystemOfEquations::SystemOfEquations(), and MathDAG::anonymous_namespace{equationDisplayRender.cc}::variableRender().

rhs

WeakNodePtr MathDAG::VariableDAG::rhs

Definition at line 178 of file equations.h.

Referenced by MathDAG::SystemOfEquations::derivative(), MathDAG::SystemOfEquations::SystemOfEquations(), and MathDAG::anonymous_namespace{equationDisplayRender.cc}::variableRender().

type

Type MathDAG::VariableDAG::type =undefined

Definition at line 175 of file equations.h.

Referenced by MathDAG::SystemOfEquations::derivative().

valueId

string MathDAG::VariableDAG::valueId

Definition at line 174 of file equations.h.

Referenced by MathDAG::SystemOfEquations::derivative().

---

The documentation for this class was generated from the following files:

• engine/equations.h
• engine/derivative.cc
• engine/equationDisplayRender.cc
• engine/equations.cc
• engine/node_latex.cc
• engine/node_matlab.cc
