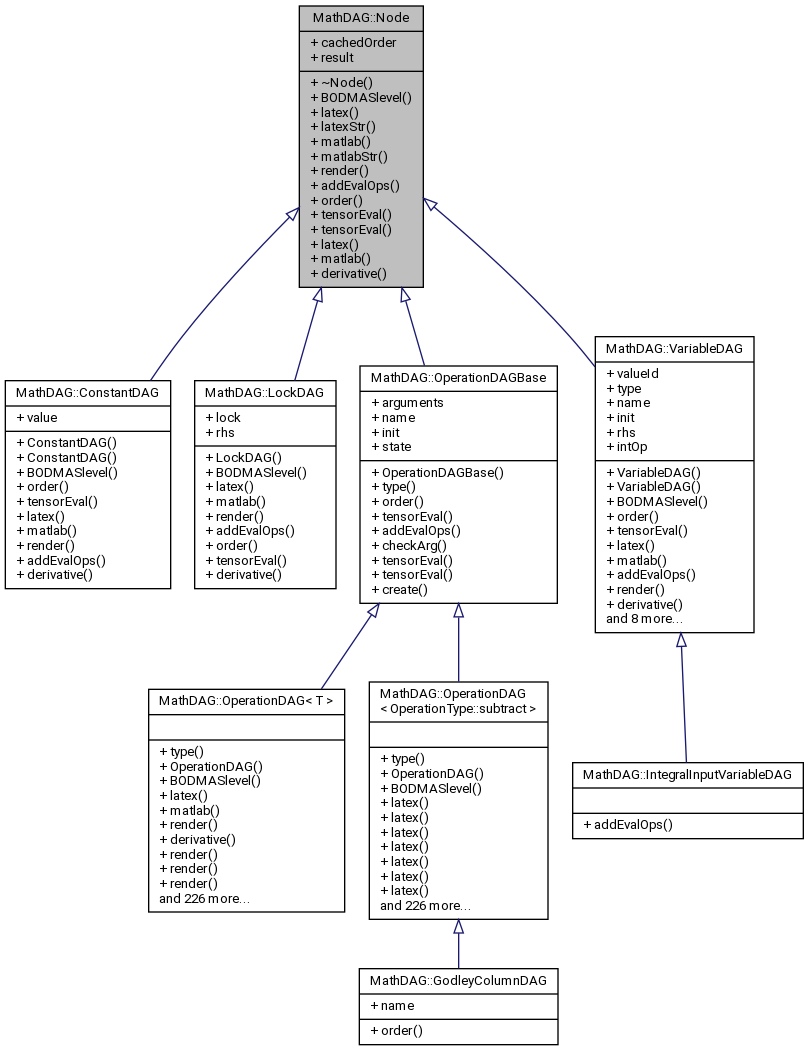

Inheritance diagram for MathDAG::Node:

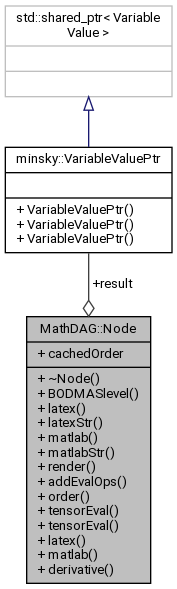

Collaboration diagram for MathDAG::Node:

Public Member Functions
virtual	~Node ()

virtual int	BODMASlevel () const =0
	algebraic heirarchy level, used for working out whether brackets are necessary. More...

virtual ostream &	latex (ostream &) const =0
	writes LaTeX representation of this DAG to the stream More...

std::string	latexStr () const

virtual ostream &	matlab (ostream &) const =0
	writes a matlab representation of this DAG to the stream More...

std::string	matlabStr () const

virtual void	render (ecolab::cairo::Surface &surf) const =0
	renders a visual representation of this node to surf graphic extends right from the current pen position (which needs to be defined), and pen is moved to the right edge of the graphic. The determine bounding box, render into a recording surface, and use width()/height() More...

virtual VariableValuePtr	addEvalOps (EvalOpVector &, const VariableValuePtr &result={})=0
	adds EvalOps to an EvalOpVector representing this node. More...

virtual int	order (unsigned maxOrder) const =0
	returns evaluation order in sequence of variable defintions More...

virtual bool	tensorEval (std::set< const Node *> &visited) const =0
	returns true if the evaluation of this involves tensor processing More...

bool	tensorEval ()
	returns true if the evaluation of this involves tensor processing More...

LaTeXManip	latex () const
	used within io streaming More...

MatlabManip	matlab () const

virtual std::shared_ptr< Node >	derivative (SystemOfEquations &) const =0
	support for the derivative operator. More...

Public Attributes
int	cachedOrder =-1

VariableValuePtr	result
	reference to where this node's value is stored More...

Detailed Description

Definition at line 83 of file equations.h.

Constructor & Destructor Documentation

◆ ~Node()

virtual MathDAG::Node::~Node ( )

inlinevirtual

Definition at line 85 of file equations.h.

85 {}

Member Function Documentation

◆ addEvalOps()

virtual VariableValuePtr MathDAG::Node::addEvalOps	(	EvalOpVector &	,
		const VariableValuePtr &	result = `{}`
	)

pure virtual

adds EvalOps to an EvalOpVector representing this node.

Returns: a variable where the result is stored. If a flowVariable has been provided in result, that may be used directly, otherwise a copy operation is added to ensure it receives the result.

Implemented in MathDAG::LockDAG, MathDAG::OperationDAGBase, MathDAG::IntegralInputVariableDAG, MathDAG::VariableDAG, and MathDAG::ConstantDAG.

Referenced by MathDAG::LockDAG::addEvalOps().

Here is the caller graph for this function:

◆ BODMASlevel()

virtual int MathDAG::Node::BODMASlevel ( ) const

pure virtual

algebraic heirarchy level, used for working out whether brackets are necessary.

Implemented in MathDAG::LockDAG, MathDAG::OperationDAG< T >, MathDAG::OperationDAG< OperationType::subtract >, MathDAG::VariableDAG, and MathDAG::ConstantDAG.

◆ derivative()

virtual std::shared_ptr<Node> MathDAG::Node::derivative ( SystemOfEquations & ) const

pure virtual

support for the derivative operator.

Implemented in MathDAG::LockDAG, MathDAG::OperationDAG< T >, MathDAG::OperationDAG< OperationType::subtract >, MathDAG::VariableDAG, and MathDAG::ConstantDAG.

Referenced by MathDAG::SystemOfEquations::derivative().

Here is the caller graph for this function:

◆ latex() [1/2]

virtual ostream& MathDAG::Node::latex ( ostream & ) const

pure virtual

writes LaTeX representation of this DAG to the stream

Referenced by MathDAG::operator<<().

Here is the caller graph for this function:

◆ latex() [2/2]

LaTeXManip MathDAG::Node::latex ( ) const

inline

used within io streaming

Definition at line 119 of file equations.h.

119 {return LaTeXManip(*this);}

◆ latexStr()

std::string MathDAG::Node::latexStr ( ) const

inline

Definition at line 92 of file equations.h.

References MathDAG::latex().

92 {ostringstream o; latex(o); return o.str();}

MathDAG::Node::latex

LaTeXManip latex() const

used within io streaming

Definition: equations.h:119

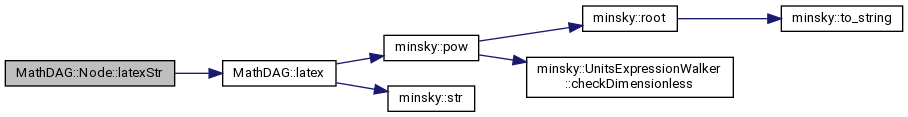

Here is the call graph for this function:

◆ matlab() [1/2]

virtual ostream& MathDAG::Node::matlab ( ostream & ) const

pure virtual

writes a matlab representation of this DAG to the stream

Referenced by MathDAG::operator<<().

Here is the caller graph for this function:

◆ matlab() [2/2]

MatlabManip MathDAG::Node::matlab ( ) const

inline

Definition at line 120 of file equations.h.

120 {return MatlabManip(*this);}

◆ matlabStr()

std::string MathDAG::Node::matlabStr ( ) const

inline

Definition at line 95 of file equations.h.

95 {ostringstream o; matlab(o); return o.str();}

MathDAG::Node::matlab

MatlabManip matlab() const

Definition: equations.h:120

◆ order()

virtual int MathDAG::Node::order ( unsigned maxOrder ) const

pure virtual

returns evaluation order in sequence of variable defintions

Parameters

maxOrder is used to limit the recursion depth

Implemented in MathDAG::LockDAG, MathDAG::GodleyColumnDAG, MathDAG::OperationDAGBase, MathDAG::VariableDAG, and MathDAG::ConstantDAG.

Referenced by MathDAG::VariableDAG::order(), and MathDAG::LockDAG::order().

Here is the caller graph for this function:

◆ render()

virtual void MathDAG::Node::render ( ecolab::cairo::Surface & surf ) const

pure virtual

renders a visual representation of this node to surf graphic extends right from the current pen position (which needs to be defined), and pen is moved to the right edge of the graphic. The determine bounding box, render into a recording surface, and use width()/height()

Implemented in MathDAG::LockDAG, MathDAG::OperationDAG< T >, MathDAG::OperationDAG< OperationType::subtract >, MathDAG::VariableDAG, and MathDAG::ConstantDAG.

Referenced by MathDAG::anonymous_namespace{equationDisplayRender.cc}::variableRender().

Here is the caller graph for this function:
