wiring.tcl File Reference

Go to the source code of this file.

Namespaces

 godley


Functions

 addToolTipToTearOff text menu tornOffMenu

 addOpMenu menu op

 hoverMouse

 wrapHoverMouse op x y

 get_pointer_x c

 get_pointer_y c

 zoom factor

 zoomAt x0 y0 factor

 handleEscapeKey

 addVariablePostModal

 addVariable

 addConstant

 addParameter

 addConstantOrVariable

 addOperationKey op

 addPlotKey

 addNewGodleyItemKey

 textInput char

 textOK

 canvasKeyPress N A s

 deleteKey x y

 rightMouseGodley x y X Y

 bookmarkAt x y X Y

 canvasContext x y X Y

 saveSelection

 doubleButton x y

 wireContextMenu x y

 renameVariableInstances

 renameIntegralInstances

 findDefinition

 incrCase delta

 gotoInstance vid

 deleteInstance vid

 findAllInstances

 contextMenu x y X Y

 exportItemAsCSV

 exportItemAsImg

 flip_default

 deiconifyEditVar

 deiconifyInitVar

 deiconifyEditConstant

 deiconifyEditOperation

 closeEditWindow window

 editVar

 setDataValue

 setIntegralIValue

 cleanEditConstantConfig

 configEditConstantForIntegral

 configEditConstantForData

 editItem

 importData

 initRandom

 doInitRandom

 deiconifyNote

 postNote item

 OKnote item

 tout args

 godley::export


Function Documentation

◆ addConstant()

addConstant

Definition at line 381 of file wiring.tcl.

References addConstantOrVariable().

381 proc addConstant {} {
382  global varInput varType initVar_name
383  set varType constant
384  set varInput(title) "Create Constant"
385  addConstantOrVariable
386  .wiring.initVar.$initVar_name configure -state disabled
387 }

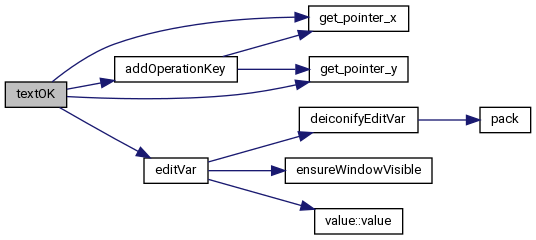

Here is the call graph for this function:

◆ addConstantOrVariable()

addConstantOrVariable

Definition at line 397 of file wiring.tcl.

References deiconifyInitVar(), and ensureWindowVisible().

Referenced by addConstant(), addParameter(), and addVariable().

397 proc addConstantOrVariable {} {
398  global varInput varType
399  set varInput(Name) ""
400  set varInput(Value) ""
401  set varInput(Units) ""
402  set varInput(Rotation) [minsky.canvas.defaultRotation]
403  set varInput(Type) $varType
404  set "varInput(Short description)" ""
405  set "varInput(Detailed description)" ""
406  deiconifyInitVar
407  resetItem
408  garbageCollect
409  .wiring.initVar.entry10 configure -values [minsky.canvas.model.accessibleVars]
410  ::tk::TabToWindow $varInput(initial_focus);
411  ensureWindowVisible .wiring.initVar
412  grab set .wiring.initVar
413  wm transient .wiring.initVar
414 }
Here is the call graph for this function:

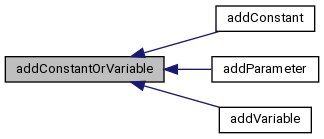

Here is the caller graph for this function:

◆ addNewGodleyItemKey()

addNewGodleyItemKey

Definition at line 428 of file wiring.tcl.

References get_pointer_x(), and get_pointer_y().

428 proc addNewGodleyItemKey {} {
429  addGodley
430  canvas.mouseUp [get_pointer_x .wiring.canvas] [get_pointer_y .wiring.canvas]
431 }
Here is the call graph for this function:

◆ addOperationKey()

addOperationKey   op

Definition at line 418 of file wiring.tcl.

References get_pointer_x(), and get_pointer_y().

Referenced by textOK().

418 proc addOperationKey {op} {
419  addOperation $op
420  canvas.mouseUp [get_pointer_x .wiring.canvas] [get_pointer_y .wiring.canvas]
421 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ addOpMenu()

addOpMenu   menu op

Definition at line 145 of file wiring.tcl.

145 proc addOpMenu {menu op} {
146  $menu add command -label $op -image [set op]Img -command "minsky.addOperation $op"
147  tooltip $menu -index [$menu index last] $op
148 }

◆ addParameter()

addParameter

Definition at line 389 of file wiring.tcl.

References addConstantOrVariable().

389 proc addParameter {} {
390  global varInput varType initVar_name
391  set varType parameter
392  set varInput(title) "Create Parameter"
393  addConstantOrVariable
394  .wiring.initVar.$initVar_name configure -state normal
395 }
Here is the call graph for this function:

◆ addPlotKey()

addPlotKey

Definition at line 423 of file wiring.tcl.

References get_pointer_x(), and get_pointer_y().

423 proc addPlotKey {} {
424  addPlot
425  canvas.mouseUp [get_pointer_x .wiring.canvas] [get_pointer_y .wiring.canvas]
426 }
Here is the call graph for this function:

◆ addToolTipToTearOff()

addToolTipToTearOff   text menu tornOffMenu

Definition at line 34 of file wiring.tcl.

34 proc addToolTipToTearOff {text menu tornOffMenu} {
35  for {set i 1} {$i<=[$menu index last]} {incr i} {
36  tooltip $tornOffMenu -index $i [$menu entrycget $i -label]
37  }
38 }

◆ addVariable()

addVariable

Definition at line 372 of file wiring.tcl.

References addConstantOrVariable().

372 proc addVariable {} {
373  global varInput varType initVar_name
374  set varType flow
375  set varInput(title) "Create Variable"
376  addConstantOrVariable
377  .wiring.initVar.$initVar_name configure -state normal
378 }
Here is the call graph for this function:

◆ addVariablePostModal()

addVariablePostModal

Definition at line 348 of file wiring.tcl.

References closeEditWindow().

348 proc addVariablePostModal {} {
349  global globals
350  global varInput
351  global varType
352
353  set name [string trim $varInput(Name)]
354  set varExists [variableValues.count $name]
355  minsky.addVariable $name $varInput(Type)
356  canvas.itemFocus.init $varInput(Value)
357  canvas.itemFocus.setUnits $varInput(Units)
358  if {!$varExists} {
359  getValue [canvas.itemFocus.valueId]
360  canvas.itemFocus.rotation [set varInput(Rotation)]
361 # canvas.itemFocus.tooltip [set "varInput(Short description)"]
362 # canvas.itemFocus.detailedText [set "varInput(Detailed description)"]
363  canvas.itemFocus.sliderMax [set "varInput(Slider Bounds: Max)"]
364  canvas.itemFocus.sliderMin [set "varInput(Slider Bounds: Min)"]
365  canvas.itemFocus.sliderStep [set "varInput(Slider Step Size)"]
366  canvas.itemFocus.sliderBoundsSet 1
367  }
368  closeEditWindow .wiring.initVar
369 }
Here is the call graph for this function:

◆ bookmarkAt()

bookmarkAt   x y X Y

Definition at line 564 of file wiring.tcl.

References buttonBar(), and pack().

564 proc bookmarkAt {x y X Y} {
565  # centre x,y in the visible canvas
566  set delx [expr 0.5*[.wiring.canvas cget -width]-$x + [minsky.canvas.model.x]]
567  set dely [expr 0.5*[.wiring.canvas cget -height]-$y+[minsky.canvas.model.y]]
568  minsky.canvas.model.moveTo $delx $dely
569
570  toplevel .getBookmarkName
571  wm title .getBookmarkName "Enter bookmark label"
572  entry .getBookmarkName.text -width 30
573  pack .getBookmarkName.text
574  buttonBar .getBookmarkName {
575  minsky.canvas.model.addBookmark [.getBookmarkName.text get]
576  }
577  grab set .getBookmarkName
578  wm transient .getBookmarkName
579  wm geometry .getBookmarkName +$X+$Y
580 }
Here is the call graph for this function:

◆ canvasContext()

canvasContext   x y X Y

Definition at line 583 of file wiring.tcl.

References getClipboard().

583 proc canvasContext {x y X Y} {
584  .wiring.context delete 0 end
585  .wiring.context add command -label Help -command {help DesignCanvas}
586  .wiring.context add command -label "Cut" -command cut
587  .wiring.context add command -label "Copy selection" -command "minsky.copy"
588  .wiring.context add command -label "Save selection as" -command saveSelection
589  .wiring.context add command -label "Paste selection" -command pasteAt
590  if {[getClipboard]==""} {
591  .wiring.context entryconfigure end -state disabled
592  }
593  .wiring.context add command -label "Hide defining groups of selected variables" -command "minsky.canvas.pushDefiningVarsToTab"
594  .wiring.context add command -label "Show all defining groups on canvas" -command "minsky.canvas.showDefiningVarsOnCanvas"
595  .wiring.context add command -label "Show all plots on tab" -command "minsky.canvas.showPlotsOnTab"
596  .wiring.context add command -label "Bookmark here" -command "bookmarkAt $x $y $X $Y"
597  .wiring.context add command -label "Group" -command "minsky.createGroup"
598  .wiring.context add command -label "Lock selected Ravels" -command "minsky.canvas.lockRavelsInSelection"
599  .wiring.context add command -label "Unlock selected Ravels" -command "minsky.canvas.unlockRavelsInSelection"
600  .wiring.context add command -label "Open master group" -command "openModelInCanvas"
601  tk_popup .wiring.context $X $Y
602 }
Here is the call graph for this function:

◆ canvasKeyPress()

canvasKeyPress   N A s

Definition at line 489 of file wiring.tcl.

References get_pointer_x(), and get_pointer_y().

489 proc canvasKeyPress {N A s} {
490  return [canvas.keyPress $N [encoding convertto utf-8 $A] $s \
491  [get_pointer_x .wiring.canvas] [get_pointer_y .wiring.canvas]]
492 }
Here is the call graph for this function:

◆ cleanEditConstantConfig()

cleanEditConstantConfig

Definition at line 1259 of file wiring.tcl.

Referenced by configEditConstantForData(), and configEditConstantForIntegral().

1259 proc cleanEditConstantConfig {} {
1260  global rowdict
1261  foreach name [array names rowdict] {
1262  set row $rowdict($name)
1263  catch {grid remove .wiring.editConstant.label$row .wiring.editConstant.entry$row}
1264  }
1265 }
Here is the caller graph for this function:

◆ closeEditWindow()

closeEditWindow   window

Definition at line 1192 of file wiring.tcl.

Referenced by addVariablePostModal(), doInitRandom(), and OKnote().

1192 proc closeEditWindow {window} {
1193  grab release $window
1194  destroy $window
1195 }
Here is the caller graph for this function:

◆ configEditConstantForData()

configEditConstantForData

Definition at line 1284 of file wiring.tcl.

References cleanEditConstantConfig().

Referenced by editItem().

1284 proc configEditConstantForData {} {
1285  global rowdict
1286  cleanEditConstantConfig
1287  set i 10
1288  set items {
1289  "Name"
1290  "Rotation"
1291  }
1292  if [llength [info commands minsky.canvas.item.expression]] {lappend items "Expression"}
1293
1294  foreach var $items {
1295  set row $rowdict($var)
1296  grid .wiring.editConstant.label$row -row $i -column 10 -sticky e
1297  grid .wiring.editConstant.entry$row -row $i -column 20 -sticky ew -columnspan 2
1298  incr i 10
1299  }
1300 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ configEditConstantForIntegral()

configEditConstantForIntegral

Definition at line 1267 of file wiring.tcl.

References cleanEditConstantConfig().

Referenced by editItem().

1267 proc configEditConstantForIntegral {} {
1268  global rowdict
1269  cleanEditConstantConfig
1270  set i 10
1271  foreach var {
1272  "Name"
1273  "Value"
1274  "Units"
1275  "Rotation"
1276  } {
1277  set row $rowdict($var)
1278  grid .wiring.editConstant.label$row -row $i -column 10 -sticky e
1279  grid .wiring.editConstant.entry$row -row $i -column 20 -sticky ew -columnspan 2
1280  incr i 10
1281  }
1282 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ contextMenu()

contextMenu   x y X Y

Definition at line 737 of file wiring.tcl.

References ravelContextItems().

Referenced by rightMouseGodley(), and rightMouseGroup().

737 proc contextMenu {x y X Y} {
738  set item minsky.canvas.item
739  .wiring.context delete 0 end
740  .wiring.context add command -label Help -command "help [$item.classType]"
741  .wiring.context add command -label Description -command "postNote item"
742  # find out what type of item we're referring to
743  switch -regex [$item.classType] {
744  "Variable*|VarConstant" {
745  catch {
746  if {[llength [minsky.canvas.item.dims]]==0} {
747  .wiring.context add command -label "Value [minsky.canvas.item.value]"
748  } else {
749  .wiring.context add command -label "Dims [minsky.canvas.item.dims]"
750  }
751  }
752  .wiring.context add command -label "Find definition" -command "findDefinition"
753  .wiring.context add command -label "Select all instances" -command {
754  canvas.selectAllVariables
755  }
756  .wiring.context add command -label "Find all instances" -command {
757  findAllInstances
758  }
759  .wiring.context add command -label "Rename all instances" -command {
760  renameVariableInstances
761  }
762  .wiring.context add command -label "Edit" -command "editItem"
763  .wiring.context add command -label "Copy item" -command "canvas.copyItem"
764  if {![inputWired [$item.valueId]]} {
765  .wiring.context add command -label "Add integral" -command "addIntegral"
766  }
767  .wiring.context add command -label "Flip" -command "$item.flip; flip_default"
768  if {[$item.type]=="parameter"} {
769  .wiring.context add command -label "Import CSV" -command {CSVImportDialog}
770  .wiring.context add command -label "Display CSV values on tab" -command {setupPickDimMenu}
771  }
772  .wiring.context add command -label "Export as CSV" -command exportItemAsCSV
773  }
774  "Operation*|IntOp|DataOp|UserFunction" {
775  set portValues "unknown"
776  catch {set portValues [$item.portValues]}
777  .wiring.context add command -label "Port values $portValues"
778  .wiring.context add command -label "Edit" -command "editItem"
779  if {[$item.type]=="data"} {
780  .wiring.context add command -label "Import Data" \
781  -command "importData"
782  .wiring.context add command -label "Initialise Random" \
783  -command "initRandom"
784  }
785  .wiring.context add command -label "Copy item" -command "canvas.copyItem"
786  .wiring.context add command -label "Flip" -command "$item.flip; flip_default"
787  if {[$item.type]=="integrate"} {
788  .wiring.context add command -label "Toggle var binding" -command "minsky.canvas.item.toggleCoupled; canvas.requestRedraw"
789  .wiring.context add command -label "Select all instances" -command {
790  canvas.selectAllVariables
791  }
792  .wiring.context add command -label "Rename all instances" -command {
793  renameIntegralInstances
794  }
795  }
796  }
797  "PlotWidget" {
798  .wiring.context add command -label "Expand" -command "plotDoubleClick [TCLItem]"
799  .wiring.context add command -label "Make Group Plot" -command "$item.makeDisplayPlot"
800  .wiring.context add command -label "Options" -command "doPlotOptions $item"
801  .wiring.context add command -label "Pen Styles" -command "penStyles $item"
802  .wiring.context add command -label "Export as CSV" -command exportItemAsCSV
803  .wiring.context add command -label "Export resolution factor: [$item.resolutionScaleFactor]" -command "setExportResolutionFactor $item"
804
805  .wiring.context add command -label "Export as Image" -command exportItemAsImg
806  }
807  "GodleyIcon" {
808  .wiring.context add command -label "Open Godley Table" -command "openGodley [minsky.openGodley]"
809  .wiring.context add command -label "Title" -command {
810  textEntryPopup .editGodleyTitle [minsky.canvas.item.table.title] {minsky.canvas.item.table.title [.editGodleyTitle.entry get]; canvas.requestRedraw}
811  }
812  .wiring.context add command -label "Set currency" -command {
813  textEntryPopup .godleyCurrency {} {minsky.canvas.item.setCurrency [.godleyCurrency.entry get]}
814  }
815  global editorMode buttonDisplay variableDisplay
816  set editorMode [$item.editorMode]
817  set buttonDisplay [$item.buttonDisplay]
818  set variableDisplay [$item.variableDisplay]
819  .wiring.context add checkbutton -label "Editor mode" -command "$item.toggleEditorMode" -variable editorMode
820  .wiring.context add checkbutton -label "Row/Col buttons" -command "$item.toggleButtons" -variable buttonDisplay
821  .wiring.context add checkbutton -label "Display variables" -command "$item.toggleVariableDisplay" -variable variableDisplay
822  .wiring.context add command -label "Copy flow variables" -command "canvas.copyAllFlowVars"
823  .wiring.context add command -label "Copy stock variables" -command "canvas.copyAllStockVars"
824  .wiring.context add command -label "Export to file" -command "godley::export"
825  }
826  "Group" {
827  .wiring.context add command -label "Edit" -command "groupEdit"
828  .wiring.context add command -label "Open in canvas" -command "openGroupInCanvas"
829  .wiring.context add command -label "Zoom to display" -command "canvas.zoomToDisplay"
830  .wiring.context add command -label "Remove plot icon" -command "$item.removeDisplayPlot"
831  .wiring.context add command -label "Copy" -command "canvas.copyItem"
832  .wiring.context add command -label "Make subroutine" -command "$item.makeSubroutine"
833  .wiring.context add command -label "Save group as" -command "group::save"
834  .wiring.context add command -label "Flip" -command "$item.flip; flip_default"
835  .wiring.context add command -label "Flip Contents" -command "$item.flipContents; canvas.requestRedraw"
836  .wiring.context add command -label "Ungroup" -command "canvas.ungroupItem; canvas.requestRedraw"
837  }
838  "Item" {
839  .wiring.context add command -label "Copy item" -command "canvas.copyItem"
840  }
841  SwitchIcon {
842  .wiring.context add command -label "Add case" -command "incrCase 1"
843  .wiring.context add command -label "Delete case" -command "incrCase -1"
844  .wiring.context add command -label "Flip" -command "$item.flipped [expr ![minsky.canvas.item.flipped]]; canvas.requestRedraw"
845  }
846  Ravel {ravelContextItems}
847  Lock {
848  if [$item.locked] {
849  .wiring.context add command -label "Unlock" -command $item.toggleLocked
850  } else {
851  .wiring.context add command -label "Lock" -command $item.toggleLocked
852  }
853  }
854  }
855
856  # common trailer
857 # .wiring.context add command -label "Raise" -command "raiseItem $tag"
858 # .wiring.context add command -label "Lower" -command "lowerItem $tag"
859  .wiring.context add command -label "Browse object" -command "obj_browser minsky.canvas.item.*"
860  .wiring.context add command -label "Delete [minsky.canvas.item.classType]" -command "canvas.deleteItem"
861  tk_popup .wiring.context $X $Y
862 }

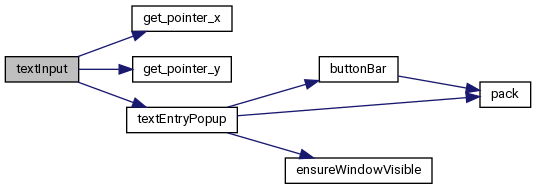

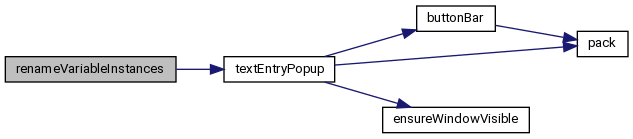

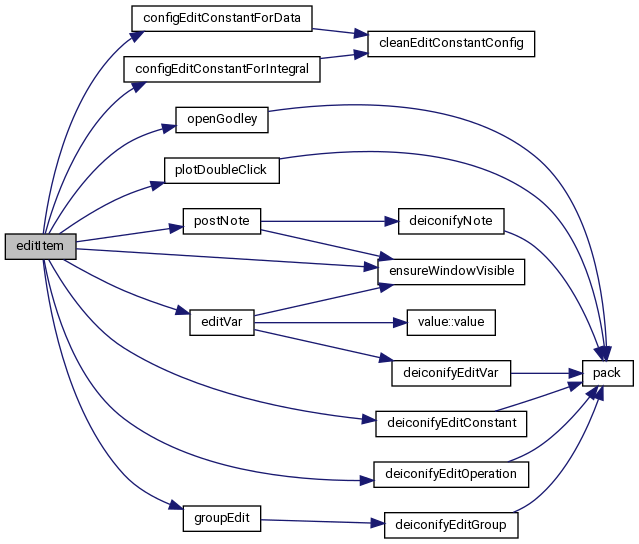

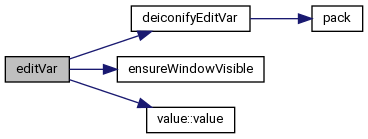

Here is the call graph for this function:

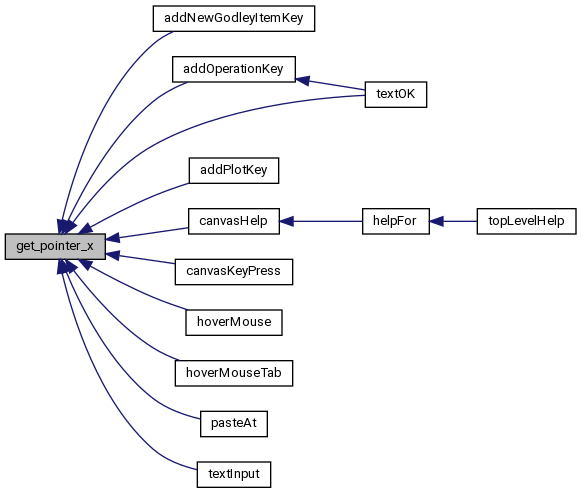

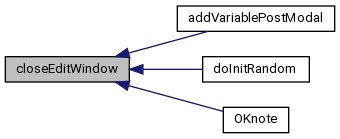

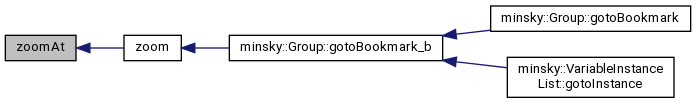

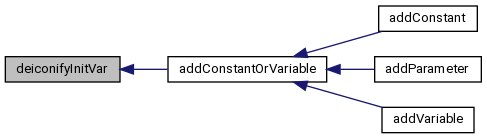

Here is the caller graph for this function:

◆ deiconifyEditConstant()

deiconifyEditConstant

Definition at line 1091 of file wiring.tcl.

References pack().

Referenced by editItem().

1091 proc deiconifyEditConstant {} {
1092  if {![winfo exists .wiring.editConstant]} {
1093  toplevel .wiring.editConstant
1094  wm resizable .wiring.editConstant 0 0
1095  wm transient .wiring.editConstant .wiring
1096
1097  global constInput rowdict
1098  set row 0
1099  grid [label .wiring.editConstant.title -textvariable constInput(title)] -row $row -column 0 -columnspan 999 -pady 10
1100  frame .wiring.editConstant.buttonBar
1101  button .wiring.editConstant.buttonBar.ok -text OK -command {eval $constInput(command)}
1102  button .wiring.editConstant.buttonBar.cancel -text Cancel -command {eval $constInput(cancelCommand)}
1103  pack .wiring.editConstant.buttonBar.ok [label .wiring.editConstant.buttonBar.spacer -width 2] .wiring.editConstant.buttonBar.cancel -side left -pady 10
1104  grid .wiring.editConstant.buttonBar -row 999 -column 0 -columnspan 1000
1105
1106  foreach var {
1107  "Name"
1108  "Value"
1109  "Expression"
1110  "Units"
1111  "Rotation"
1112  "Slider Bounds: Max"
1113  "Slider Bounds: Min"
1114  "Slider Step Size"
1115  } {
1116  set rowdict($var) $row
1117  label .wiring.editConstant.label$row -text $var
1118  entry .wiring.editConstant.entry$row -textvariable constInput($var)
1119  incr row 10
1120  }
1121  set constInput(initial_focus) .wiring.editConstant.entry$rowdict(Name)
1122  # setup textvariable for label of "Value"
1123  set row "$rowdict(Value)"
1124  .wiring.editConstant.label$row configure -textvariable constInput(ValueLabel)
1125
1126  # adjust "Slider Step Size" row to include "relative" radiobutton
1127  set row "$rowdict(Slider Step Size)"
1128  grid configure .wiring.editConstant.entry$row -columnspan 1
1129  grid [checkbutton .wiring.editConstant.checkbox$row -text "relative" -variable "constInput(relative)"] -row $row -column 21 -sticky ew -columnspan 1
1130
1131  bind .wiring.editConstant <Key-Return> {invokeOKorCancel .wiring.editConstant.buttonBar}
1132  bind .wiring.editConstant <Key-Escape> {.wiring.editConstant.buttonBar.cancel invoke}
1133
1134  } else {
1135  wm deiconify .wiring.editConstant
1136  }
1137 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ deiconifyEditOperation()

deiconifyEditOperation

Definition at line 1138 of file wiring.tcl.

References pack().

Referenced by editItem().

1138 proc deiconifyEditOperation {} {
1139  if {![winfo exists .wiring.editOperation]} {
1140  global opInput
1141  toplevel .wiring.editOperation
1142  wm resizable .wiring.editOperation 0 0
1143  wm title .wiring.editOperation "Edit Operation"
1144  wm transient .wiring.editOperation .wiring
1145
1146  frame .wiring.editOperation.buttonBar
1147  label .wiring.editOperation.title -textvariable opInput(title)
1148  pack .wiring.editOperation.title -pady 10
1149  button .wiring.editOperation.buttonBar.ok -text OK -command {
1150  minsky.canvas.item.rotation [set opInput(Rotation)]
1151  minsky.canvas.item.axis [set opInput(Axis)]
1152  minsky.canvas.item.arg [set opInput(Argument)]
1153  closeEditWindow .wiring.editOperation
1154  }
1155  button .wiring.editOperation.buttonBar.cancel -text Cancel -command {
1156  closeEditWindow .wiring.editOperation}
1157  bind .wiring.editOperation <Key-Return> {invokeOKorCancel .wiring.editOperation.buttonBar}
1158  bind .wiring.editOperation <Key-Escape> {.wiring.editOperation.buttonBar.cancel invoke}
1159  pack .wiring.editOperation.buttonBar.ok [label .wiring.editOperation.buttonBar.spacer -width 2] .wiring.editOperation.buttonBar.cancel -side left -pady 10
1160  pack .wiring.editOperation.buttonBar -side bottom
1161
1162
1163  frame .wiring.editOperation.rotation
1164  label .wiring.editOperation.rotation.label -text "Rotation" -width 10
1165  entry .wiring.editOperation.rotation.value -width 20 -textvariable opInput(Rotation)
1166  pack .wiring.editOperation.rotation.value .wiring.editOperation.rotation.label -side right
1167  pack .wiring.editOperation.rotation
1168  set opInput(initial_focus) .wiring.editOperation.rotation.value
1169
1170  frame .wiring.editOperation.axis
1171  label .wiring.editOperation.axis.label -text "Axis" -width 10
1172  ttk::combobox .wiring.editOperation.axis.value -width 20 -textvariable opInput(Axis)
1173  pack .wiring.editOperation.axis.value .wiring.editOperation.axis.label -side right
1174  pack .wiring.editOperation.axis
1175  tooltip .wiring.editOperation.axis.label "Some tensor operations operate along a particular axis"
1176
1177  frame .wiring.editOperation.arg
1178  label .wiring.editOperation.arg.label -text "Argument" -width 10
1179  ttk::combobox .wiring.editOperation.arg.value -width 20 -textvariable opInput(Argument)
1180  pack .wiring.editOperation.arg.value .wiring.editOperation.arg.label -side right
1181  pack .wiring.editOperation.arg
1182
1183  tooltip .wiring.editOperation.arg.label "Some operations have an argument, such as the difference operation"
1184  } else {
1185  wm deiconify .wiring.editOperation
1186  }
1187  .wiring.editOperation.axis.value configure -values [minsky.canvas.item.dimensions]
1188  set opInput(Axis) [minsky.canvas.item.axis]
1189  set opInput(Argument) [minsky.canvas.item.arg]
1190 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ deiconifyEditVar()

deiconifyEditVar

Definition at line 909 of file wiring.tcl.

References pack().

Referenced by editVar().

909 proc deiconifyEditVar {} {
910  if {![winfo exists .wiring.editVar]} {
911  toplevel .wiring.editVar
912  wm resizable .wiring.editVar 0 0
913  wm title .wiring.editVar "Edit Variable"
914  wm transient .wiring.editVar .wiring
915
916  set row 0
917  grid [label .wiring.editVar.title -textvariable editVarInput(title)] -row $row -column 0 -columnspan 999 -pady 10
918
919  global rowdict
920  global editVarInput
921  set rowdict(Name) 10
922  grid [label .wiring.editVar.label10 -text "Name"] -row 10 -column 10 -sticky e
923  grid [ttk::combobox .wiring.editVar.entry10 -textvariable editVarInput(Name)] -row 10 -column 20 -sticky ew -columnspan 2
924
925  set rowdict(Type) 20
926  grid [label .wiring.editVar.label20 -text "Type"] -row 20 -column 10 -sticky e
927  grid [ttk::combobox .wiring.editVar.entry20 -textvariable editVarInput(Type) \
928  -state readonly -values "constant parameter flow integral stock"] \
929  -row 20 -column 20 -sticky ew -columnspan 2
930
931
932
933  set row 30
934  foreach var {
935  "Initial Value"
936  "Units"
937  "Rotation"
938  "Short description"
939  "Detailed description"
940  "Slider Bounds: Max"
941  "Slider Bounds: Min"
942  "Slider Step Size"
943  } {
944  set rowdict($var) $row
945  grid [label .wiring.editVar.label$row -text $var] -row $row -column 10 -sticky e
946  grid [entry .wiring.editVar.entry$row -textvariable editVarInput($var)] -row $row -column 20 -sticky ew -columnspan 2
947  incr row 10
948  }
949  set editVarInput(initial_focus_value) ".wiring.editVar.entry$rowdict(Initial Value)"
950  set editVarInput(units_focus_value) ".wiring.editVar.entry$rowdict(Units)"
951  set editVarInput(initial_focus_rotation) .wiring.editVar.entry$rowdict(Rotation)
952
953  # disable or enable the name field depending on type being selected
954  # constants cannot edit name, and neither constant nor flows allow units to be edited
955  bind .wiring.editVar.entry20 <<ComboboxSelected>> {
956  switch [.wiring.editVar.entry20 get] {
957  "constant" {
958  .wiring.editVar.entry10 configure -state disabled
959  #units
960  .wiring.editVar.entry40 configure -state disabled
961  }
962  "flow" {
963  .wiring.editVar.entry10 configure -state normal
964  .wiring.editVar.entry40 configure -state disabled
965  }
966  default {
967  .wiring.editVar.entry10 configure -state normal
968  .wiring.editVar.entry40 configure -state normal
969  }
970  }
971  }
972
973  # initialise variable type when selected from combobox
974  bind .wiring.editVar.entry10 <<ComboboxSelected>> {
975  getValue [minsky.canvas.item.valueIdInCurrentScope [.wiring.editVar.entry10 get]]
976  .wiring.editVar.entry20 set [value.type]
977  }
978
979  frame .wiring.editVar.buttonBar
980  button .wiring.editVar.buttonBar.ok -text OK -command {
981  set item minsky.canvas.item
982  $item.init $editVarInput(Initial Value)
983  $item.setUnits $editVarInput(Units)
984  $item.rotation $editVarInput(Rotation)
985 # $item.tooltip $editVarInput(Short description)
986 # $item.detailedText $editVarInput(Detailed description)
987  $item.sliderMax $editVarInput(Slider Bounds: Max)
988  $item.sliderMin $editVarInput(Slider Bounds: Min)
989  $item.sliderStep $editVarInput(Slider Step Size)
990  $item.sliderStepRel $editVarInput(relative)
991  retypeItem $editVarInput(Type)
992  canvas.renameItem $editVarInput(Name)
993
994  makeVariablesConsistent
995  catch reset
996  closeEditWindow .wiring.editVar
997  }
998  # adjust "Slider Step Size" row to include "relative" radiobutton
999  set row "$rowdict(Slider Step Size)"
1000  grid configure .wiring.editVar.entry$row -columnspan 1
1001  grid [checkbutton .wiring.editVar.checkbox$row -text "relative" -variable "editVarInput(relative)"] -row $row -column 21 -sticky ew -columnspan 1
1002
1003  button .wiring.editVar.buttonBar.cancel -text Cancel -command {
1004  closeEditWindow .wiring.editVar}
1005  pack .wiring.editVar.buttonBar.ok -side left -pady 10
1006  if {[minsky.canvas.item.type]=="parameter"} {
1007  button .wiring.editVar.buttonBar.import -text "Import CSV" -command {
1008  .wiring.editVar.buttonBar.ok invoke
1009  CSVImportDialog
1010  }
1011  pack .wiring.editVar.buttonBar.import -side left -pady 10
1012  }
1013
1014  pack [label .wiring.editVar.buttonBar.spacer -width 2] .wiring.editVar.buttonBar.cancel -side left -pady 10
1015  grid .wiring.editVar.buttonBar -row 999 -column 0 -columnspan 1000
1016  bind .wiring.editVar <Key-Return> {invokeOKorCancel .wiring.editVar.buttonBar}
1017  bind .wiring.editVar <Key-Escape> {.wiring.editVar.buttonBar.cancel invoke}
1018  } else {
1019  wm deiconify .wiring.editVar
1020  }
1021 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ deiconifyInitVar()

deiconifyInitVar

Definition at line 1023 of file wiring.tcl.

References pack().

Referenced by addConstantOrVariable().

1023 proc deiconifyInitVar {} {
1024  if {![winfo exists .wiring.initVar]} {
1025  toplevel .wiring.initVar
1026  wm resizable .wiring.initVar 0 0
1027  wm title .wiring.initVar "Specify variable name"
1028  wm transient .wiring.initVar .wiring
1029
1030  set row 0
1031  grid [label .wiring.initVar.title -textvariable varInput(title)] -row $row -column 0 -columnspan 999 -pady 10
1032  frame .wiring.initVar.buttonBar
1033  button .wiring.initVar.buttonBar.ok -text OK -command "addVariablePostModal"
1034  button .wiring.initVar.buttonBar.cancel -text Cancel -command {
1035  closeEditWindow .wiring.initVar}
1036  pack .wiring.initVar.buttonBar.ok [label .wiring.initVar.buttonBar.spacer -width 2] .wiring.initVar.buttonBar.cancel -side left -pady 10
1037  grid .wiring.initVar.buttonBar -row 999 -column 0 -columnspan 1000
1038  bind .wiring.initVar <Key-Return> {invokeOKorCancel .wiring.initVar.buttonBar}
1039  bind .wiring.initVar <Key-Escape> {.wiring.initVar.buttonBar.cancel invoke}
1040
1041  global rowdict
1042  global varInput initVar_name
1043  set rowdict(Name) 10
1044  set initVar_name entry10
1045  grid [label .wiring.initVar.label10 -text Name] -row 10 -column 10 -sticky e
1046  grid [ttk::combobox .wiring.initVar.entry10 -textvariable varInput(Name)] -row 10 -column 20 -sticky ew -columnspan 2
1047
1048  set rowdict(Type) 20
1049  grid [label .wiring.initVar.label20 -text "Type"] -row 20 -column 10 -sticky e
1050  grid [ttk::combobox .wiring.initVar.entry20 -textvariable varInput(Type) \
1051  -state readonly -values "constant parameter flow integral"] \
1052  -row 20 -column 20 -sticky ew -columnspan 2
1053
1054  # disable or enable the name field depending on type being selected
1055  bind .wiring.initVar.entry20 <<ComboboxSelected>> {
1056  if {[.wiring.initVar.entry20 get]=="constant"} {
1057  .wiring.initVar.entry10 configure -state disabled
1058  } else {
1059  .wiring.initVar.entry10 configure -state normal
1060  }
1061  }
1062
1063  # initialise variable type when selected from combobox
1064  bind .wiring.initVar.entry10 <<ComboboxSelected>> {
1065  getValue [.wiring.initVar.entry10 get]
1066  .wiring.initVar.entry20 set [value.type]
1067  }
1068
1069  set row 30
1070  foreach var {
1071  "Value"
1072  "Units"
1073  "Rotation"
1074  "Short description"
1075  "Detailed description"
1076  "Slider Bounds: Max"
1077  "Slider Bounds: Min"
1078  "Slider Step Size"
1079  } {
1080  set rowdict($var) $row
1081  grid [label .wiring.initVar.label$row -text $var] -row $row -column 10 -sticky e
1082  grid [entry .wiring.initVar.entry$row -textvariable varInput($var)] -row $row -column 20 -sticky ew -columnspan 2
1083  incr row 10
1084  }
1085  set varInput(initial_focus) .wiring.initVar.entry$rowdict(Name)
1086  } else {
1087  wm deiconify .wiring.initVar
1088  }
1089 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ deiconifyNote()

deiconifyNote

Definition at line 1408 of file wiring.tcl.

References pack().

Referenced by postNote().

1408 proc deiconifyNote {} {
1409  if {![winfo exists .wiring.note]} {
1410  toplevel .wiring.note
1411  frame .wiring.note.tooltip
1412  label .wiring.note.tooltip.bookmark -text "Bookmark?"
1413  checkbutton .wiring.note.tooltip.bookmarkCheck
1414  label .wiring.note.tooltip.label -text "Short description"
1415  entry .wiring.note.tooltip.entry -width 40 -justify left
1416  pack .wiring.note.tooltip.bookmark .wiring.note.tooltip.bookmarkCheck .wiring.note.tooltip.label .wiring.note.tooltip.entry -side left
1417  text .wiring.note.text -wrap word
1418  frame .wiring.note.buttons
1419  button .wiring.note.buttons.cancel -text "Cancel" -command {closeEditWindow .wiring.note}
1420  button .wiring.note.buttons.ok -text "OK" -command OKnote
1421  bind .wiring.note <Key-Escape> {.wiring.note.buttons.cancel invoke}
1422  pack .wiring.note.buttons.cancel .wiring.note.buttons.ok -side left
1423  pack .wiring.note.tooltip .wiring.note.text .wiring.note.buttons
1424  } else {
1425  wm deiconify .wiring.note
1426  }
1427 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ deleteInstance()

deleteInstance   vid

Definition at line 710 of file wiring.tcl.

710 proc deleteInstance vid {
711  global .instanceList$vid.variableList
712  if [llength [info commands [set .instanceList$vid.variableList].delete]] {
713  [set .instanceList$vid.variableList].delete
714  }
715 }

◆ deleteKey()

deleteKey   x y

Definition at line 530 of file wiring.tcl.

References cut().

530 proc deleteKey {x y} {
531  if {![canvas.selection.empty]} {
532  cut
533  } elseif [getItemAt $x $y] {
534  canvas.deleteItem
535  } elseif [getWireAt $x $y] {
536  canvas.deleteWire
537  }
538 }
Here is the call graph for this function:

◆ doInitRandom()

doInitRandom

Definition at line 1403 of file wiring.tcl.

References closeEditWindow().

1403 proc doInitRandom {} {
1404  minsky.canvas.item.initRandom [.wiring.initRandom.xmin.entry get] [.wiring.initRandom.xmax.entry get] [.wiring.initRandom.numVals.entry get]
1405  closeEditWindow .wiring.initRandom
1406 }
Here is the call graph for this function:

◆ doubleButton()

doubleButton   x y

Definition at line 616 of file wiring.tcl.

References editItem(), and reset().

616 proc doubleButton {x y} {
617  if [getItemAt $x $y] {
618  if {[canvas.item.classType]=="Lock"} {
619  canvas.item.toggleLocked
620  reset
621  } else {
622  selectVar $x $y
623  editItem
624  }
625  } else {
626  # For ticket 1092. Reinstate delete handle user interaction
627  canvas.delHandle $x $y
628  }
629 }
Here is the call graph for this function:

◆ editItem()

editItem

Definition at line 1302 of file wiring.tcl.

References configEditConstantForData(), configEditConstantForIntegral(), deiconifyEditConstant(), deiconifyEditOperation(), editVar(), ensureWindowVisible(), groupEdit(), openGodley(), plotDoubleClick(), and postNote().

Referenced by doubleButton().

1302 proc editItem {} {
1303  global constInput varInput editVarInput opInput
1304  set item minsky.canvas.item
1305  switch -regexp [$item.classType] {
1306  "Variable*|VarConstant" {editVar}
1307  "Operation*" {
1308  set opType [minsky.canvas.item.type]
1309  set opInput(title) [minsky.canvas.item.type]
1310  set opInput(Rotation) [minsky.canvas.item.rotation]
1311  deiconifyEditOperation
1312  ::tk::TabToWindow $opInput(initial_focus);
1313  ensureWindowVisible .wiring.editOperation
1314  grab set .wiring.editOperation
1315  wm transient .wiring.editOperation
1316  }
1317  "IntOp|DataOp|UserFunction" {
1318  set constInput(Value) ""
1319  set "constInput(Slider Bounds: Min)" ""
1320  set "constInput(Slider Bounds: Max)" ""
1321  set "constInput(Slider Step Size)" ""
1322  deiconifyEditConstant
1323  wm title .wiring.editConstant "Edit Integral"
1324  set constInput(ValueLabel) "Initial Value"
1325  if {[$item.classType]=="IntOp"} {
1326  set constInput(Value) [$item.intVar.init]
1327  set constInput(Units) [$item.intVar.unitsStr]
1328  set setValue setIntegralIValue
1329  configEditConstantForIntegral
1330  } else {
1331  set setValue setDataValue
1332  configEditConstantForData
1333  }
1334  set constInput(Name) [$item.description]
1335  set constInput(title) $constInput(Name)
1336  set constInput(Rotation) [$item.rotation]
1337  if [llength [info commands minsky.canvas.item.expression]] {
1338  set constInput(Expression) [$item.expression]
1339  }
1340  # value needs to be regotten, as var name may have changed
1341  set constInput(command) "
1342  $setValue
1343  closeEditWindow .wiring.editConstant
1344  "
1345  set constInput(cancelCommand) "closeEditWindow .wiring.editConstant"
1346
1347  ::tk::TabToWindow $constInput(initial_focus);
1348  ensureWindowVisible .wiring.editConstant
1349  grab set .wiring.editConstant
1350  wm transient .wiring.editConstant
1351  }
1352  "Group" {groupEdit}
1353  "GodleyIcon" {openGodley [minsky.openGodley]}
1354  # plot widgets are slightly different, in that double-click
1355  # expands the plot, rather than edits.
1356  "PlotWidget" {plotDoubleClick [TCLItem]}
1357  "Item" {postNote item}
1358  }
1359 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ editVar()

editVar

Definition at line 1197 of file wiring.tcl.

References deiconifyEditVar(), ensureWindowVisible(), and value.value().

Referenced by editItem(), and textOK().

1197 proc editVar {} {
1198  global editVarInput
1199  set item minsky.canvas.item
1200  getValue [$item.valueId]
1201  deiconifyEditVar
1202  wm title .wiring.editVar "Edit [$item.name]"
1203  # populate combobox with existing variable names
1204  .wiring.editVar.entry10 configure -values [$item.accessibleVars]
1205
1206
1207  set "editVarInput(Name)" [$item.name]
1208  set "editVarInput(Type)" [$item.type]
1209  set "editVarInput(Initial Value)" [$item.init]
1210  set "editVarInput(Units)" [value.units.str]
1211  set "editVarInput(Rotation)" [$item.rotation]
1212  set "editVarInput(Slider Bounds: Max)" [$item.sliderMax]
1213  set "editVarInput(Slider Bounds: Min)" [$item.sliderMin]
1214  set "editVarInput(Slider Step Size)" [$item.sliderStep]
1215  set "editVarInput(relative)" [$item.sliderStepRel]
1216 # set "editVarInput(Short description)" [$item.tooltip]
1217 # set "editVarInput(Detailed description)" [$item.detailedText]
1218  if {[minsky.value.godleyOverridden] || [inputWired [$item.valueId]]} {
1219  $editVarInput(initial_focus_value) configure -state disabled -foreground gray
1220  ::tk::TabToWindow $editVarInput(initial_focus_rotation)
1221  } else {
1222  $editVarInput(initial_focus_value) configure -state normal -foreground black
1223  ::tk::TabToWindow $editVarInput(initial_focus_value)
1224  }
1225  switch [$item.type] {
1226  "constant" -
1227  "flow" {$editVarInput(units_focus_value) configure -state disabled -foreground gray}
1228  }
1229
1230  set value "unknown"
1231  catch {set value [value.value]}
1232  set editVarInput(title) "[$item.name]: Value=$value"
1233  ensureWindowVisible .wiring.editVar
1234  grab set .wiring.editVar
1235  wm transient .wiring.editVar
1236 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ exportItemAsCSV()

exportItemAsCSV

Definition at line 864 of file wiring.tcl.

864 proc exportItemAsCSV {} {
865  global workDir
866  set f [tk_getSaveFile -defaultextension .csv -filetypes {
867  {"CSV" .csv TEXT} {"All" {.*} TEXT}
868  } -initialdir $workDir]
869  if {$f!=""} {
870  set workDir [file dirname $f]
871  eval minsky.canvas.item.exportAsCSV {$f}
872  }
873 }

◆ exportItemAsImg()

exportItemAsImg

Definition at line 875 of file wiring.tcl.

References imageFileTypes(), and renderImage().

875 proc exportItemAsImg {} {
876  global workDir type
877  set f [tk_getSaveFile -filetypes [imageFileTypes] -initialdir $workDir -typevariable type]
878  if {$f==""} return
879  set workDir [file dirname $f]
880  renderImage $f $type minsky.canvas.item
881 }
Here is the call graph for this function:

◆ findAllInstances()

findAllInstances

Definition at line 717 of file wiring.tcl.

References pack().

717 proc findAllInstances {} {
718  # check if variable selected
719  if {![llength [info commands minsky.canvas.item.valueId]]} return
720  set vid [minsky.canvas.item.valueId]
721  if {![winfo exists .instanceList[minsky.canvas.item.valueId]]} {
722  toplevel .instanceList$vid
723  listbox .instanceList$vid.listbox -listvariable .instanceList$vid.listIds -selectmode single
724  button .instanceList$vid.ok -text "OK" -command "destroy .instanceList$vid"
725  pack .instanceList$vid.listbox .instanceList$vid.ok
726  bind .instanceList$vid.listbox <Double-Button> "gotoInstance $vid"
727  }
728  global .instanceList$vid.listIds .instanceList$vid.variableList
729  set .instanceList$vid.variableList [listAllInstances]
730  set .instanceList$vid.listIds [[set .instanceList$vid.variableList].names]
731  bind .instanceList$vid <Destroy> "deleteInstance $vid"
732  raise .instanceList$vid
733 }
Here is the call graph for this function:

◆ findDefinition()

findDefinition

Definition at line 680 of file wiring.tcl.

References panCanvas().

680 proc findDefinition {} {
681  set cwidth [.wiring.canvas cget -width]
682  set cheight [.wiring.canvas cget -height]
683  if [findVariableDefinition] {
684  if {abs([minsky.canvas.item.x]-0.5*$cwidth)>0.5*$cwidth ||
685  abs([minsky.canvas.item.y]-0.5*$cheight)>0.5*$cheight} {
686  # recentre found item
687  set offsX [expr [minsky.canvas.model.x]-[minsky.canvas.item.x]+0.5*$cwidth]
688  set offsY [expr [minsky.canvas.model.y]-[minsky.canvas.item.y]+0.5*$cheight]
689  panCanvas $offsX $offsY
690  }
691  canvas.itemIndicator 1
692  } else {
693  tk_messageBox -message "Definition not found"
694  }
695 }
Here is the call graph for this function:

◆ flip_default()

flip_default

Definition at line 905 of file wiring.tcl.

905 proc flip_default {} {
906  minsky.canvas.defaultRotation [expr ([minsky.canvas.defaultRotation]+180)%360]
907 }

◆ get_pointer_x()

get_pointer_x   c

Definition at line 264 of file wiring.tcl.

Referenced by addNewGodleyItemKey(), addOperationKey(), addPlotKey(), canvasHelp(), canvasKeyPress(), hoverMouse(), hoverMouseTab(), pasteAt(), textInput(), and textOK().

264 proc get_pointer_x {c} {
265  return [expr {[winfo pointerx $c] - [winfo rootx $c]}]
266  #return [winfo pointerx $c]
267 }
Here is the caller graph for this function:

◆ get_pointer_y()

get_pointer_y   c

Definition at line 269 of file wiring.tcl.

Referenced by addNewGodleyItemKey(), addOperationKey(), addPlotKey(), canvasHelp(), canvasKeyPress(), hoverMouse(), hoverMouseTab(), pasteAt(), textInput(), and textOK().

269 proc get_pointer_y {c} {
270  return [expr {[winfo pointery $c] - [winfo rooty $c]}]
271  #return [winfo pointery $c]
272 }
Here is the caller graph for this function:

◆ gotoInstance()

gotoInstance   vid

Definition at line 704 of file wiring.tcl.

704 proc gotoInstance {vid} {
705  global .instanceList$vid.variableList
706  [set .instanceList$vid.variableList].gotoInstance [.instanceList$vid.listbox curselection]
707  canvas.requestRedraw
708 }

◆ handleEscapeKey()

handleEscapeKey

Definition at line 343 of file wiring.tcl.

343 proc handleEscapeKey {} {
344  .wiring.context unpost
345 }

◆ hoverMouse()

hoverMouse

Definition at line 226 of file wiring.tcl.

References get_pointer_x(), and get_pointer_y().

226 proc hoverMouse {} {
227  minsky.canvas.displayDelayedTooltip [get_pointer_x .wiring.canvas] [get_pointer_y .wiring.canvas]
228 }
Here is the call graph for this function:

◆ importData()

importData

Definition at line 1361 of file wiring.tcl.

1361 proc importData {} {
1362  global workDir
1363  set f [tk_getOpenFile -multiple 1 -initialdir $workDir]
1364  if [string length $f] {
1365  set workDir [file dirname $f]
1366  eval minsky.canvas.item.readData {$f}
1367  }
1368 }

◆ incrCase()

incrCase   delta

Definition at line 698 of file wiring.tcl.

698 proc incrCase {delta} {
699  set item minsky.canvas.item
700  $item.setNumCases [expr [$item.numCases]+$delta]
701  canvas.requestRedraw
702 }

◆ initRandom()

initRandom

Definition at line 1370 of file wiring.tcl.

References deiconify(), ensureWindowVisible(), and pack().

1370 proc initRandom {} {
1371  if {![winfo exists .wiring.initRandom]} {
1372  toplevel .wiring.initRandom
1373  frame .wiring.initRandom.xmin
1374  label .wiring.initRandom.xmin.label -text "min x value"
1375  entry .wiring.initRandom.xmin.entry -width 40 -justify left
1376  pack .wiring.initRandom.xmin.label .wiring.initRandom.xmin.entry -side left
1377  .wiring.initRandom.xmin.entry insert 0 "0"
1378  frame .wiring.initRandom.xmax
1379  label .wiring.initRandom.xmax.label -text "max x value"
1380  entry .wiring.initRandom.xmax.entry -width 40 -justify left
1381  pack .wiring.initRandom.xmax.label .wiring.initRandom.xmax.entry -side left
1382  .wiring.initRandom.xmax.entry insert 0 "1"
1383  frame .wiring.initRandom.numVals
1384  label .wiring.initRandom.numVals.label -text "number of samples"
1385  entry .wiring.initRandom.numVals.entry -width 40 -justify left
1386  .wiring.initRandom.numVals.entry insert 0 "100"
1387  pack .wiring.initRandom.numVals.label .wiring.initRandom.numVals.entry -side left
1388  frame .wiring.initRandom.buttonBar
1389  button .wiring.initRandom.buttonBar.cancel -text "Cancel" -command {closeEditWindow .wiring.initRandom}
1390  button .wiring.initRandom.buttonBar.ok -text "OK" -command doInitRandom
1391  pack .wiring.initRandom.buttonBar.cancel .wiring.initRandom.buttonBar.ok -side left
1392  pack .wiring.initRandom.xmin .wiring.initRandom.xmax .wiring.initRandom.numVals .wiring.initRandom.buttonBar
1393  bind .wiring.initRandom <Key-Escape> {.wiring.initRandom.buttonBar.cancel invoke}
1394  bind .wiring.initRandom <Key-Return> {.wiring.initRandom.buttonBar.ok invoke}
1395  } else {
1396  deiconify .wiring.initRandom
1397  }
1398  ensureWindowVisible .wiring.initRandom
1399  grab set .wiring.initRandom
1400  wm transient .wiring.initRandom
1401 }
Here is the call graph for this function:

◆ OKnote()

OKnote   item

Definition at line 1444 of file wiring.tcl.

References closeEditWindow().

1444 proc OKnote {item} {
1445 # minsky.canvas.$item.tooltip [.wiring.note.tooltip.entry get]
1446 # minsky.canvas.$item.detailedText [string trim [.wiring.note.text get 1.0 end]]
1447  global bookmarkCheck
1448  minsky.canvas.$item.bookmark $bookmarkCheck
1449  minsky.canvas.$item.adjustBookmark
1450  # update bounding box - see ticket #1164
1451  if [ string equal $item "item"] then {minsky.canvas.$item.updateBoundingBox}
1452  closeEditWindow .wiring.note
1453 }
Here is the call graph for this function:

◆ postNote()

postNote   item

Definition at line 1430 of file wiring.tcl.

References deiconifyNote(), and ensureWindowVisible().

Referenced by editItem().

1430 proc postNote {item} {
1431  deiconifyNote
1432  .wiring.note.tooltip.entry delete 0 end
1433 # .wiring.note.tooltip.entry insert 0 [minsky.canvas.$item.tooltip]
1434  .wiring.note.text delete 1.0 end
1435 # .wiring.note.text insert 1.0 [minsky.canvas.$item.detailedText]
1436  .wiring.note.buttons.ok configure -command "OKnote $item"
1437  global bookmarkCheck
1438  set bookmarkCheck [minsky.canvas.$item.bookmark]
1439  ensureWindowVisible .wiring.note
1440  grab set .wiring.note
1441  wm transient .wiring.note
1442 }
Here is the call graph for this function:

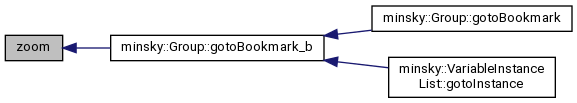

Here is the caller graph for this function:

◆ renameIntegralInstances()

renameIntegralInstances

Definition at line 672 of file wiring.tcl.

References textEntryPopup().

672 proc renameIntegralInstances {} {
673  textEntryPopup .renameDialog [minsky.canvas.item.description] {
674  canvas.renameAllInstances [.renameDialog.entry get]
675  canvas.requestRedraw
676  }
677  wm title .renameDialog "Rename [minsky.canvas.item.description]"
678 }
Here is the call graph for this function:

◆ renameVariableInstances()

renameVariableInstances

Definition at line 664 of file wiring.tcl.

References textEntryPopup().

664 proc renameVariableInstances {} {
665  textEntryPopup .renameDialog [minsky.canvas.item.name] {
666  canvas.renameAllInstances [.renameDialog.entry get]
667  canvas.requestRedraw
668  }
669  wm title .renameDialog "Rename [minsky.canvas.item.name]"
670 }
Here is the call graph for this function:

◆ rightMouseGodley()

rightMouseGodley   x y X Y

Definition at line 545 of file wiring.tcl.

References contextMenu().

545 proc rightMouseGodley {x y X Y} {
546  if [selectVar $x $y] {
547  .wiring.context delete 0 end
548  .wiring.context add command -label "Copy" -command canvas.copyItem
549  .wiring.context add command -label "Rename all instances" -command renameVariableInstances
550  .wiring.context post $X $Y
551  } else {
552  contextMenu $x $y $X $Y
553  }
554 }
Here is the call graph for this function:

◆ saveSelection()

saveSelection

Definition at line 604 of file wiring.tcl.

References fileTypes().

604 proc saveSelection {} {
605  global workDir
606  set ext [canvas.selection.defaultExtension]
607  set f [tk_getSaveFile -defaultextension $ext -initialdir $workDir \
608  -filetypes [fileTypes $ext]]
609  if [string length $f] {
610  set workDir [file dirname $f]
611  eval minsky.saveSelectionAsFile {$f}
612  }
613 }
Here is the call graph for this function:

◆ setDataValue()

setDataValue

Definition at line 1238 of file wiring.tcl.

1238 proc setDataValue {} {
1239  global constInput
1240  set item minsky.canvas.item
1241  eval [set item].description "$constInput(Name)"
1242  $item.rotation $constInput(Rotation)
1243  if [llength [info commands $item.expression]] {
1244  $item.expression $constInput(Expression)
1245  }
1246 }

◆ setIntegralIValue()

setIntegralIValue

Definition at line 1248 of file wiring.tcl.

1248 proc setIntegralIValue {} {
1249  global constInput
1250  set item minsky.canvas.item
1251  $item.description $constInput(Name)
1252  # description may have change intVar, so use value instead to set init
1253  getValue [$item.valueId]
1254  value.init $constInput(Value)
1255  value.setUnits $constInput(Units)
1256  $item.rotation $constInput(Rotation)
1257 }

◆ textInput()

textInput   char

Definition at line 434 of file wiring.tcl.

References get_pointer_x(), get_pointer_y(), and textEntryPopup().

434 proc textInput {char} {
435  if {$char==""} return
436
437  global textBuffer globals
438  #ignore anything unprintable!
439  set x [get_pointer_x .wiring.canvas]
440  set y [get_pointer_y .wiring.canvas]
441
442  set textBuffer "$char"
443  textEntryPopup .textInput $char textOK
444  .textInput.entry configure -textvariable textBuffer -takefocus 1
445  wm geometry .textInput "+[winfo pointerx .]+[winfo pointery .]"
446 }
Here is the call graph for this function:

◆ textOK()

textOK

Definition at line 449 of file wiring.tcl.

References addOperationKey(), editVar(), get_pointer_x(), and get_pointer_y().

449 proc textOK {} {
450  global textBuffer
451  grab release .textInput
452  destroy .textInput
453  canvas.moveOffsX 0
454  canvas.moveOffsY 0
455  if {[lsearch [availableOperations] $textBuffer]>-1} {
456  set subTextBuffer [string range $textBuffer 1 end]
457  if {[lsearch [availableOperations] $subTextBuffer]>-1} { # ensure that names escaped with \ can be used as ops or pars and vars as the case may be. for ticket 1291
458  addOperationKey $subTextBuffer
459  } else {
460  addOperationKey $textBuffer
461  }
462  } elseif {[llength $textBuffer]==1 && [string match "-" $textBuffer]} { # minus sign only creates subtract op. for ticket 145
463  addOperationKey subtract
464  } elseif [string match "\[%#\]*" $textBuffer] {
465  addNote [string range $textBuffer 1 end]
466  } else {
467  if [regexp "(.*)=(.*)" $textBuffer dummy name init] {
468  minsky.addVariable $name flow
469  minsky.canvas.itemFocus.init $init
470  minsky.variableValues.reset
471  # signed numbers create constant on the canvas. for ticket 145.
472  } else {
473  if [regexp "^\[+-\]?\\d*\\.?\\d+\[eE\]?\[+-\]?\\d*$" $textBuffer] {
474
475  minsky.addVariable $textBuffer constant
476  minsky.canvas.itemFocus.init $textBuffer
477  minsky.variableValues.reset
478  } else {
479  minsky.addVariable $textBuffer flow
480  }
481
482  getItemAtFocus
483  editVar
484  }
485  }
486  canvas.mouseUp [get_pointer_x .wiring.canvas] [get_pointer_y .wiring.canvas]
487 }
Here is the call graph for this function:

◆ tout()

tout   args

Definition at line 1455 of file wiring.tcl.

1455 proc tout {args} {
1456  puts "$args"
1457 }

◆ wireContextMenu()

wireContextMenu   x y

Definition at line 652 of file wiring.tcl.

652 proc wireContextMenu {x y} {
653  .wiring.context delete 0 end
654  .wiring.context add command -label Help -command {help Wires}
655  .wiring.context add command -label Description -command "postNote wire"
656  .wiring.context add command -label "Straighten" -command "minsky.canvas.wire.straighten"
657 # .wiring.context add command -label "Raise" -command "raiseItem wire$id"
658 # .wiring.context add command -label "Lower" -command "lowerItem wire$id"
659  .wiring.context add command -label "Browse object" -command "obj_browser minsky.canvas.wire.*"
660  .wiring.context add command -label "Delete wire" -command "canvas.deleteWire"
661  tk_popup .wiring.context $x $y
662 }

◆ wrapHoverMouse()

wrapHoverMouse   op x y

Definition at line 231 of file wiring.tcl.

231 proc wrapHoverMouse {op x y} {
232  after cancel hoverMouse
233  # ignore any exceptions
234  catch {minsky.canvas.$op $x $y}
235  after 3000 hoverMouse
236 }

◆ zoom()

zoom   factor

Definition at line 288 of file wiring.tcl.

References zoomAt().

Referenced by minsky::Group::gotoBookmark_b().

288 proc zoom {factor} {
289  set cbounds [minsky.model.cBounds]
290  set x0 [expr 0.5*([lindex $cbounds 0]+[lindex $cbounds 2])]
291  set y0 [expr 0.5*([lindex $cbounds 1]+[lindex $cbounds 3])]
292  zoomAt $x0 $y0 $factor
293 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ zoomAt()

zoomAt   x0 y0 factor

Definition at line 295 of file wiring.tcl.

Referenced by zoom().

295 proc zoomAt {x0 y0 factor} {
296  global preferences
297  canvas.model.zoom $x0 $y0 $factor
298  canvas.requestRedraw
299  if $preferences(panopticon) panopticon.requestRedraw
300 }
Here is the caller graph for this function:
